Installing an Icemaker (if necessary)
Wheninstallinganicemakeronthedispenser,use
a bin thermostat to control the ice level (see below).
This will prevent damage to the dispensing
mechanism.Thebracketformountingathermostatis
located in the ice bin. During the automatic agitation
cycle and while dispensing ice, ensure there is ade-
quate space between the top of the ice level and the
bottomoftheicemakersotheicecanmovewithout
obstruction.Contactyouricemakermanufacturerfor
information on a suitable bin thermostat.
! ATTENTION
Failure to use an ice bin thermostat will not only void
your IBD’s warranty but will result in the inability to
control the level of ice in the ice bin which can cause
damage to your dispenser.
! ATTENTION
1. Install the icemaker per manufacturer specications. Points
of consideration include drainage, ventilation, and drop
zones.
2. An adapter plate is required when installing an icemaker.
Contact your Sales Representative or Lancer Customer
Service for more information.
3. A bin thermostat is required in order to control the level of
ice in the dispenser (Refer to ATTENTION). Contact your
icemaker manufacturer to obtain the correct bin thermostat.
4. Bin thermostat should be a minimum of 2” below the top
edge of the dispenser. The preferred location of the bin
thermostat is on the left side wall.
4”

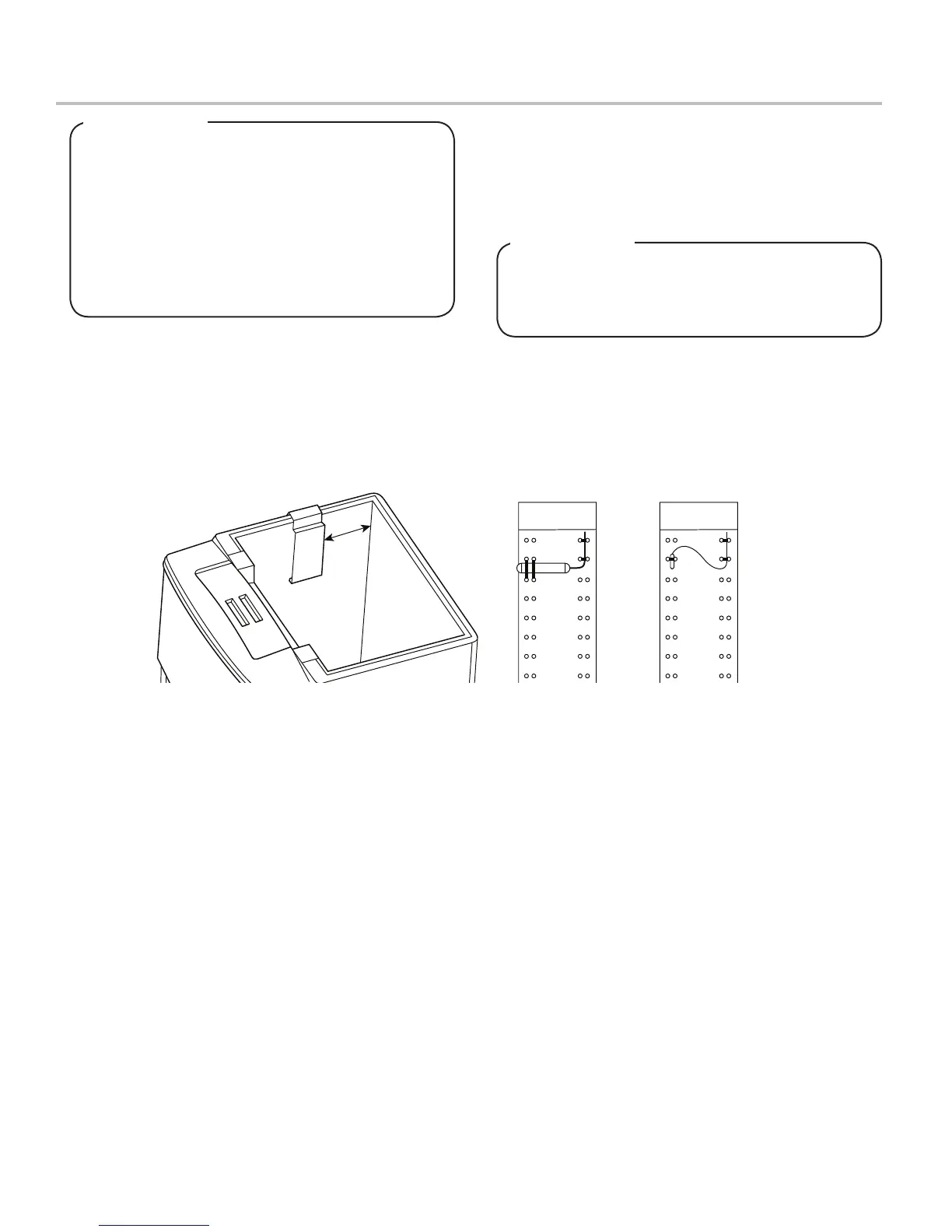

Attach Bin Stat Bracket As Shown Recommended Bin Stat Attachment
Bulb Tube
5. Ensure the icemaker is installed properly to allow for
removal of the Merchandiser.
6. Ensure manual ll is accessible.
7. Clean and maintain icemaker per manufacturer’s
instructions.
