lancer IBD 22 - Page 27

27
Item Part No. Description
1 04-0308 Screw, 10 - 32 X 0.438
2 82-1559 Faucet Plate Assy, IBD22
- 82-1631 Faucet Plate Assy, IBD30
- 82-1938 Faucet Plate Assy, 10
Valve, IBD30
3 02-0005 O-Ring, 2-010
4 06-0877 Label, Ground
5 04-1089 Screw, 10 - 32 X 1.000, RH,
PH/SL
6 04-0553 Screw, 10 - 24 X 1.75, LG.
7 82-3538 Chute Assy, Printed, Small
Dispenser, IBD
8 05-0928/02 Trap Door, IBD
9 04-0504 Screw, 8 - 18 X 0.375, PHD

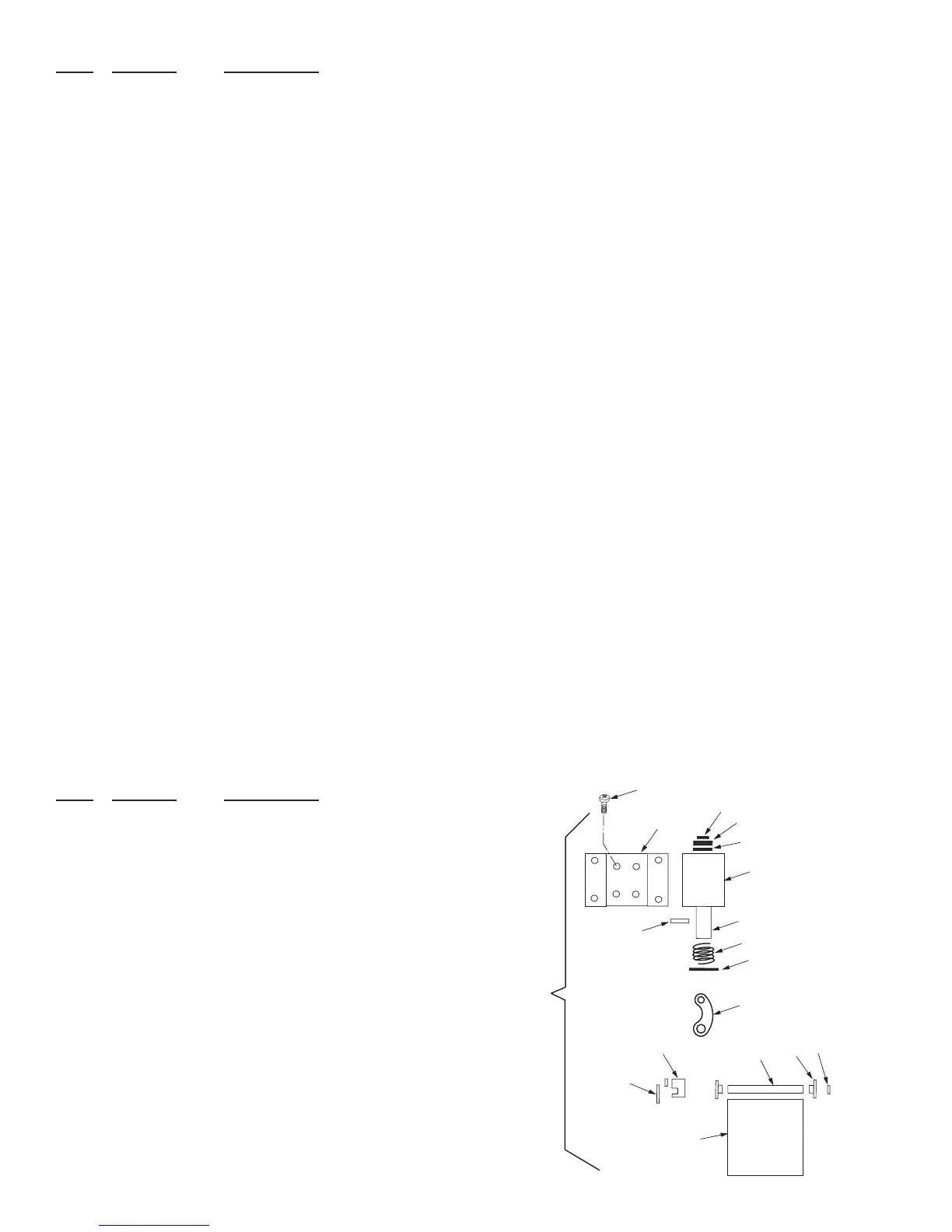

Item Part No. Description
A 03-0086 Ring, Retaining (5304-18)
B 04-0328 Washer, Rubber
C 04-0327 Washer, Flat
D 12-0195 Solenoid, D-90
E 30-5165/01 Bracket, Solenoid
F 23-1029 Plunger Assy
G 10-0496 Pin, Solenoid Assy
H 03-0110 Spring, Solenoid
I 03-0111 Ring, Retaining (5133-62)
J 10-0353 Linkage, Door, IBD
K 04-0320 Screw, 8 - 32 X 0.187, PHD
10 82-1566/01 Solenoid Assy, IBD
11 82-1551/01 Trim Assy, IBD22, Round
- 82-1618/01 Trim Assy, IBD30, Round
12 30-5876/01 Cover, Electrical Box, IBD
13 30-6145 Lock, Drip Tray, IBD
14 10-0364 Spacer, Drip Tray Lock, IBD
15 04-0529 Screw, 8 - 32 x 0.750, PH
16 10-0732 Shaft, ice Chute Door
17 05-0359 Bushing, Shaft
18 03-0113 Ring, Retaining (5144-12)
19 05-0546 Lever, Door,
20 03-0205 Ring, Retaining (5304-25)
21 12-0244 Ice Door Switch
E
A
B
C
D
F
H
I
G
J
20
19
16
17
18
8
10
K
