PLMNL0199 REV. J Effective Date: 08/05/21 48 FiberCUT
®
ST Operation Manual

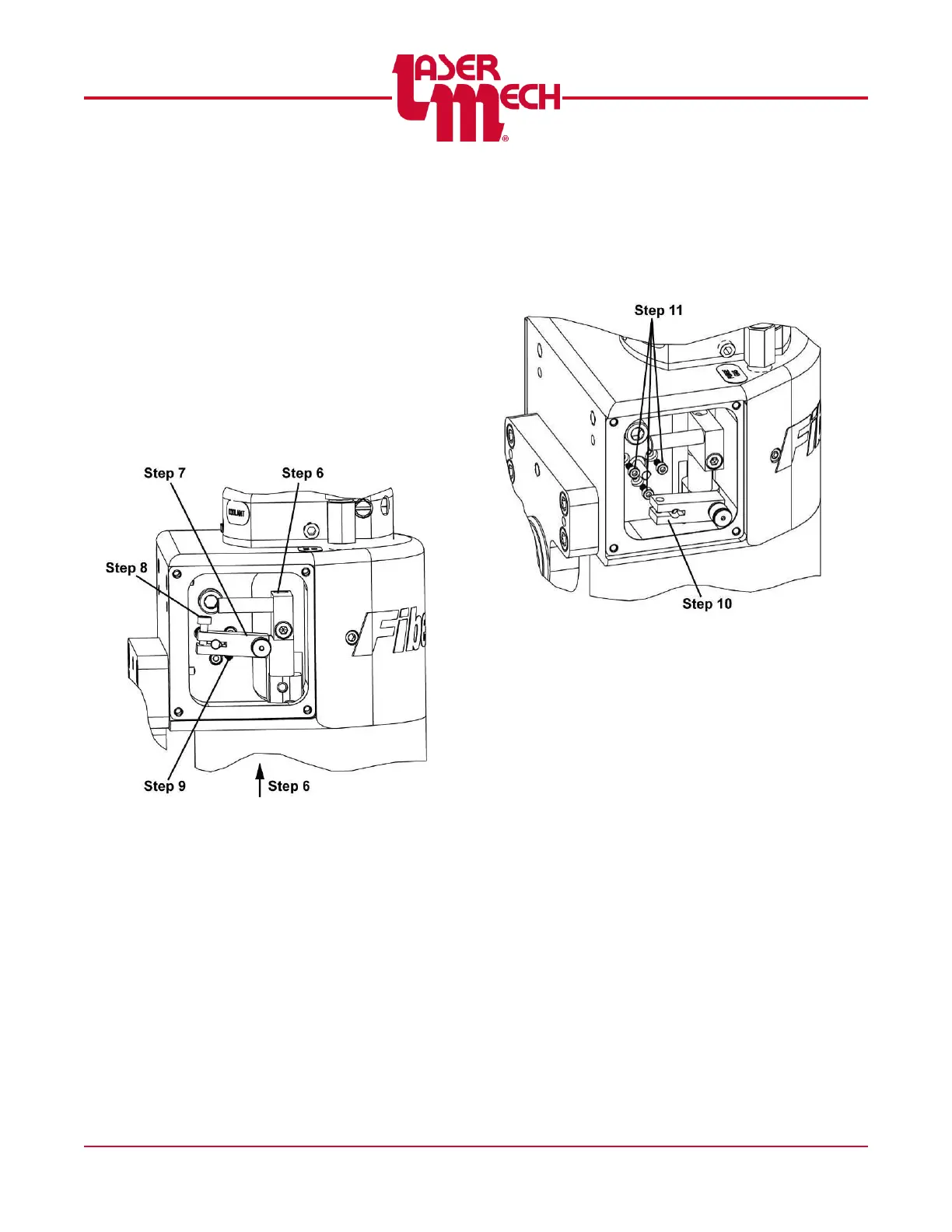

For steps 6 to 9, see Figure 59.
6. Lift up on the actuator follower block by
pushing up on the moving head slide to
allow room to remove the motor cam
arm.
7. Rotate the cam arm clockwise so that
the clamp bolt is accessible with a 2.5
mm hex wrench.
8. Loosen, but DO NOT REMOVE, the
clamp bolt from the cam arm.
9. Loosen, but DO NOT REMOVE, the
cam arm set screw. Use a 2 mm hex
wrench.
Figure 59
For steps 10 and 11, see Figure 60.
10. Pull the cam arm off of the motor.
11. Remove the (3) bolts that hold the
motor onto the FiberCUT
®
housing.
Use a 2 mm hex wrench.
Figure 60
12. Turn the FiberCUT
®
head over.
To Next Page
