PLMNL0199 REV. J Effective Date: 08/05/21 49 FiberCUT
®
ST Operation Manual

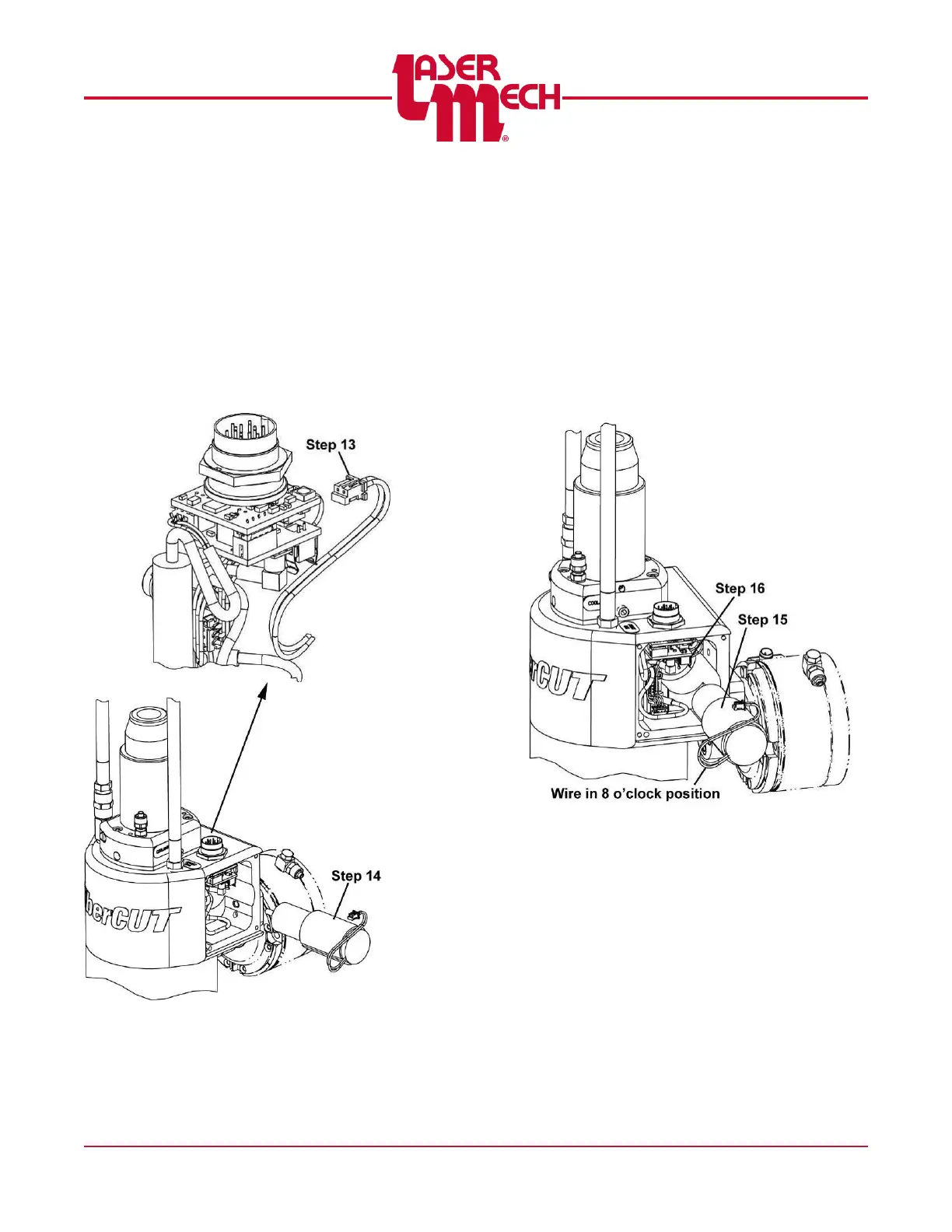

For steps 13 and 14, see Figure 61.
13. Unplug the motor cable from the height
sense card.
The cable is the 2-position
connector on the card.
14. Carefully remove the motor from the
FiberCUT
®
housing.
It may be helpful to push slightly on
the motor shaft from the other side
of the FiberCUT
®
head.
Figure 61
To reinstall the motor:
For steps 15 and 16, see Figure 62.
15. Insert the new motor into the
FiberCUT
®
body.
Place the wires out of the motor in
the 8 o’clock position as shown.
16. Connect the motor cable to the HSU
card.
A small pair of needle nose pliers
may be helpful.
Figure 62
