X-Stream Operator’s Manual

WM-OM-E Rev I 69

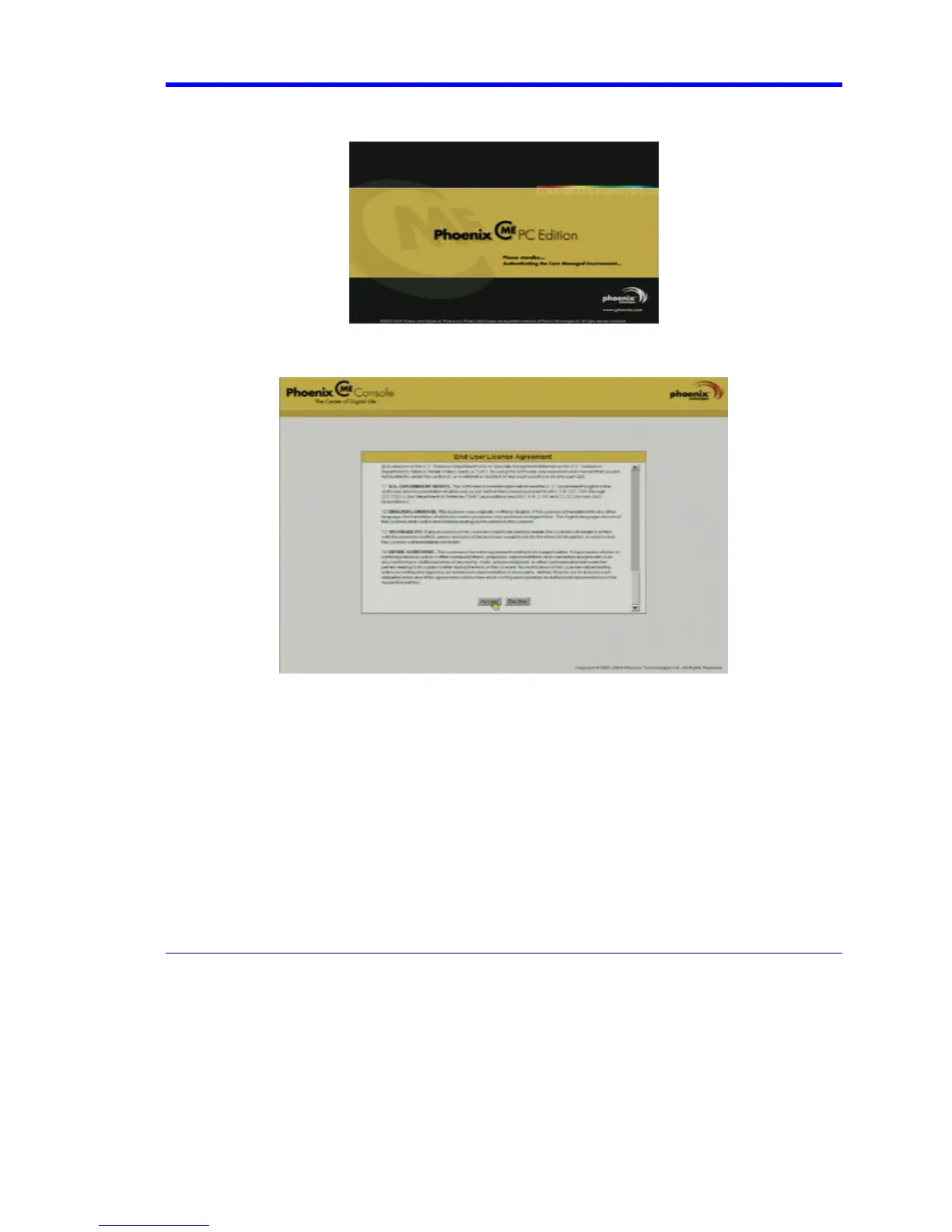

4. As soon as the LeCroy logo appears on the screen, press and hold down the F4 key until

the recovery software logo appears momentarily:

5. Then the cME console End User License Agreement is displayed. Read the agreement,

and click Accept:
