70 WM-OM-E Rev I

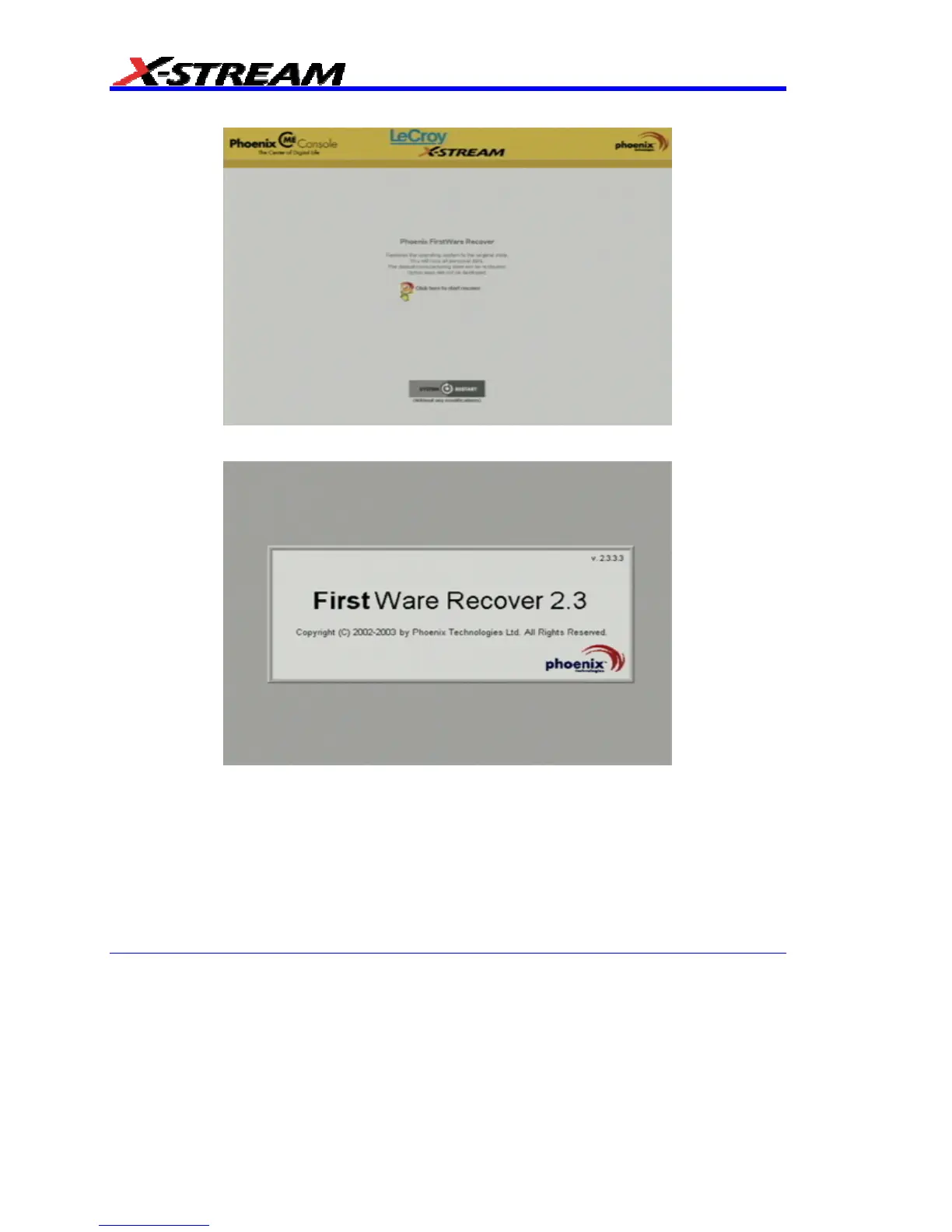

6. The Phoenix cME Console main page is displayed. Click Click here to start recover:

7. The FirstWare Recover splash screen is displayed momentarily:
