Service Manual JET3

110 Rev. 1.0

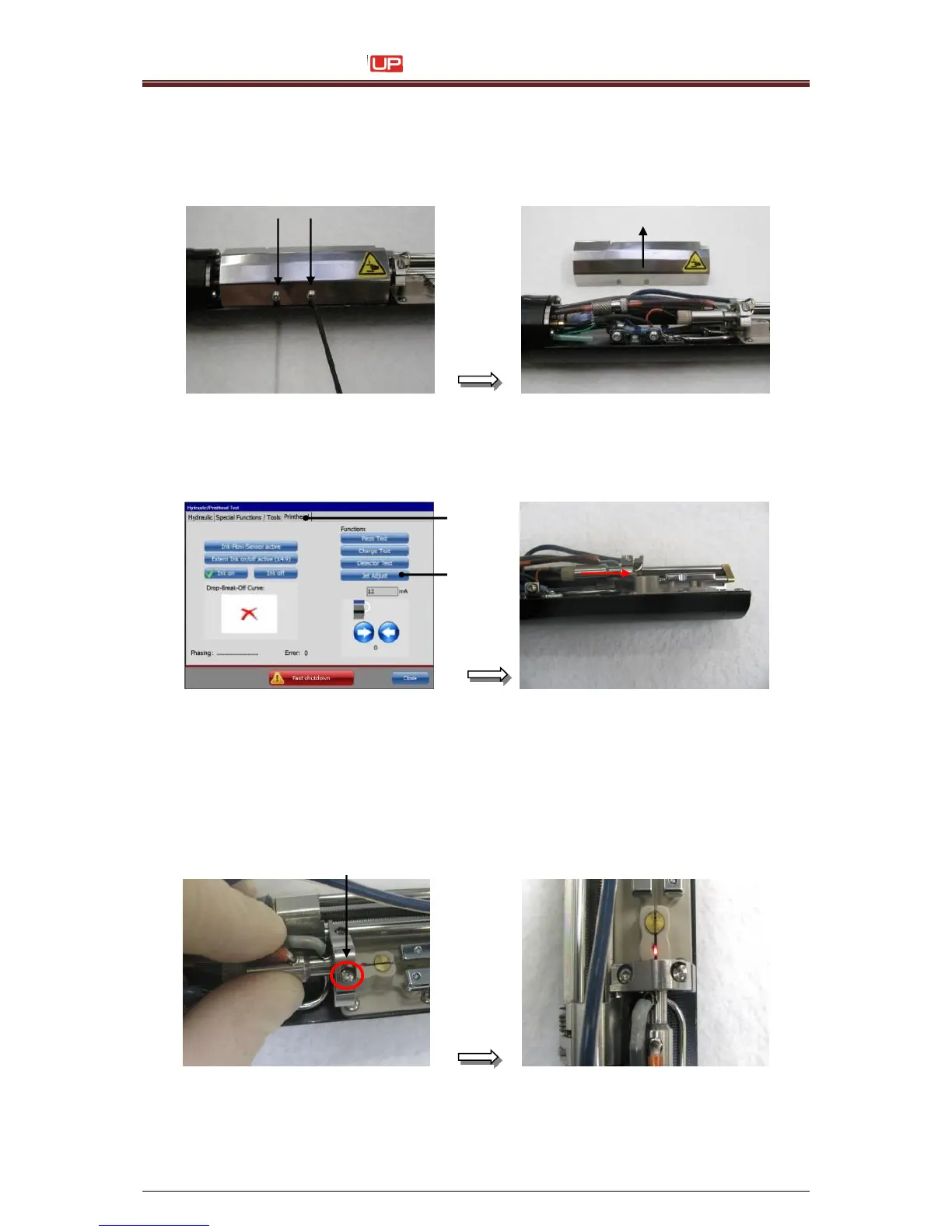

3. Remove the head cover and press the button <Jet Adjust>.

The nozzle seal opens automatically to the <Jet adjust position> (4200)

Unfix attachment screws around one rotation with hex key and take off the inside

cover.

4. Switch to the tab <Printhead> (1) and press button <Jet Adjust> (2).

The nozzle seal opens automatically to the <head adjustment position>.

1 – Menu <Printhead>

2 –Button <Jet Adjust>

5. Unfix the right attachment screw of the nozzle retainer just so far that you can adjust

the retainer manhandling. Maybe you need to unfix the second screw as well.

Caution: Use the right torx only!

Unfixing right attachment screw.
