Leibinger JET3 up - Jumper Setup; Table of Settings

Service Manual JET3
194 Rev. 1.0
Important hints of Jumper-Setup
Jumper Setup (depending of umbilical length and type of print head)
Information
After the installation of a new main board you must adjust the correct jumper
position. The jumper-position depends on: type of print head frequency of piezo
and umbilical length.
Attention !
Open the cabinet and change the jumper position only while power is
unplugged.

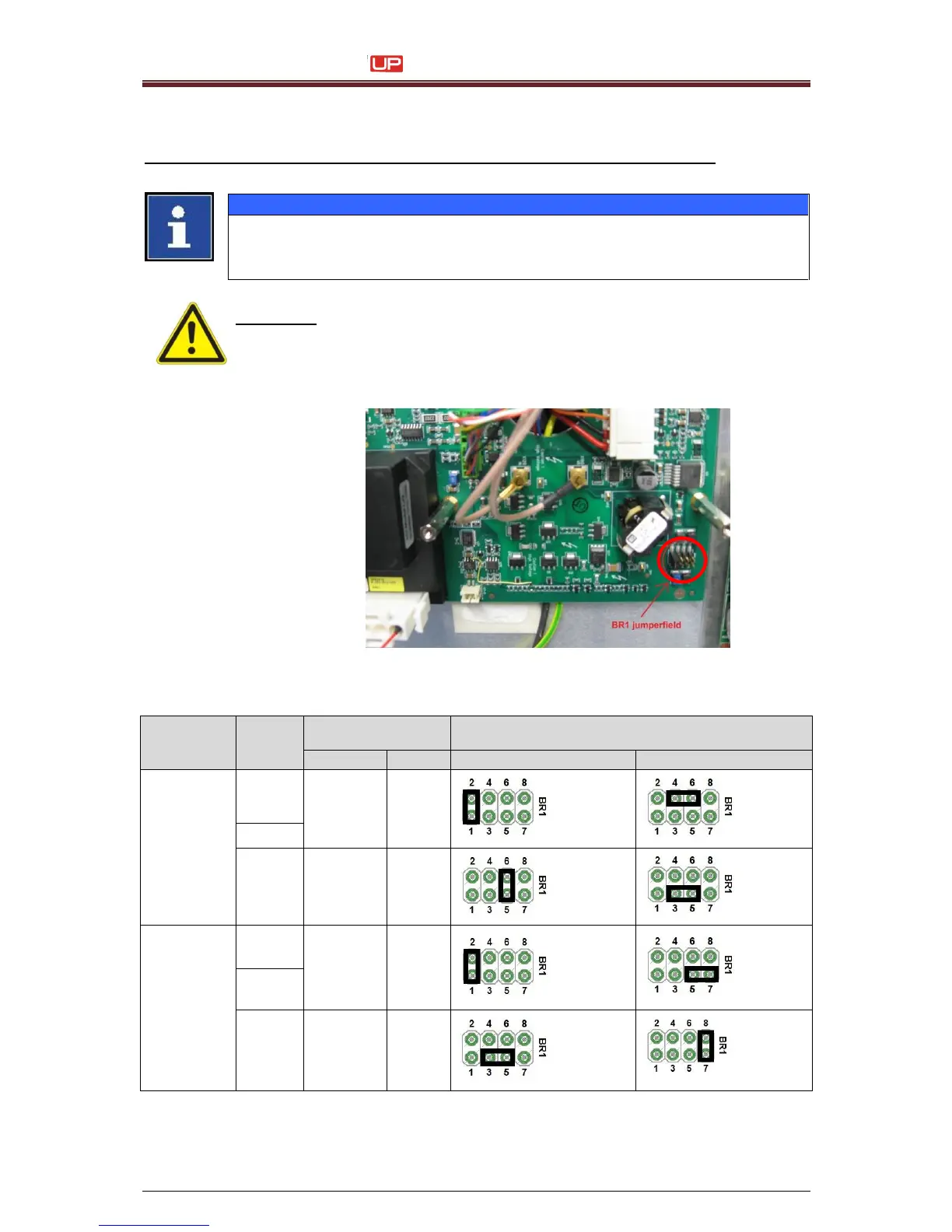

Position of the jumper-field “BR1”:
Table of settings:
Choose the correct jumper-position from the following table:
Frequency
Cable
length
Compensation
value
Jumper-position
SK4
SK6
SK4 Print head
SK6 Print head
64 kHz
3 m
None
68 µH
6 m
10 m
100 µH
43 µH
96 kHz
3 m
None
33 µH
6 m
10 m
43 µH
22 µH
