Leibinger JET3 up - Grounding Schematic; Grounding Schematic and Grounding Point; Grounding Instructions

Service Manual JET3
Rev. 1.0 25
Please note, that the grounding point (6) is hidden behind the round
grounding-symbol-label (7) on the lower left hand side of the cabinet of
the printer.

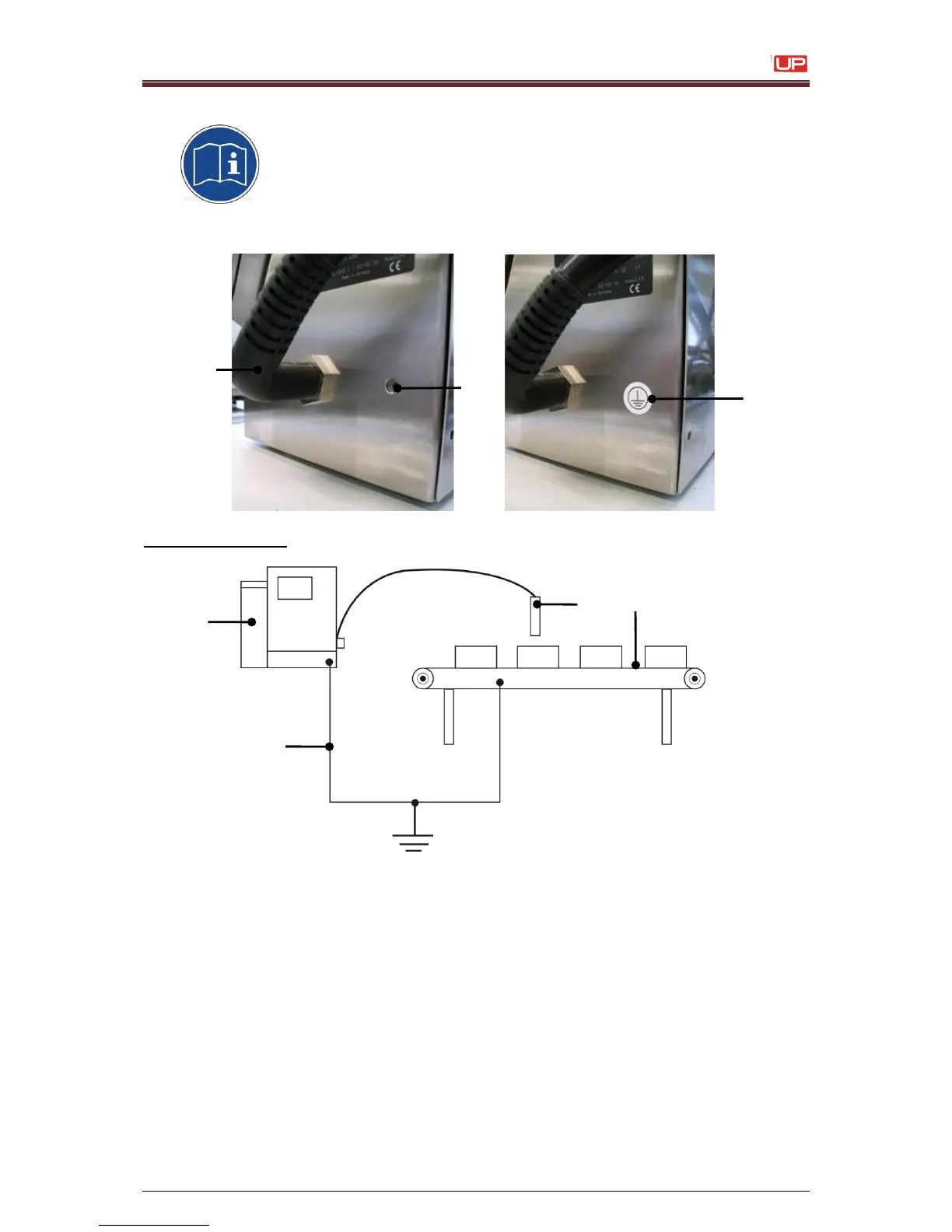

Figure 6
Grounding scematic
Grounding scematic and gounding point
1 – Printer cabinet
4 – Grounding line
7 – Grounding symbol-label
2 – Installation (machine)
5 – Umbilical
3 – Print head
6 – Grounding point (M6)
Grounding instructions
A separate grounding line (min. cable cross-section 2,00 mm
2
) to the printer cabinet
must be installed before the print head is mounted in the installation and before the
printer is plugged to the power supply.
5
7
6
1
3
2
4
Ground/earth
