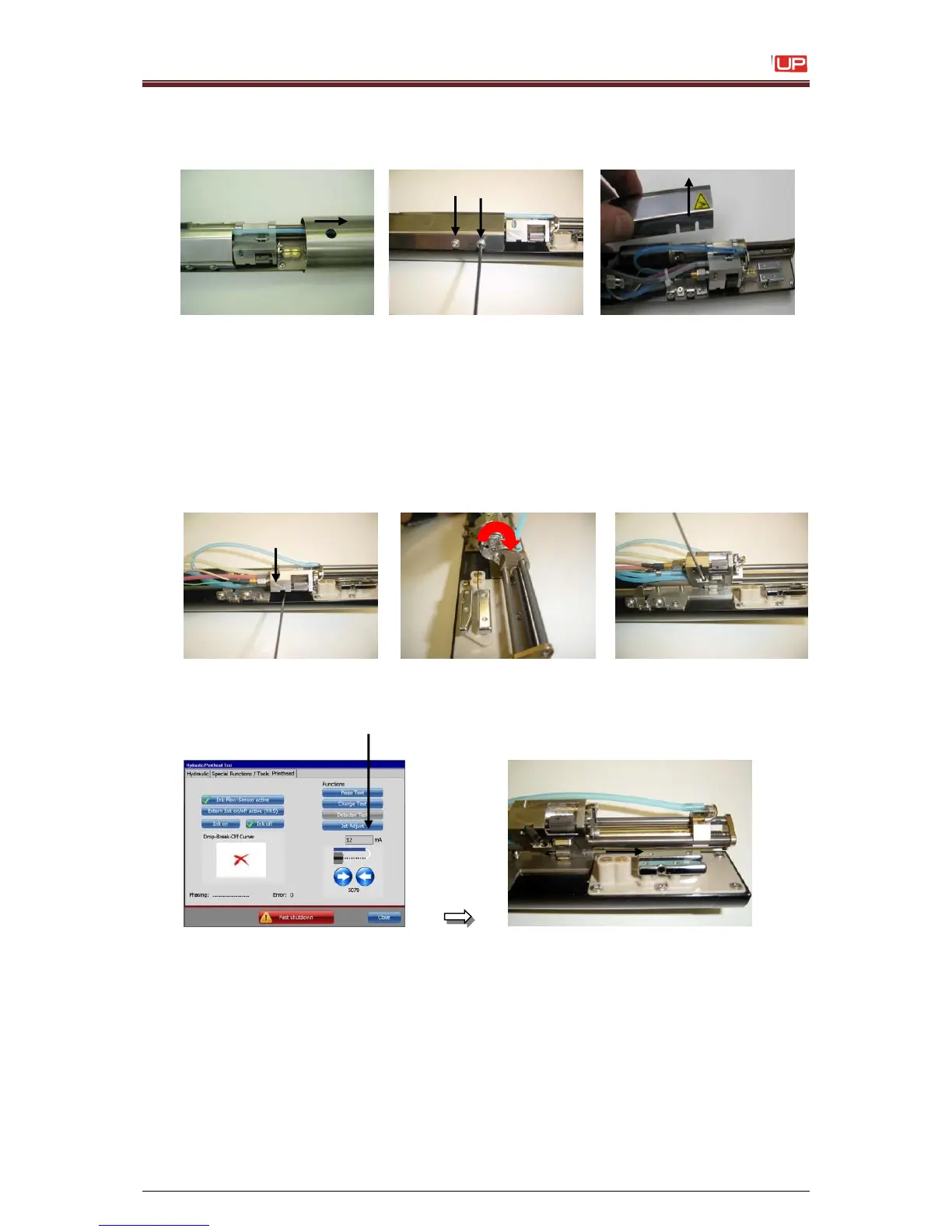

3. Remove the print head cover. Release the retaining screws with an allen key
2.5 mm (metrical) by turning about one rotation and remove the interior cover.
Attention:
It is not allowed to use ball head allen keys,
otherwise screw heads could be damaged.
4. Release the retaining screw for the swivel-unit with an allen key SW 1.5 mm
(metrical) until you can swing the swivel -unit upwards. Arrest the retaining screw
on the final position.
5. Press the button <Jet Adjust>. The nozzle seal moves automatically onto the “service
position”.
