Service Manual JET3
Rev. 1.0 73

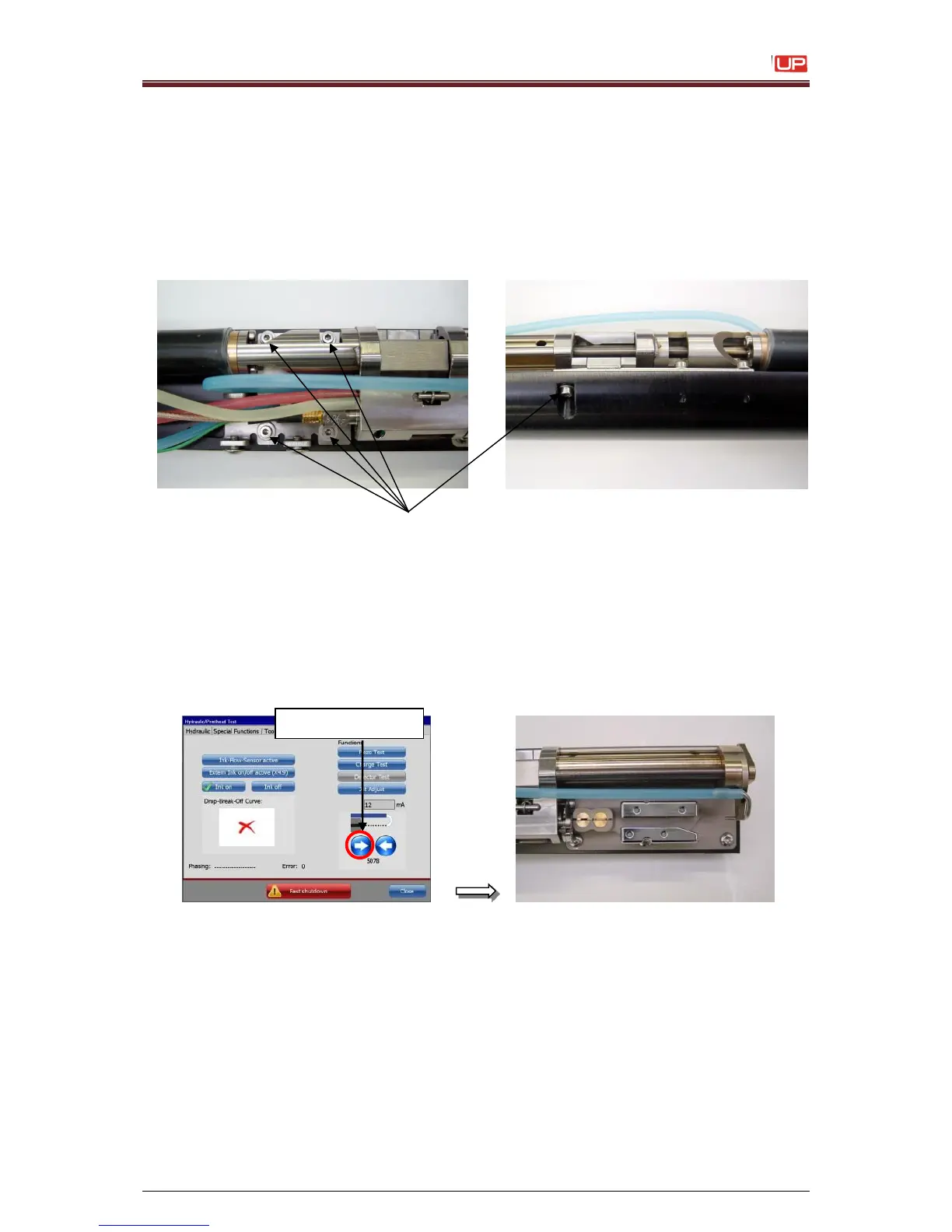

Sequence of adjustment:
- Open the 5 retaining screws of the mounting plate until the plate can be moved
lightly by hand.
- Relocate the mounting plate until the ink stream reaches the final adjustment
position.
- Tighten the retaining screws and check the jet position again.
Retaining screws (fix with Allen key (SW 1,5 mm) or Torx (T6)).
6. Open the nozzle seal completely with the <arrow> button unless the ink stream
goes inside the charging tunnel and the nozzle seal reaches the final position.
The ink stream should be concentric inside the charging tunnel and parallel to the
deflection plates. If not, readjust the position again.
