Leibinger JET3 up - Page 91

Service Manual JET3
Rev. 1.0 91

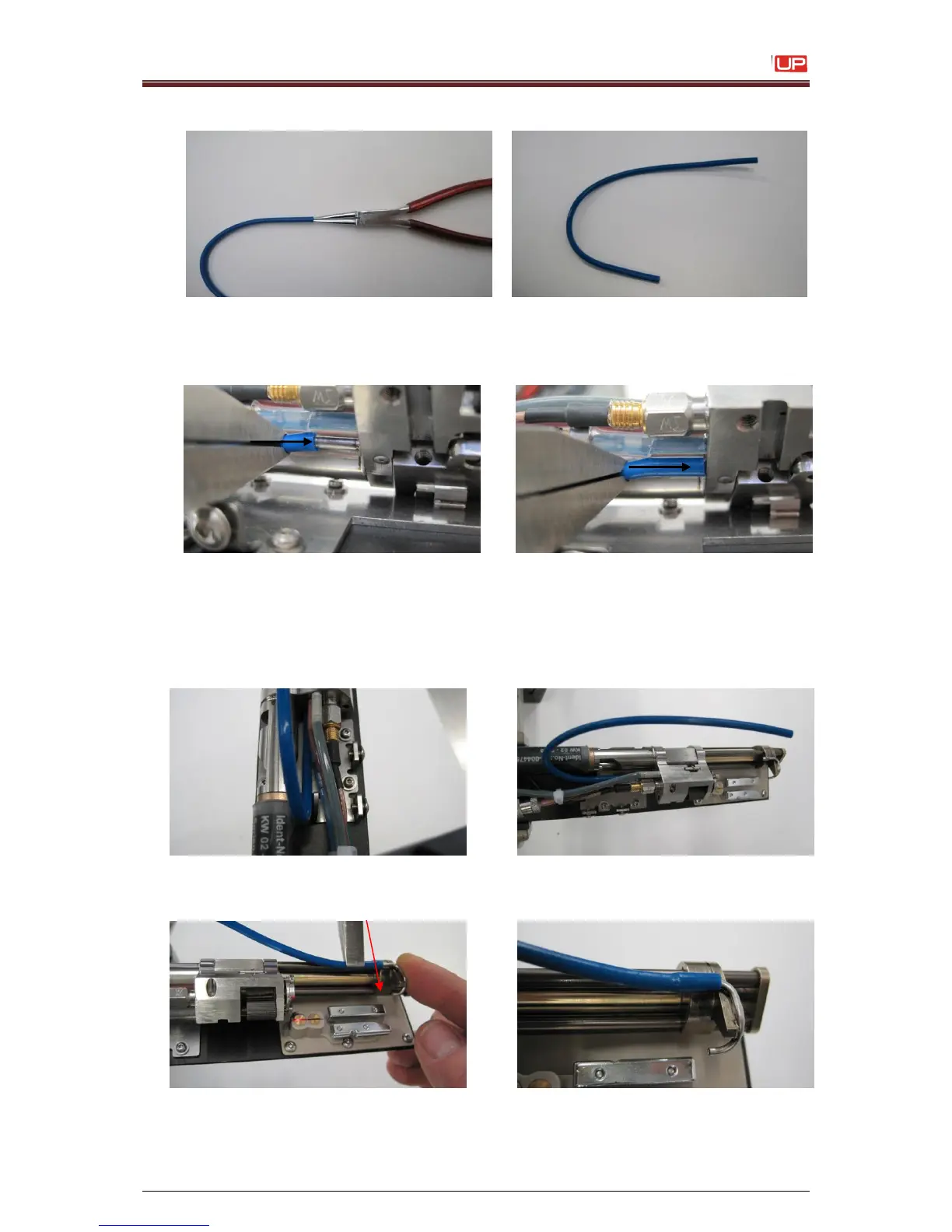

9. Widen the tube on both sides with a long-nosed pliers
10. First connect the short side of the suction tube with the drop production unit!
It is much easier to do this with the tool (tongs), which you can order from Leibinger.


11. Connect the other side from the suction tube with the gutter.
The suction tube must have a pre-bending like you can see on the picture.
Attention:
The gutter tube is only fixed by laser-welding, don’t break it!!!


Upheld the gutter with the finger, while you connect the suction tube onto the gutter!


