Service Manual JET3
Rev. 1.0 97

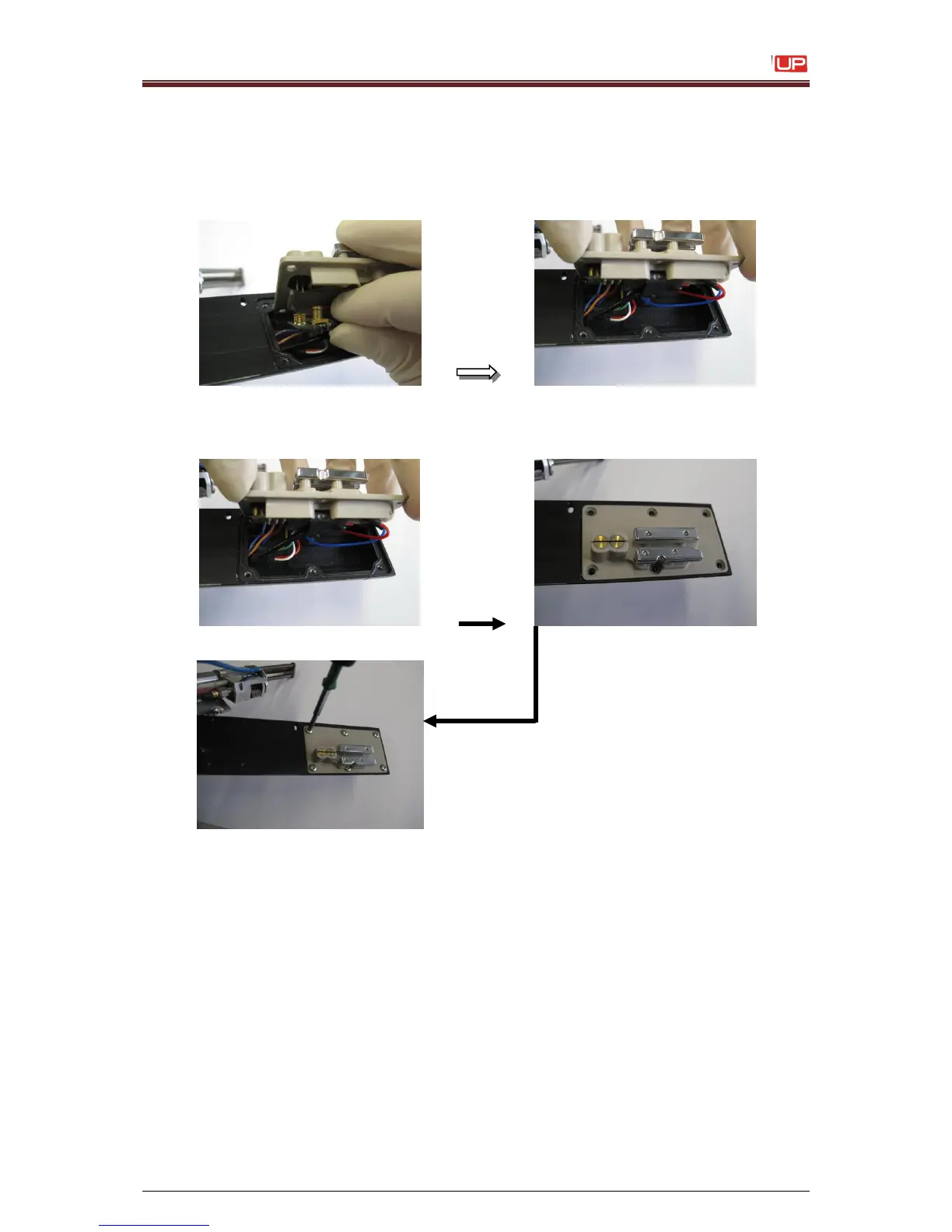

10. Connect the Charge-Board on the electrode block
Attention:
Take care that PINS not dismantle, when you connect the Charge-Board
on electrode block!
Attention:
Take care, when you put in the electrode block in the print head, that no
cable jammed!
Also take care, that all 6 torx screws fixed with a torque allen key
(inside a blade for torx T8 and 0,18Nm)!
(You will find torque allen key 55-004557K + blade for torx T8 55-004559K in
our Spare Parts and Accessories Catalog).
To Next Page
