Preparation Before Surgery
17Leica HM500/Ref. 10 715 697/Version B

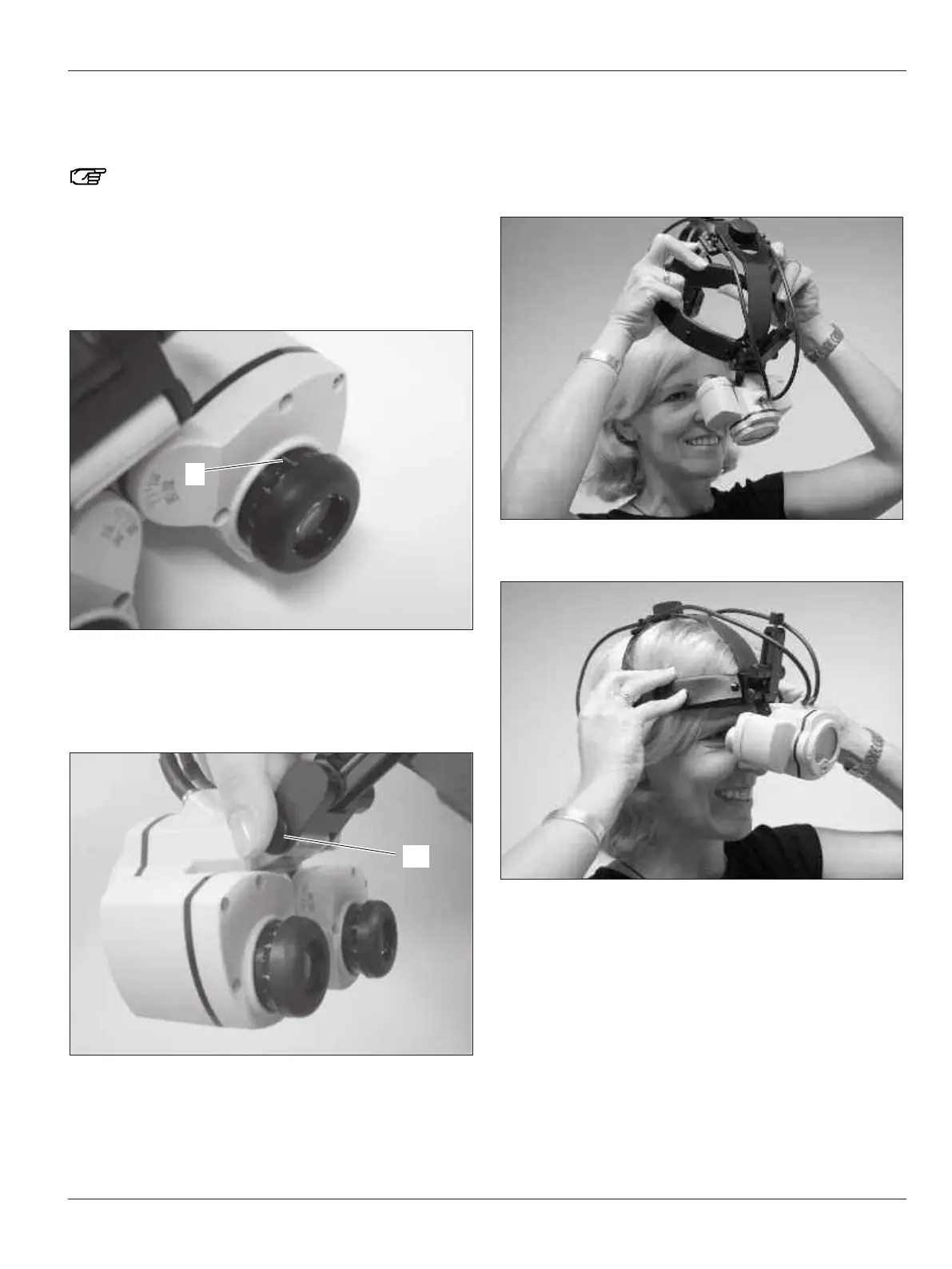

Compensating for defective vision
The Leica HM500 microscope is equipped with an eyepiece for
eyeglass wearers.
Make absolutely sure that the eyepiece is in the
0-diopter position (80) when you are wearing eye-
glasses or contact lenses!
A
lternatively, if you have defective vision in the spherical range
(nearsightedness or farsightedness) and are not wearing your
eyeglasses or contact lenses, you can adjust the eyepiece from
+7 diopters to –7 diopters to compensate.
Pre-setting the angle
➩Press the button (110) and put the microscope into one of the
three basic angle settings. The microscope clicks into posi-
tion.
Adjusting the headset
Before it is used for the first time, the headset needs to be
individually adjusted.
➩
Hold the microscope with both hands on the headset and
place on the head as shown.
➩Check the position of the microscope.
