156

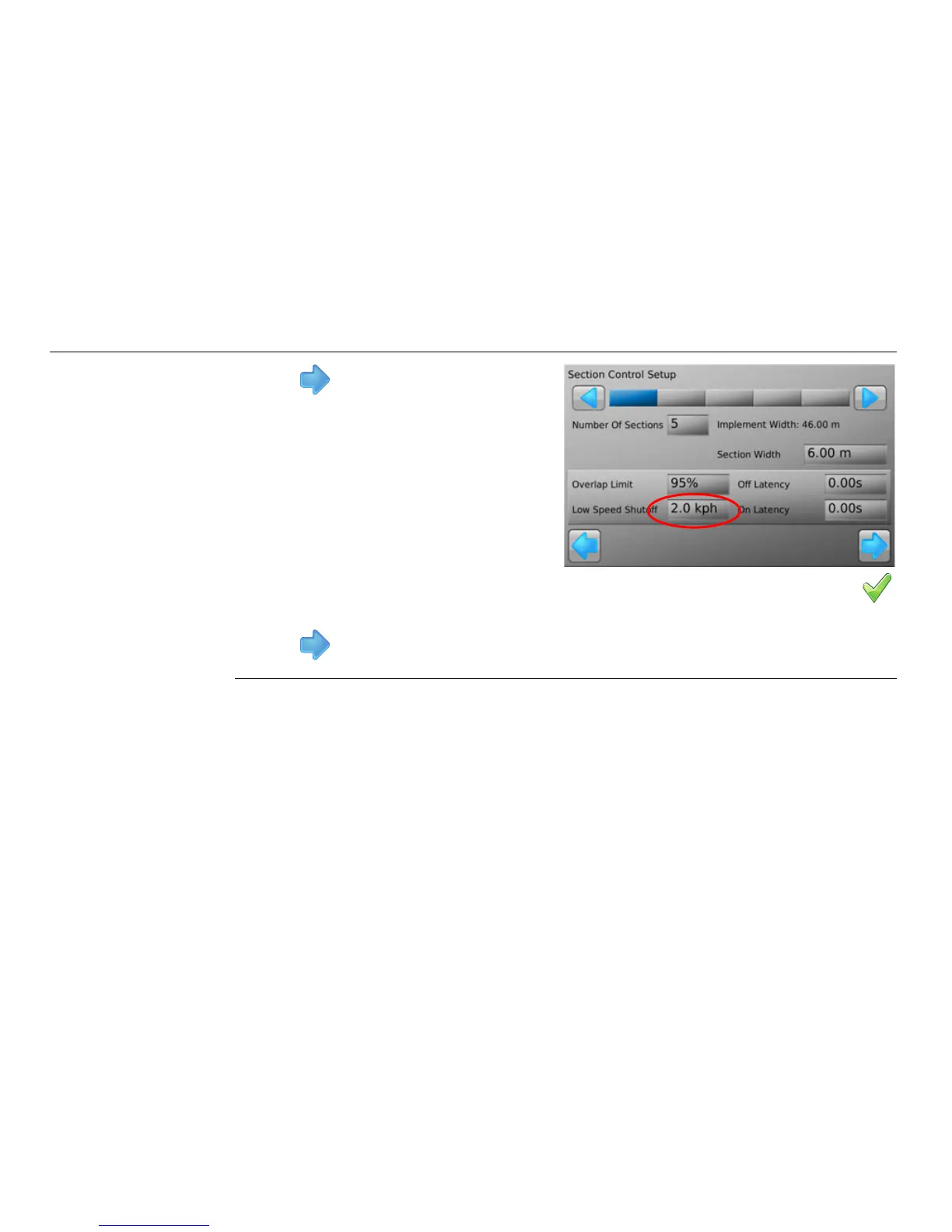

Leica mojo3D, Automatic Section Control
3.
Tap
several times until the
Section Control Setup screen is
shown.
4.
Tap the
Low Speed Shutoff value
box.
5.
Use the on–screen number
pad
to enter a value for the minimum spee
d. Tap
on the number pad when finished.
6.
Tap
to return to the main guidance screen.
