Leica mojo3D, System Installation 23
Warning Do not mount the mojo3D where it may obscure the driver’s view of the road or field.
Warning Do not mount the mojo3D where it may be struck by a deploying airbag.
Power cable instal-
lation
1. Connect the supplied power cable to a reliable power source, for example, the
vehicle’s main power system.
• Connect the red wire to a 12-volt positive source, capable of delivering a
constant 2 A.
• Connect the black wire to the vehicle’s earth.
• Optional: Connect the orange wire to the vehicles switched ignition power
source to automatically power the mojo3D on and off with the vehicle's key.
2. Route and secure all cables and wiring to ensure that there is no chafing or
rubbing, which can cause premature failure.

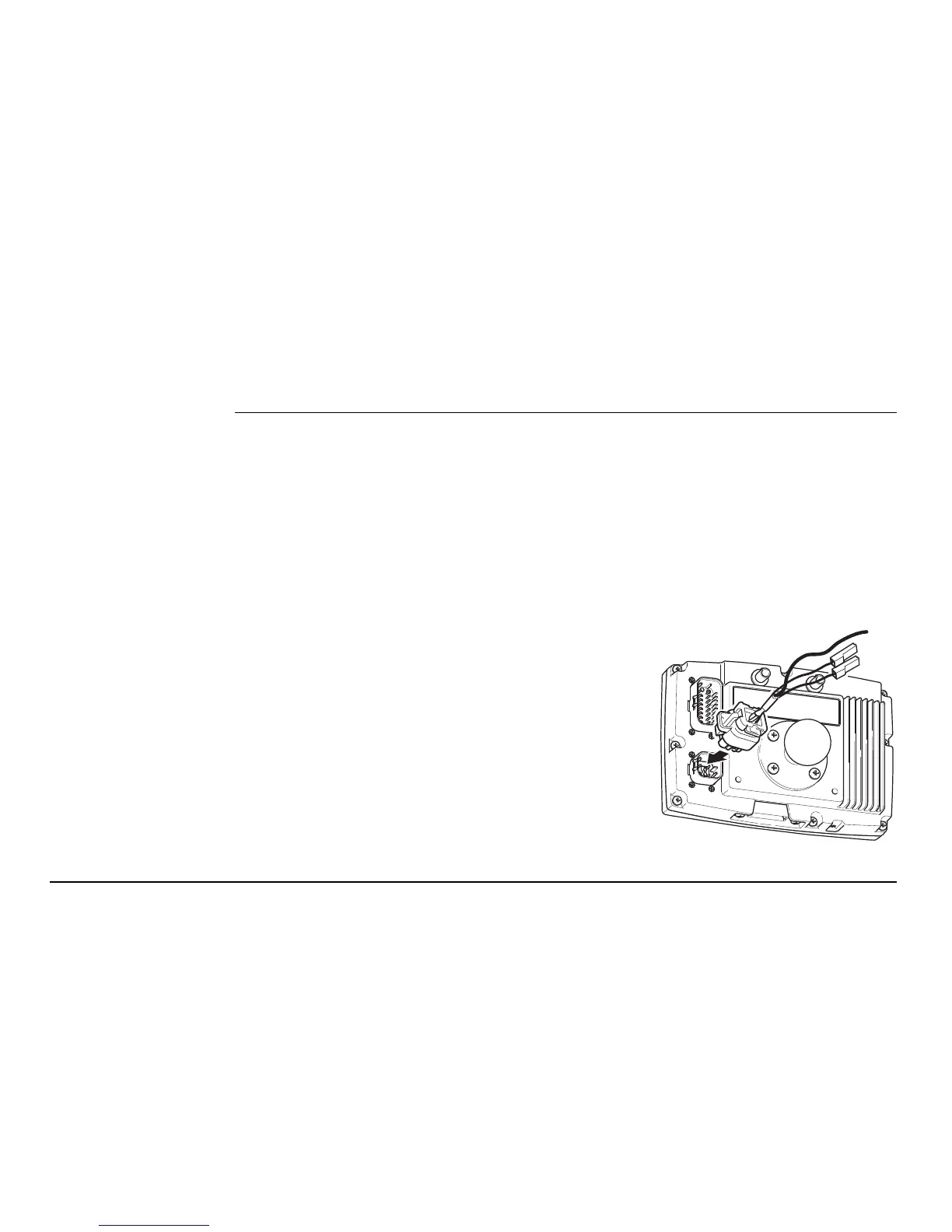

3. Connect the power cable to the power
connector on the rear of the mojo3D display.
mojo3D_007
