Leica mojo3D, mojo3D Enhancements
Prepare the
GPS antennas
1. Clean the cab roof to prepare for the installation of the GPS antennas. Approved
cleaning products are denatured alcohol and Windex
®
glass cleaner.
Start all antenna cable connections by hand before using the wrench to
tighten. Do not overtighten the cable connections. Run the threads to the
end and tighten only 1/8 turn more.
2. Connect the color coded cables to the mojoXact black (GeoPRO) and mojoXact
red antennas - black coded cable to black antenna, red to red.

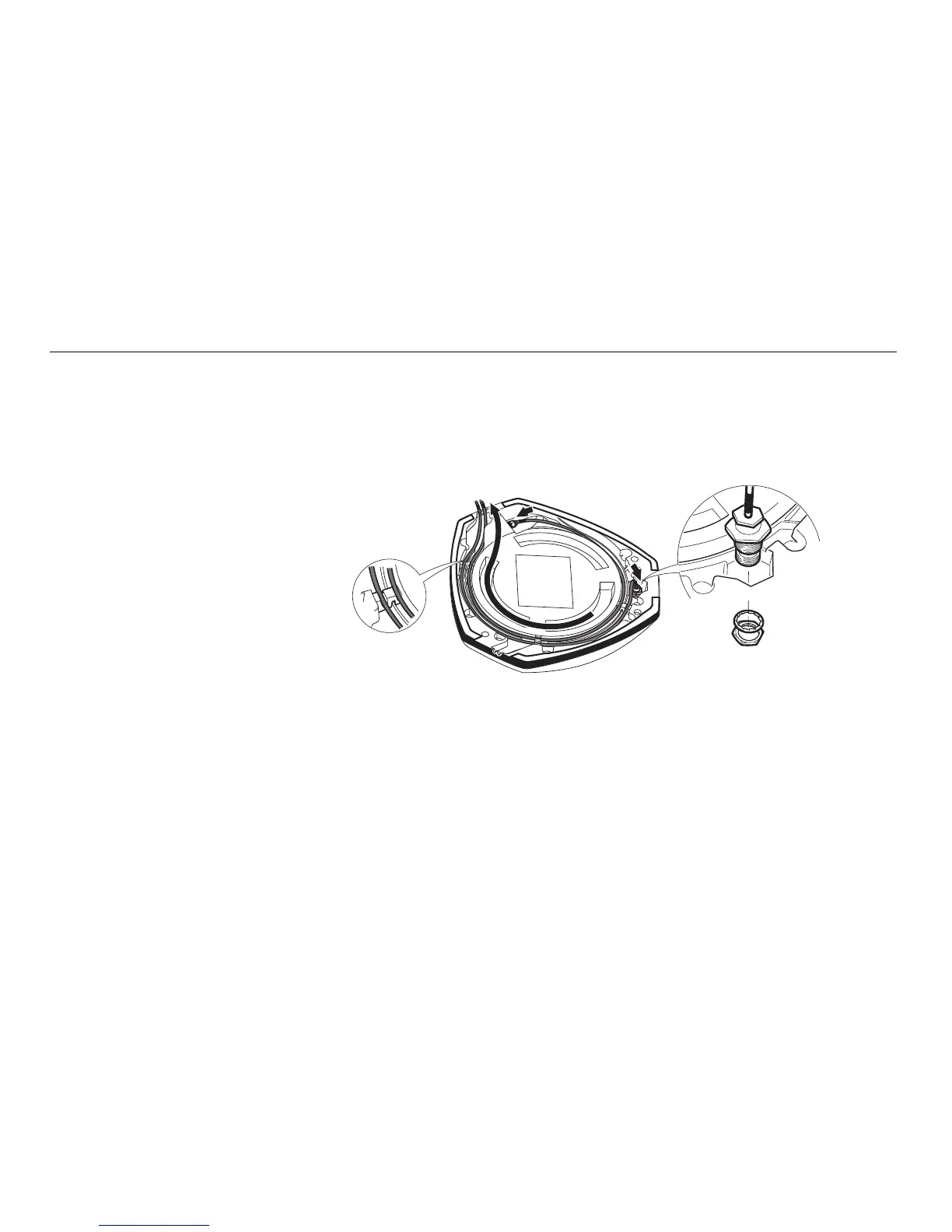

3. Insert the thread of the whip antenna cable as shown, bring on the washer and
fix with the nut. The whip antenna cables are also color coded.
4. Run the cables through the circular slot provided on the bottom side of the cover.
Align each cable with the slot and push it into the slot using the antenna cable
grommets and antenna cable supports provided.
2
3
4
5
mojo3D_022
