1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall

powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.

2.Removetheservercover.See“Removingtheservercover”onpage87.

3.Laytheserveronitssideforeasieroperation.

4.IfaPCIcardbracketassemblyisinstalledinyourserver,removethePCIcardbracketassembly.See

“RemovingandreinstallingthePCIcardbracketassembly”onpage91

.

5.LocateanappropriatePCIcardslotonthesystemboard.See“Systemboardcomponents”onpage

45toidentifythedifferenttypesofPCIcardslotsinyourserver.

6.RemovethePCIcardslotbracketbyremovingthescrewthatsecuresthemetalbracketandthenlifting

thebracketoutofthechassis.StorethePCIcardslotbracketintheeventthatyoulaterremovethePCI

cardandneedthebrackettocovertheplace.

Note:Carefullyplacetheremovedscrewaside.YouwillneedthescrewlatertosecurethePCIcardin

place.

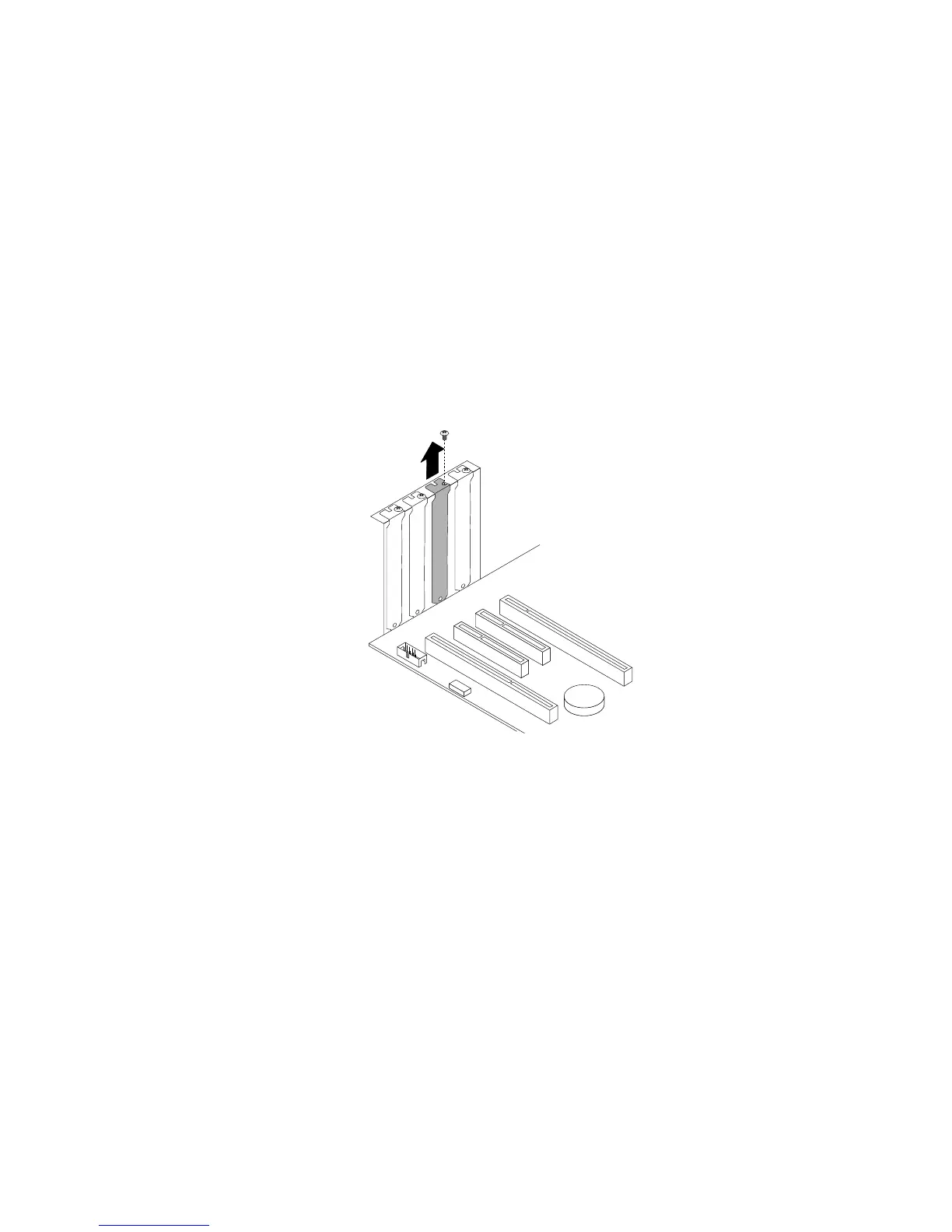

Figure46.RemovingaPCIcardslotbracket

7.Touchthestatic-protectivepackagethatcontainsthenewPCIcardtoanyunpaintedsurfaceonthe

outsideoftheserver.Then,takethenewPCIcardoutofthepackage.

Note:CarefullyhandlethePCIcardbyitsedges.

Chapter6.Installing,removing,orreplacinghardware99
