6.Locatetheappropriatememorymodulethatyouwanttoremoveandopentheretainingclipsonboth

endsofthememoryslot.Then,graspthememorymodulebyitsedgesandcarefullypullitstraight

uptoremoveitfromthememoryslot.

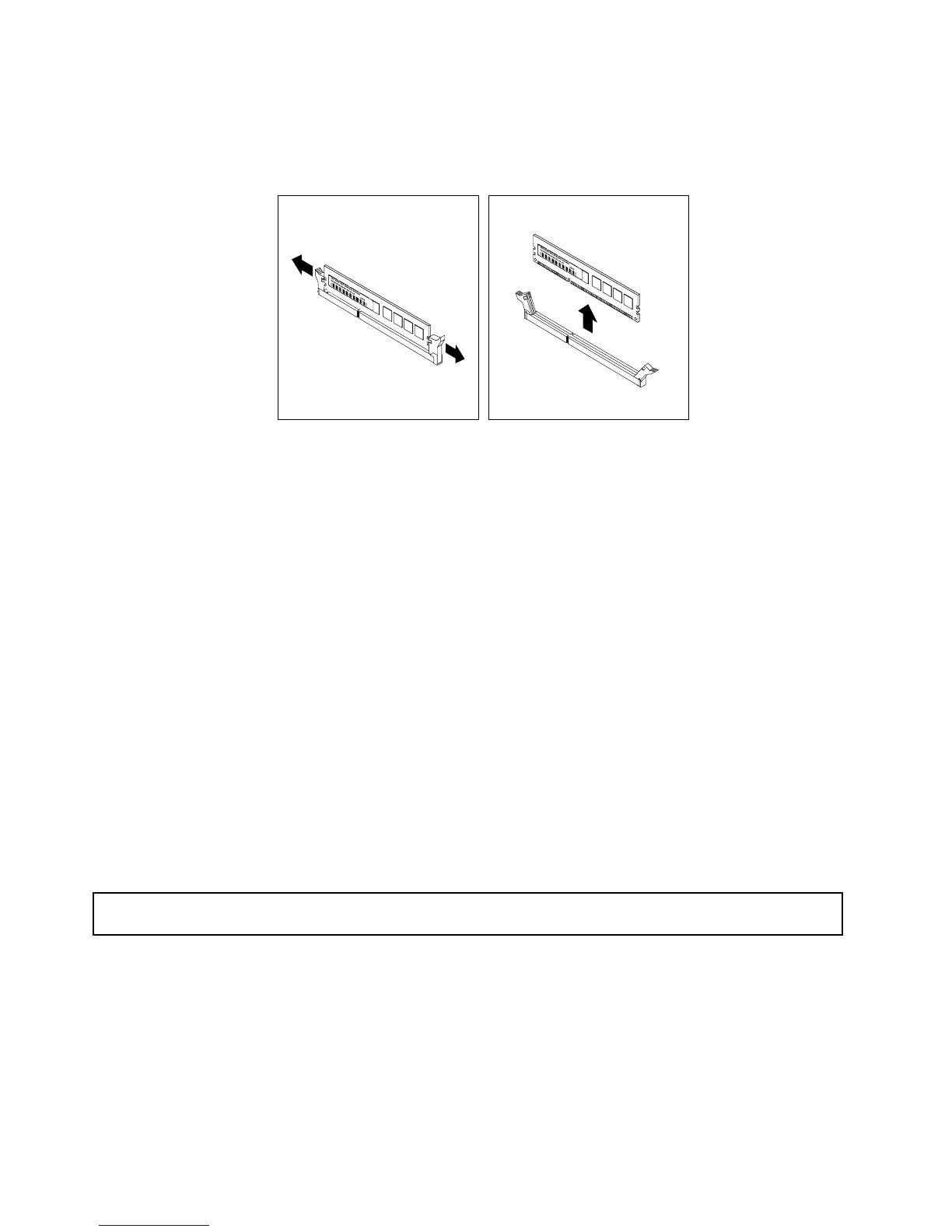

Figure45.Removingamemorymodule

7.Ifyouareinstructedtoreturntheoldmemorymodule,followallpackaginginstructionsanduseany

packagingmaterialsthataresuppliedtoyouforshipping.

Whattodonext:

•Toworkwithanotherpieceofhardware,gototheappropriatesection.

•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage170

.

InstallingorremovingaPCIcard

ThistopicprovidesinstructionsonhowtoinstallorremoveaPCIcard.

TheEMIintegrityandcoolingoftheserverareprotectedbyhavingalldrivebaysandPCIcardslotscovered

oroccupied.WhenyouinstallaninternaldriveorPCIcard,savetheEMIshieldordrivebayllerfromthe

drivebayorsavethePCIcardslotbracketintheeventthatyoulaterremovethedevice.

Attention:AnunoccupieddrivebayorPCIcardslotwithoutcover,shield,ller,oranyotherprotectionmight

impacttheEMIintegrityandcoolingoftheserver,whichmightresultinoverheatingorcomponentdamage.

Note:ThePCIcardsareextremelysensitivetoESD.Makesurethatyoureadandunderstand“Handling

static-sensitivedevices”onpage86rstandcarefullyperformtheoperation.

InstallingaPCIcard

Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”

onpageiiiand“Guidelines”onpage85.

ThistopicprovidesinstructionsonhowtoinstallaPCIcard.

Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother

computerforreference.

Note:UseanydocumentationthatcomeswiththePCIcardandfollowthoseinstructionsinadditionto

theinstructionsinthistopic.

ToinstallaPCIcard,dothefollowing:

98ThinkServerTS430UserGuide
