8.PositionthenewPCIcardonthePCIcardslotforwhichyouhaveremovedtheslotbracketandthen

carefullypressthePCIcardstraightdownuntilitissecurelyseatedintheslot.Installthescrewto

securethePCIcardinplace.

Note:YourPCIcardmightlookdifferentfromthefollowingillustrationdependingonthespecictype.

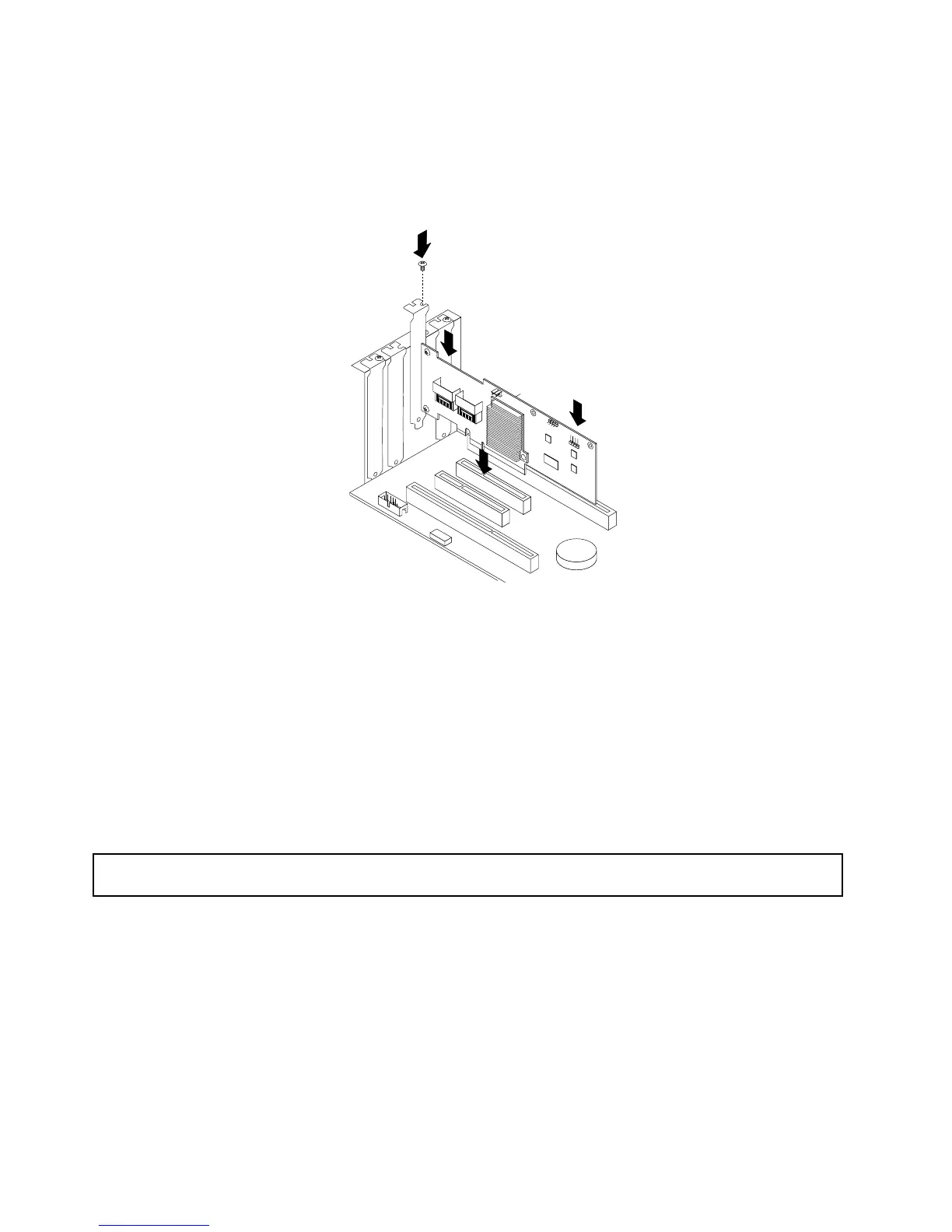

Figure47.InstallingaPCIcard

9.DependingonthetypeofthePCIcard,youmightneedtoconnectanyrequiredcables.Refertothe

documentationthatcomeswiththePCIcardforspecicinformation.

10.InstallthePCIcardbracketassemblyifaRAIDcardisinstalledinyourserver.See“Removingand

reinstallingthePCIcardbracketassembly”onpage91

.

Whattodonext:

•Toworkwithanotherpieceofhardware,gototheappropriatesection.

•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage170.

RemovingaPCIcard

Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”

onpageiiiand“Guidelines”onpage85.

ThistopicprovidesinstructionsonhowtoremoveaPCIcard.

Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother

computerforreference.

Note:UseanydocumentationthatcomeswiththePCIcardandfollowthoseinstructionsinadditionto

theinstructionsinthistopic.

ToremoveaPCIcard,dothefollowing:

1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall

powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.

100ThinkServerTS430UserGuide
