2.Removetheservercover.See“Removingtheservercover”onpage87.
3.Laytheserveronitssideforeasieroperation.
4.LocatetheTPMconnectoronthesystemboardandthenremovetheTPMmoduleinstalledonthe
TPMconnectorbyliftingitstraightup.
Note:CarefullyhandletheTPMmodulebyitsedges.

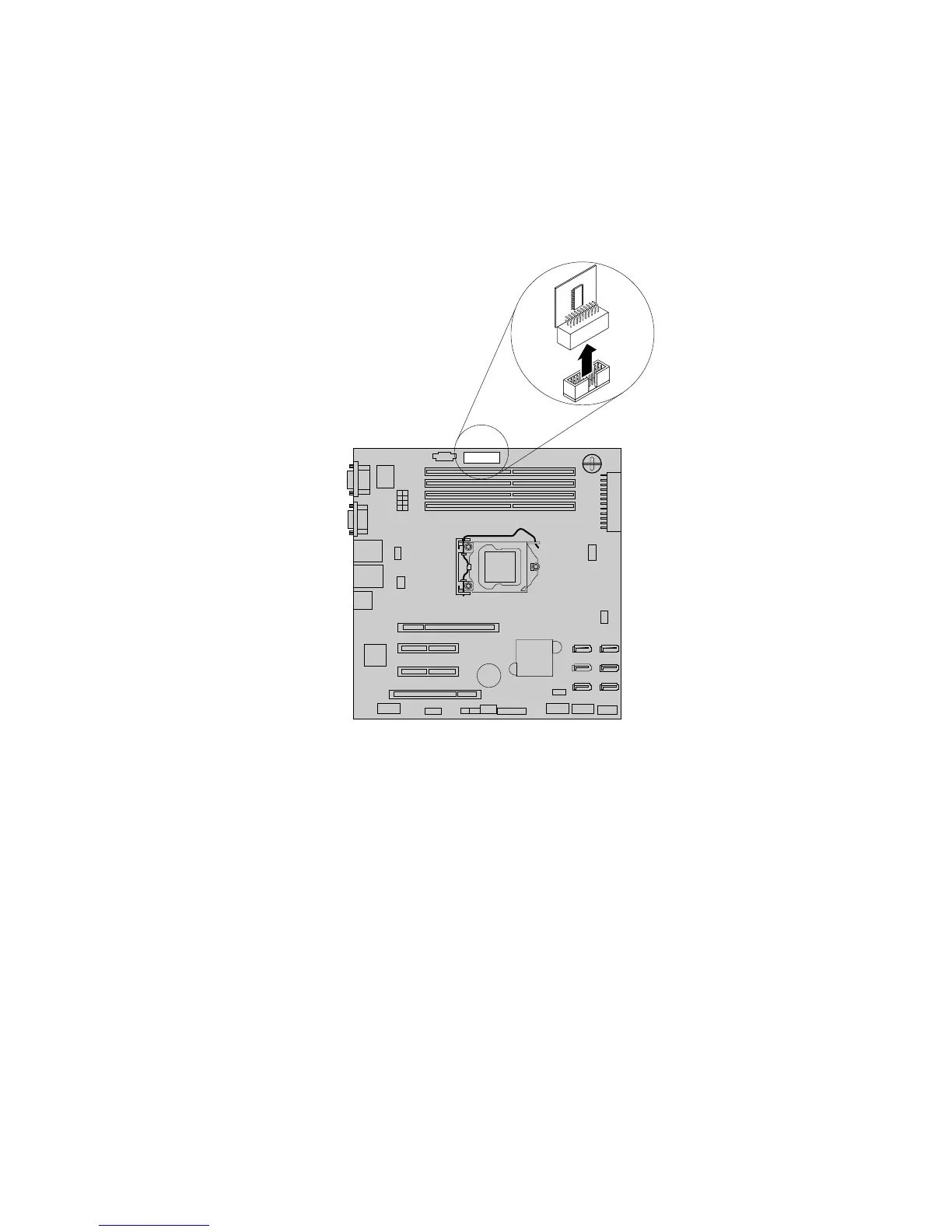

Figure58.RemovingtheTPMmodule
5.IfyouareinstructedtoreturntheoldTPMmodule,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage170.
InstallingorremovingtheIntelligentDiagnosticsModule
ThistopicprovidesinstructionsonhowtoinstallorremovetheIntelligentDiagnosticsModule.
TheIntelligentDiagnosticsModule,whichisonlyavailableinsomemodels,providesdiagnosticLEDs
throughtheIDMpaneltohelpyoueasilyidentifyaproblem.ThediagnosticLEDsontheIDMpanelalso
varydependingontheinstalledpowersupply.Formoreinformation,see“IntelligentDiagnosticsModule”
onpage18
.
Chapter6.Installing,removing,orreplacinghardware119
