Page 125
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Viewing and Changing Device Properties

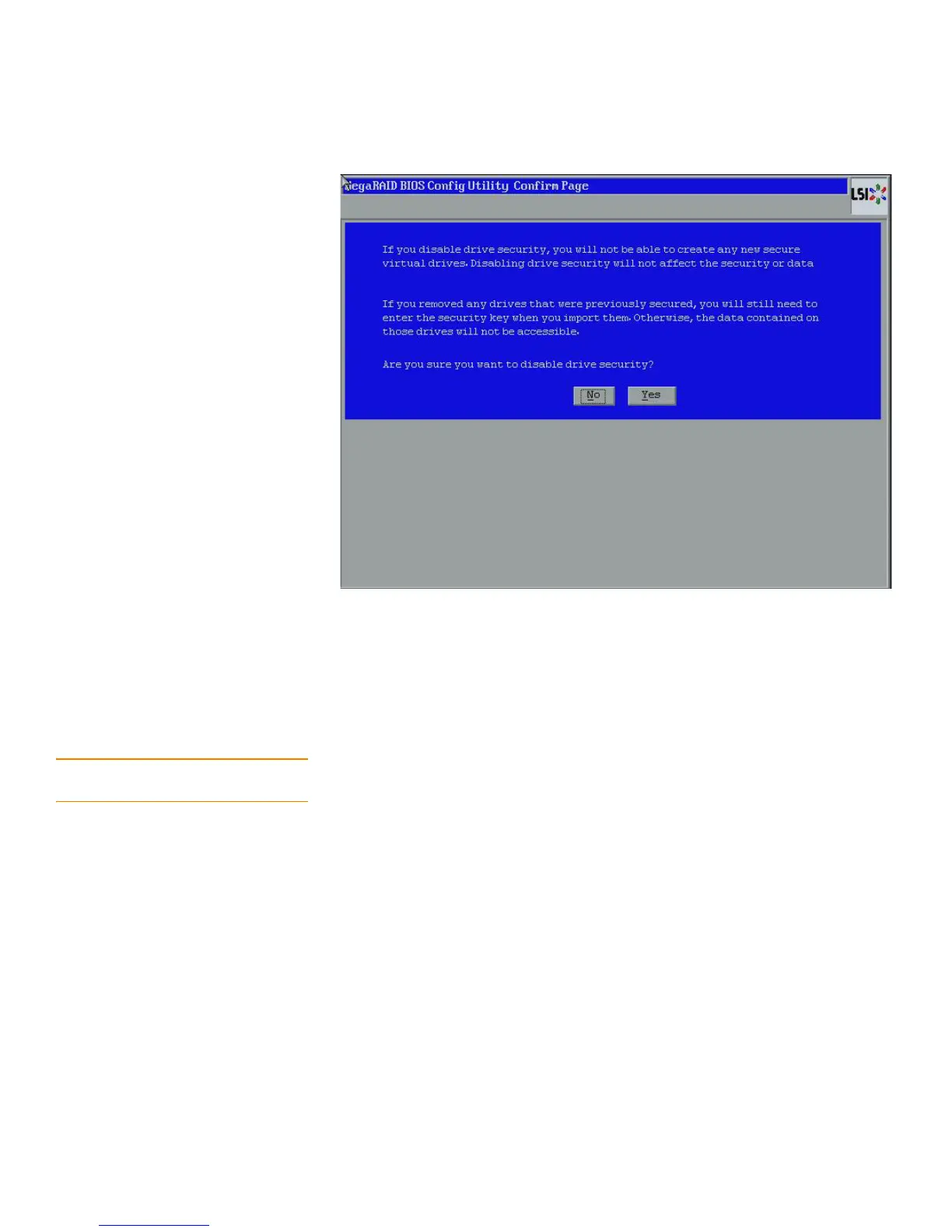

Figure 81: Confirm Disable Drive Security Settings
3. On the Confirm Disable Security Settings screen, click Ye s to confirm that you want
to disable the drive security settings.
WebBIOS returns you to the MSM main menu.
4.8 Viewing and Changing
Device Properties
This section explains how you can use the WebBIOS CU to view and change the
properties for controllers, virtual drives, drives, and BBUs.
4.8.1 Viewing Controller Properties WebBIOS displays information for one SAS controller at a time. If your computer
system has multiple SAS controllers, you can view information for a different
controller by clicking Controller Selection on the main screen. When the Controller
Selection screen appears, select the controller you want from the list.
Follow these steps to view the properties of the currently selected controller.
1. Click Controller Properties on the main WebBIOS screen.
There are three Controller Properties screens. Figure82 shows the first screen.
To Next Page
