3.Thenon-hot-swapharddiskdrive(s)areinstalledinthelowerharddiskdrivecageandareprotected
byanEMI-protectivepanel.Pressthesmalltab1ontheEMI-protectivepanelfromthebottomand
thenpivottheEMI-protectivepanelupwardtoremoveitfromthechassisandgainaccesstothe
non-hot-swapharddiskdrivebays.
CPU
MEM
PSU
CPU
MEM
PSU
1
2

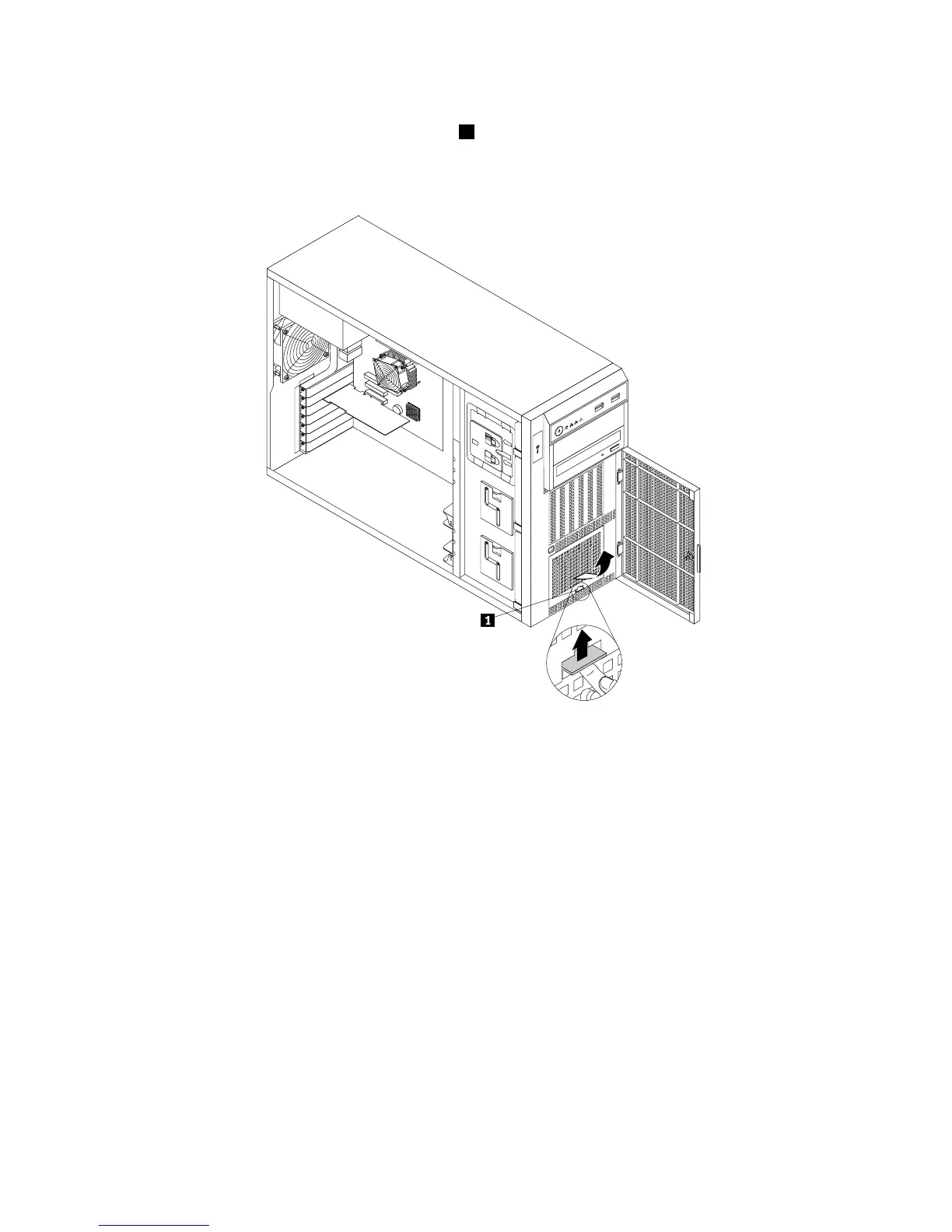

Figure75.RemovingtheEMI-protectivepanel
4.Removetheservercover.See“Removingtheservercover”onpage87.
5.Removethefrontsystemfan1.See“Replacingthefrontsystemfan”onpage157.
6.Locatetheappropriatenon-hot-swapharddiskdrivebay.See“Servercomponents”onpage25.
7.Touchthestatic-protectivepackagethatcontainsthenewnon-hot-swapharddiskdrivetoany
unpaintedsurfaceontheoutsideoftheserver.Then,takethenewnon-hot-swapharddiskdriveand
thesignalcableoutofthepackage.
Note:Donottouchthecircuitboardontheharddiskdrive.
138ThinkServerTS430UserGuide
