calledjumperblocks.Whentwoormorejumperpinsarecappedwithajumper,anelectricalconnectionis

madebetweenthemandtheequipmentisthusinstructedtoactivatecertainsettingsaccordingly.

Thefollowingillustrationshowsajumperinthedefaultsettingposition(pin1andpin2).Thisisthecorrect

positionfornormaloperation.

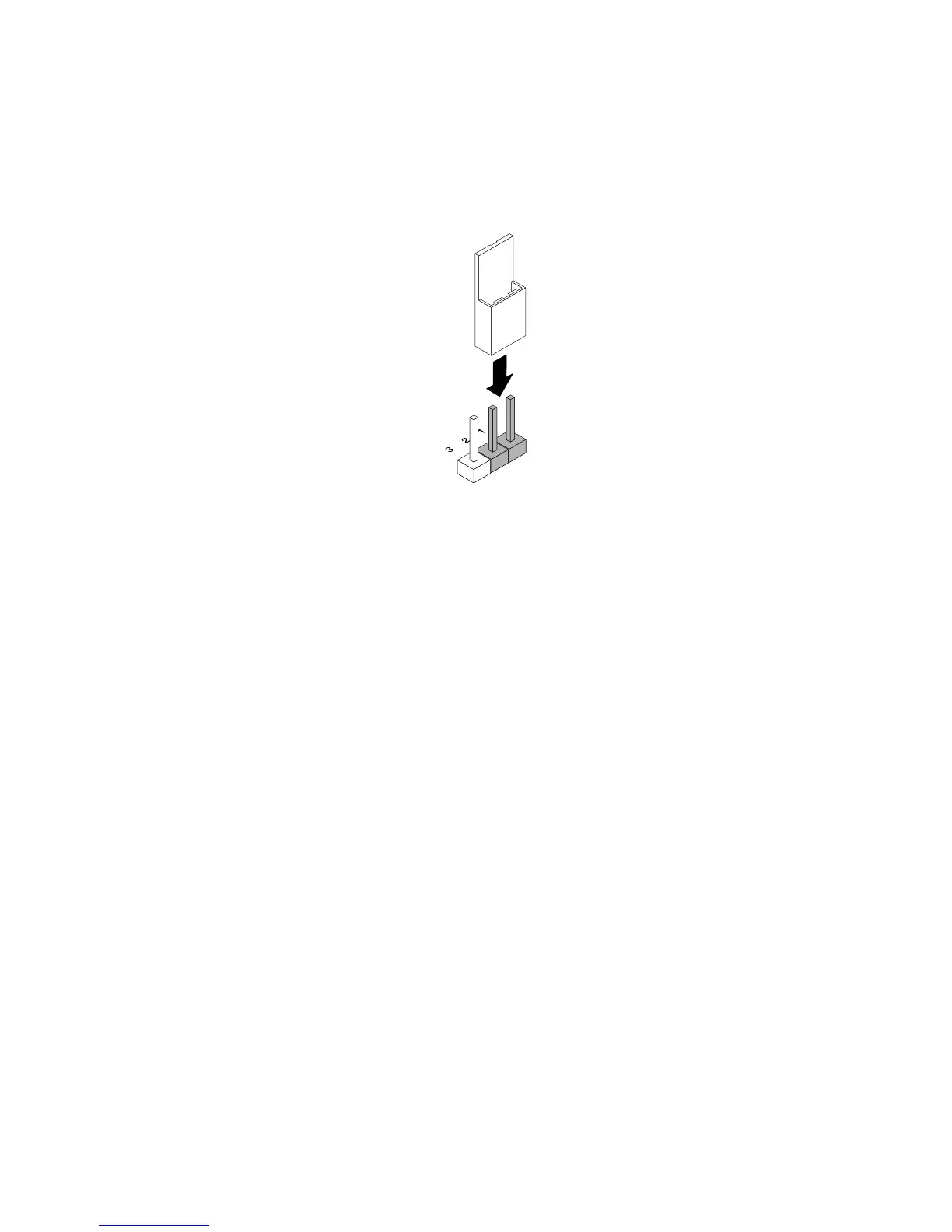

Figure30.Defaultjumpersetting

Chapter3.Productoverview49
