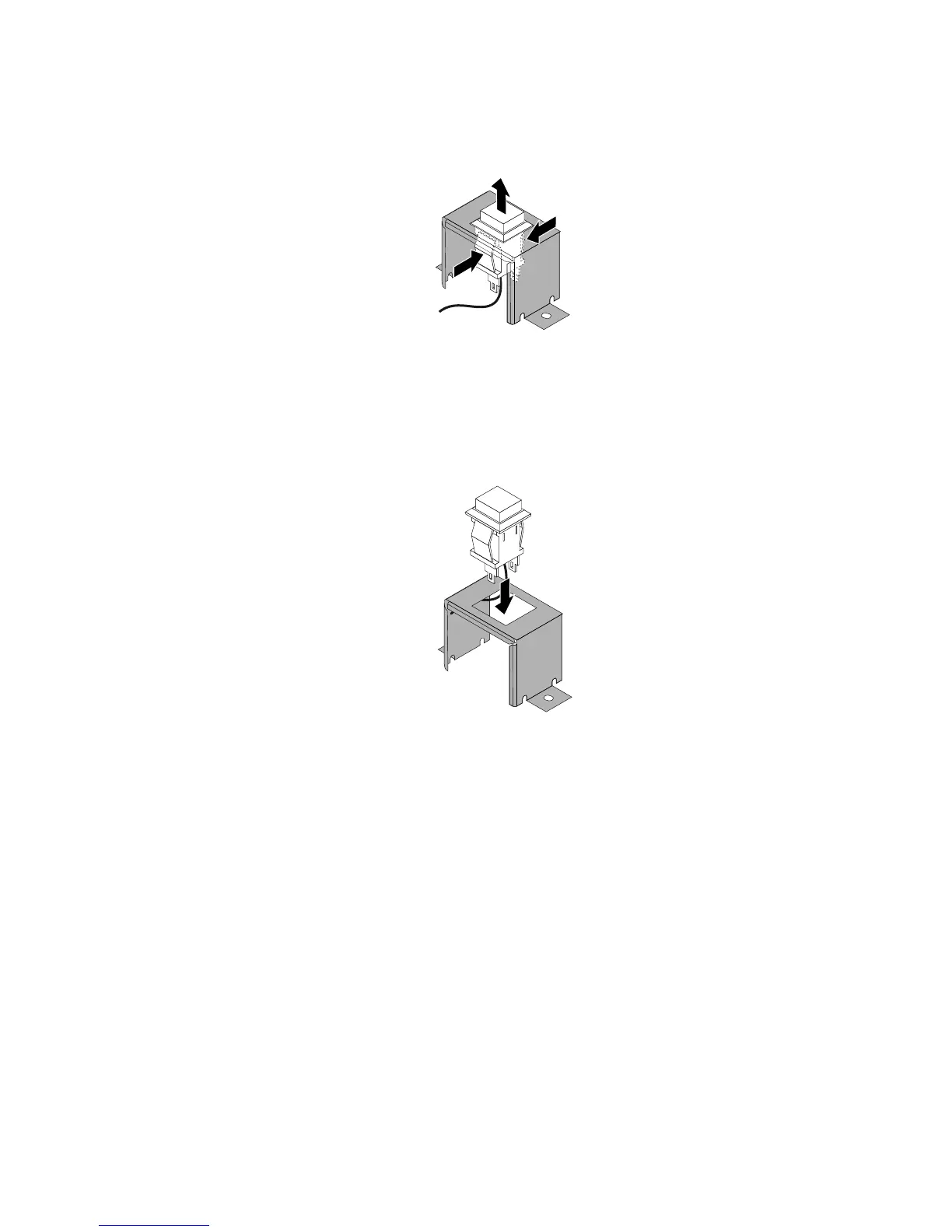

6.Pressthetwotabsonthecoverpresenceswitchtowardeachotherandcarefullypushthecover
presenceswitchupwardatthesametimetoremoveitoutoftheframe.
Figure79.Removingthecoverpresenceswitch
7.Touchthestatic-protectivepackagethatcontainsthenewcoverpresenceswitchtoanyunpainted
surfaceontheoutsideoftheserver.Then,removethenewcoverpresenceswitchfromthepackage.
8.Insertthenewcoverpresenceswitchwiththecableintothecoverpresenceswitchframe.
Figure80.Installingthecoverpresenceswitch
Chapter6.Installing,removing,orreplacinghardware125
