Thefollowingillustrationshowsthelocationsofthehot-swapharddiskdrivebackplanes1.Youneedto
opentheservercoverandremovethefrontsystemfanstoaccessthebackplanes.See“Removingthe
servercover”onpage65and“Replacingthefrontsystemfan1”onpage128.
Notes:
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
•Thefollowingillustrationisbasedonservermodelsthathavevetoeight3.5-inchhot-swapSATAorSAS
harddiskdriveswithtwobackplanes.

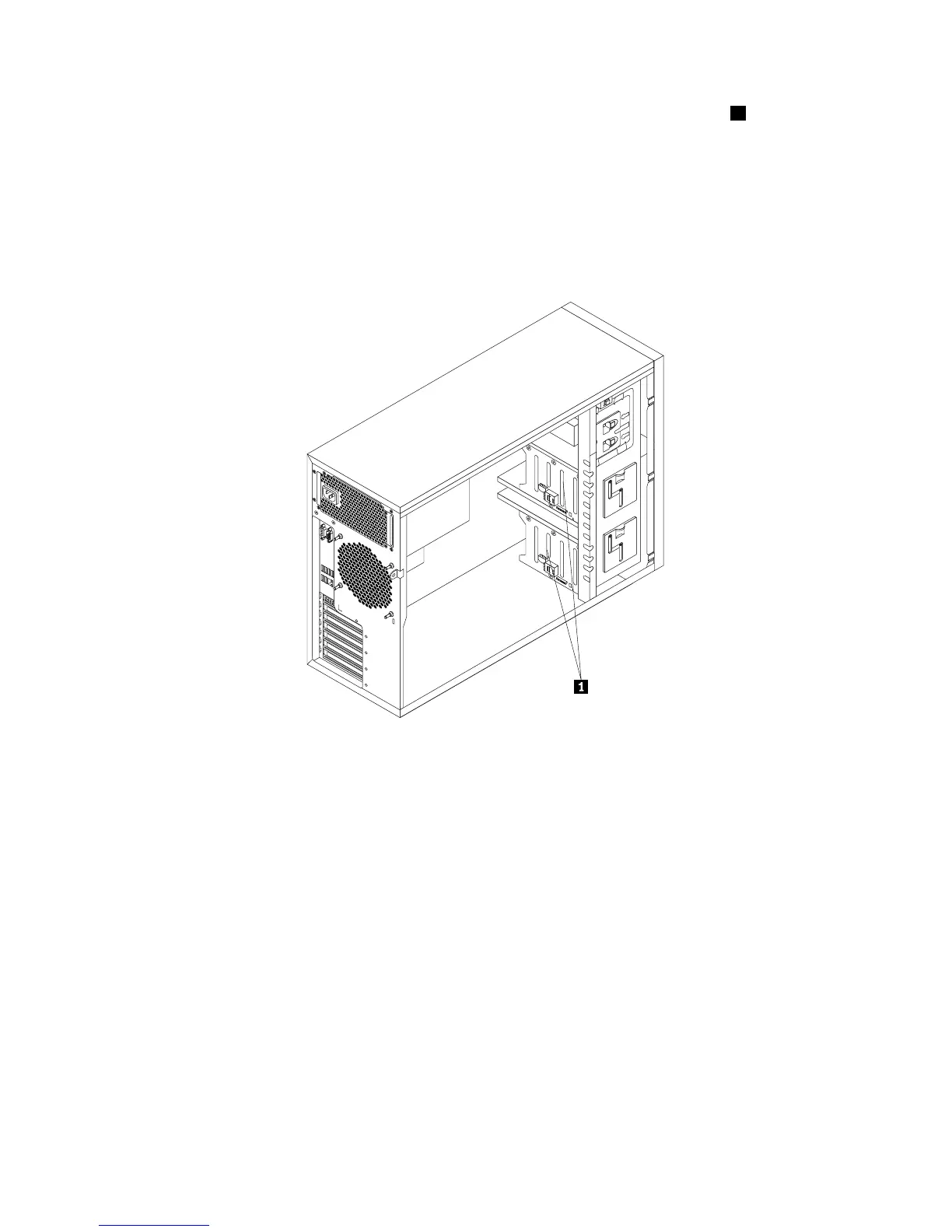

Figure18.Hot-swapharddiskdrivebackplanelocations
Backplaneforservermodelswithfour3.5-inchhot-swapharddiskdrivebays
Thistopicprovidesinformationtohelpyoulocatetheconnectorsonthebackplaneforservermodels
withfour3.5-inchhot-swapharddiskdrivebays.
Chapter3.Productoverview31
