a.Pressthereleasetab1inthedirectionasshown,andthencarefullyliftthePCIcardbracket
assemblyslightlyupwarduntileachofthetworetentionposts2onthechassisisinthecentral
positionofthecorrespondingholeinthePCIcardbracketassembly.

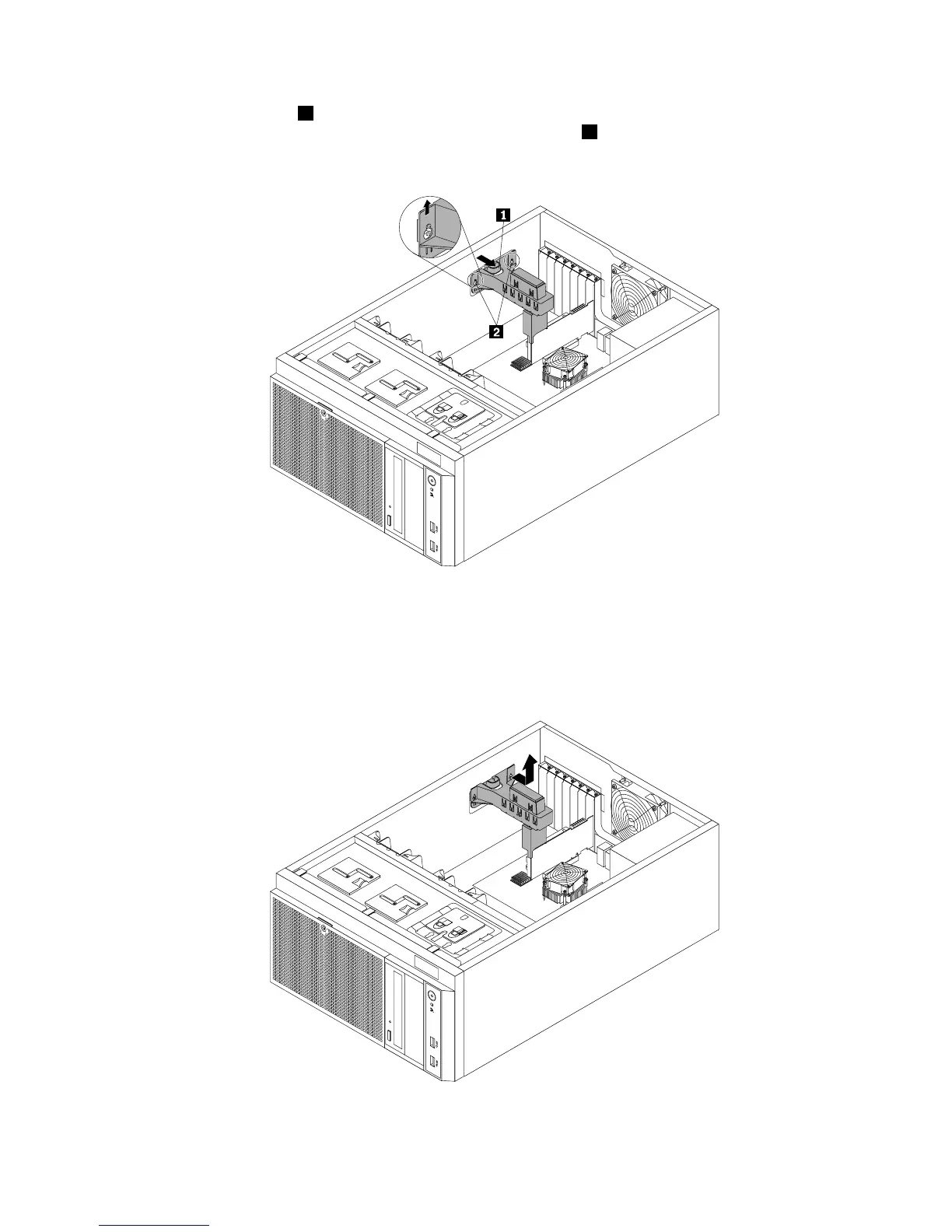

Figure30.ReleasingthePCIcardbracketassembly
b.CarefullymovethePCIcardbracketassemblytothetopsideofthechassisuntilthePCIcard
bracketassemblyisreleasedfromtheretentionpostsonthechassis.Then,liftthePCIcardbracket
assemblyoutofthechassis.
Figure31.RemovingthePCIcardbracketassembly
70ThinkServerTS440UserGuide
