5.ReinstallthePCIcardbracketassemblybydoingthefollowing:
a.Installthesmalllow-prolePCIcardbracketintothemainPCIcardbracketasshown.

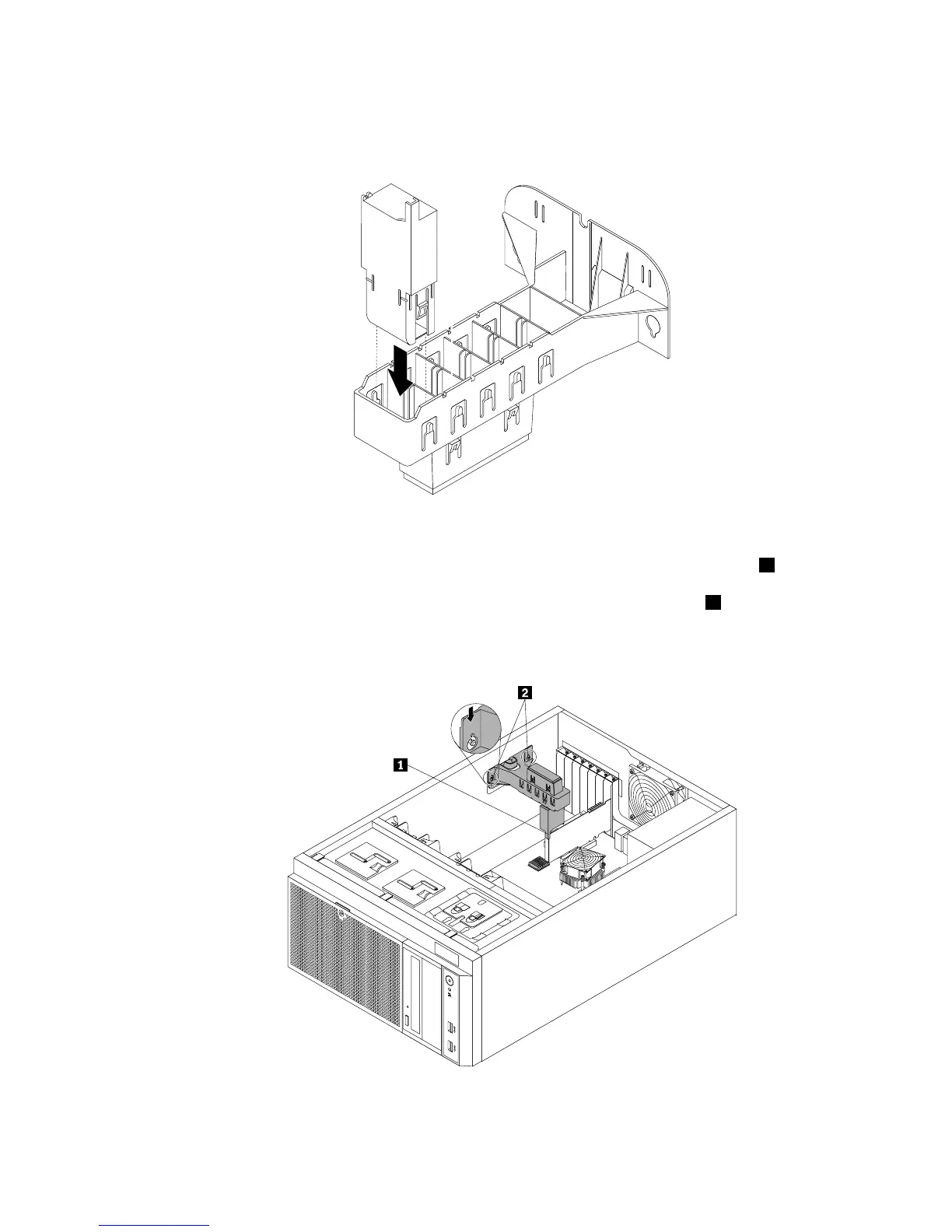

Figure32.Installingthesmalllow-prolePCIcardbracketintothemainPCIcardbracket
b.PlacethePCIcardbracketassemblyintothechassissothatthetworetentionposts2onthe
bottomofthechassisareinsertedintothecorrespondingholesinthePCIcardbracketassembly.
EnsurethattheedgeoftheRAIDcardcanbesmoothlyinsertedintotheslot1inthesmall
low-prolePCIcardbracket.Then,carefullypressthePCIcardbracketassemblydownuntilitis
securelyinstalledandlockedintopositionbythetworetentionposts.
Figure33.ReinstallingthePCIcardbracketassembly
Chapter6.Installing,removing,orreplacinghardware71
