•“RemovingtheThinkServerRAIDSuperCapacitorModule”onpage98
•“InstallingtheThinkServerRAIDSuperCapacitorModule”onpage99
Note:UseanydocumentationthatcomeswiththeThinkServerRAIDSuperCapacitorModuleandfollow
thoseinstructionsinadditiontotheinstructionsinthistopic.
RemovingtheThinkServerRAIDSuperCapacitorModule
ToremovetheThinkServerRAIDSuperCapacitorModule(hereinafterreferredtoastheSuperCapacitor
Module),dothefollowing:
1.Prepareyourserverandremovetheservercover.See“Preparingyourserverinadvanceandremoving
theservercover”onpage57.
2.DisconnectthecableoftheSuperCapacitorModulefromtheRAIDcard.
3.PressthetabontheSuperCapacitorModulebracketasshownandpulltheSuperCapacitorModule
outofthebracket.
1
2

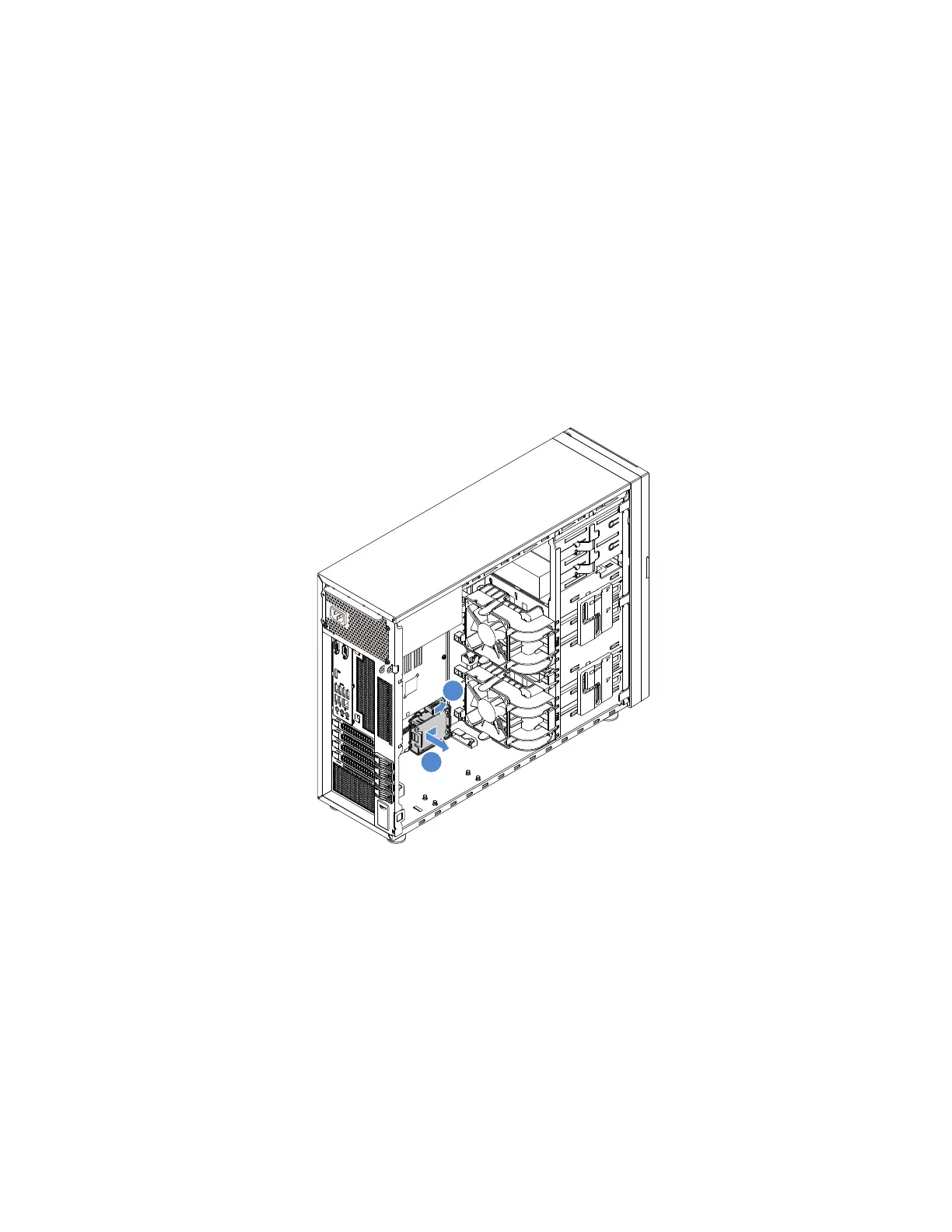

Figure69.RemovingtheThinkServerRAIDSuperCapacitorModulefromthebracket
