Step 6. Make sure that the on/off switch of the new power supply is in the Off position.
Step 7. Using both hands, support and align the edges of the power supply with the opening in the system
chassis, and then gently push the power supply into the chassis using the cam handle. The power
supplies are keyed and can only be installed one way.
Attention: Do not use excessive force when sliding the power supply into the system. You can
damage the connector.
Step 8. Close the cam handle so that the latch clicks into the locked position and the power supply is fully
seated.
Step 9. Reconnect the power supply cabling:
a. Reconnect the power cable to the power supply and the power source.
b. Secure the power cable to the power supply using the power cable retainer.
Step 10. Turn on the power to the new power supply, and then verify the operation of the power supply
activity LEDs. The power supply LEDs are lit when the power supply comes online. The amber fault
LED should be off and the DC good light should be on for each power supply.

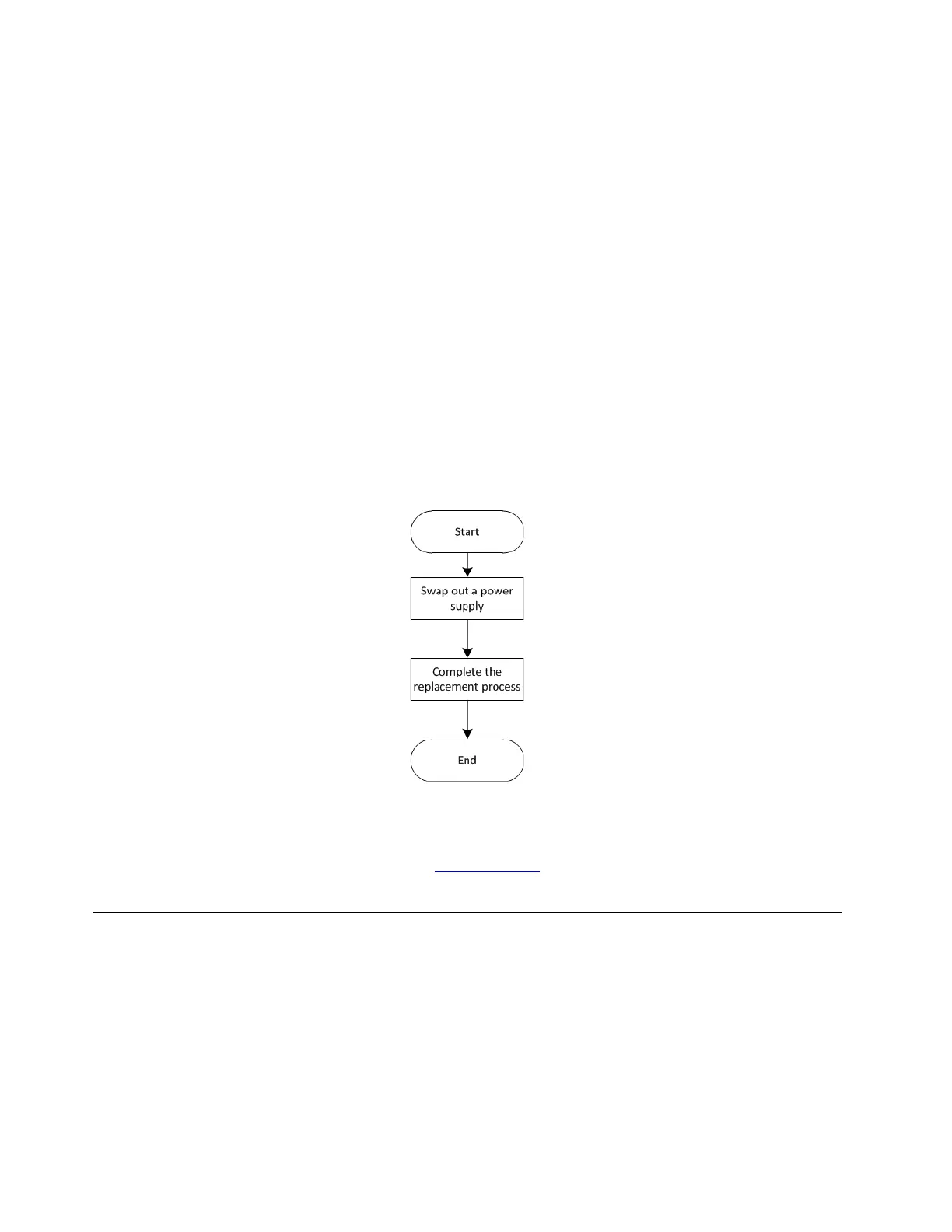

Workflow diagram
This diagram shows the workflow of the power supply replacement procedure for a system.
Completing the replacement process
After you replace the part, you can return the failed part to Lenovo, as described in the RMA instructions
shipped with the kit. Contact technical support at
Lenovo Support if you need the RMA number or additional
help with the replacement procedure.
Replacing the controller module
You must verify the following prerequisites for the replacement procedure.
Before you begin
• All disk shelves must be working properly.
• The healthy controller must be able to take over the controller that is being replaced (referred to in this
procedure as the degraded controller).
About this task
42
ThinkSystem DM3000x and DM5000x Hardware Installation and Maintenance Guide
To Next Page
