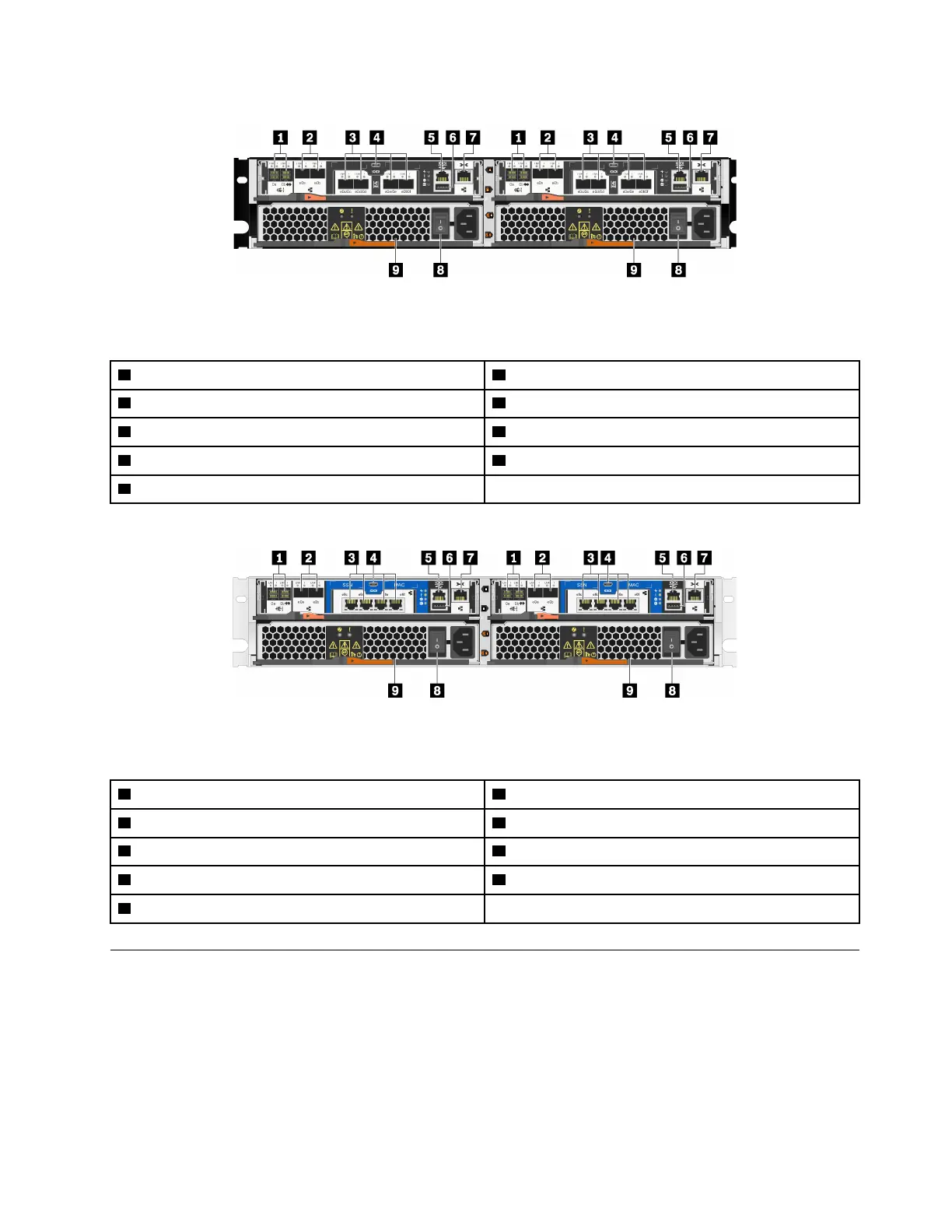

Rear view – type 1
Figure 4. Rear view – type 1
Table 4. Components on the rear of the system
1 MiniSAS HD ports (4) 2 SFP+ Ethernet ports (4)
3 UTA2 SFP+ ports (8) 4 Micro-B USB console ports (2)
5 RJ45 console ports (2) 6 Host USB Type-A connectors (2)
7 RJ45 management ports (2) 8 Power supply buttons (2)
9 Power supplies (2)
Rear view – type 2
Figure 5. Rear view – type 2
Table 5. Components on the rear of the system
1 MiniSAS HD ports (4) 2 SFP+ Ethernet ports (4)
3 RJ45 10 GbE host ports (8) 4 Micro-B USB console ports (2)
5 RJ45 console ports (2) 6 Host USB Type-A connectors (2)
7 RJ45 management ports (2) 8 Power supply buttons (2)
9 Power supplies (2)
Rear view LEDs
The rear of the system provides system LEDs.
Chapter 2. System components 7
