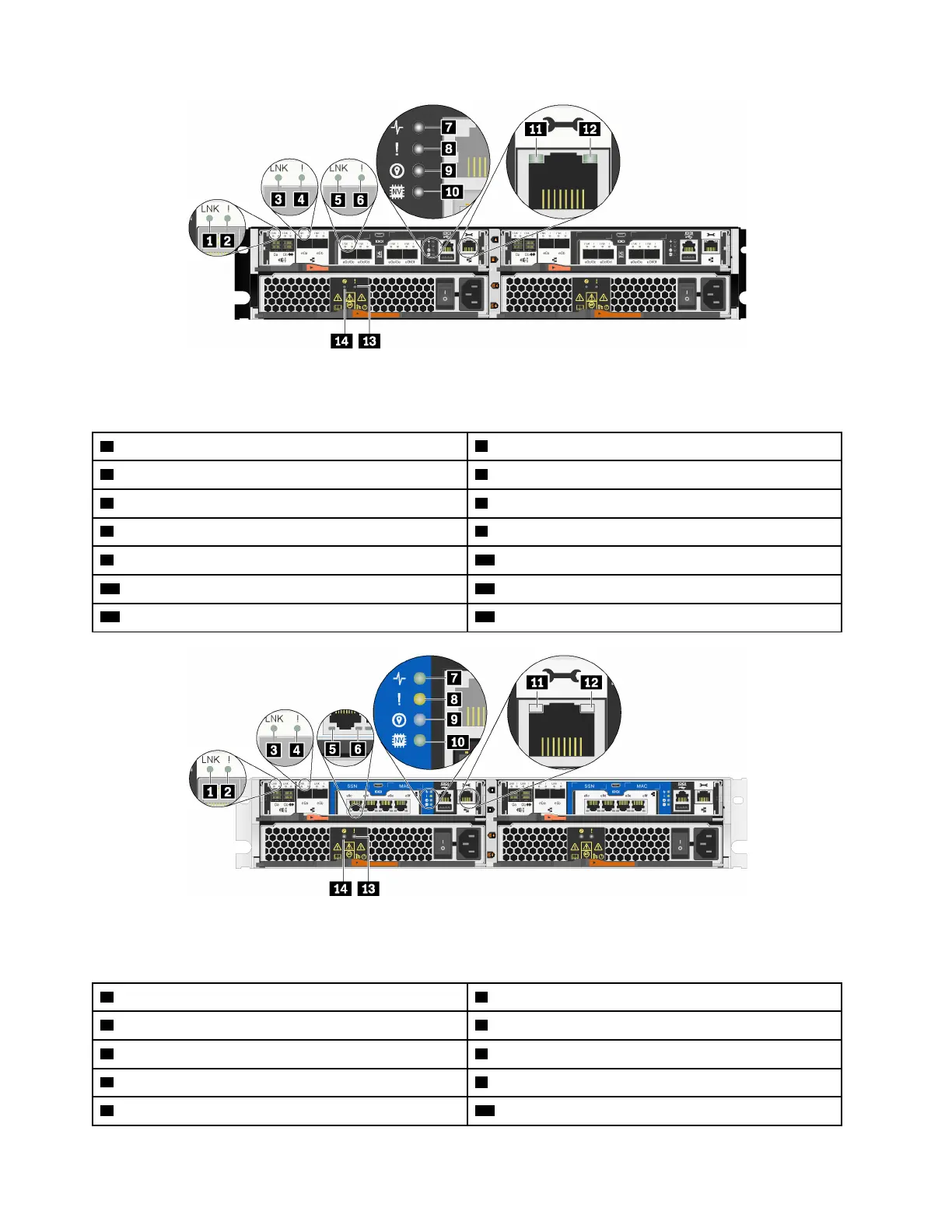

Figure 6. Rear view LEDs – type 1
Table 6. LEDs on the rear of the system
1 MiniSAS HD port link LED (4) 2 MiniSAS HD port attention LED (4)
3 SFP+ Ethernet port link LED (4) 4 SFP+ Ethernet port attention LED (4)
5 UTA2 SFP+ port link LED (8) 6 UTA2 SFP+ port attention LED (8)
7 Controller activity LED (2) 8 Controller attention LED (2)
9 Controller location LED (2)
10 NVRAM LED
11 RJ45 management port link LED (2) 12 RJ45 management port activity LED (2)
13 Power supply attention LED (2) 14 AC power good LED (2)
Figure 7. Rear view LEDs – type 2
Table 7. LEDs on the rear of the system
1 MiniSAS HD port link LED (4) 2 MiniSAS HD port attention LED (4)
3 SFP+ Ethernet port link LED (4) 4 SFP+ Ethernet port attention LED (4)
5 RJ45 10 GbE host port link LED (8) 6 RJ45 10 GbE host port activity LED (8)
7 Controller activity LED (2) 8 Controller attention LED (2)
9 Controller location LED (2)
10 NVRAM LED
8 ThinkSystem DM3000x and DM5000x Hardware Installation and Maintenance Guide
