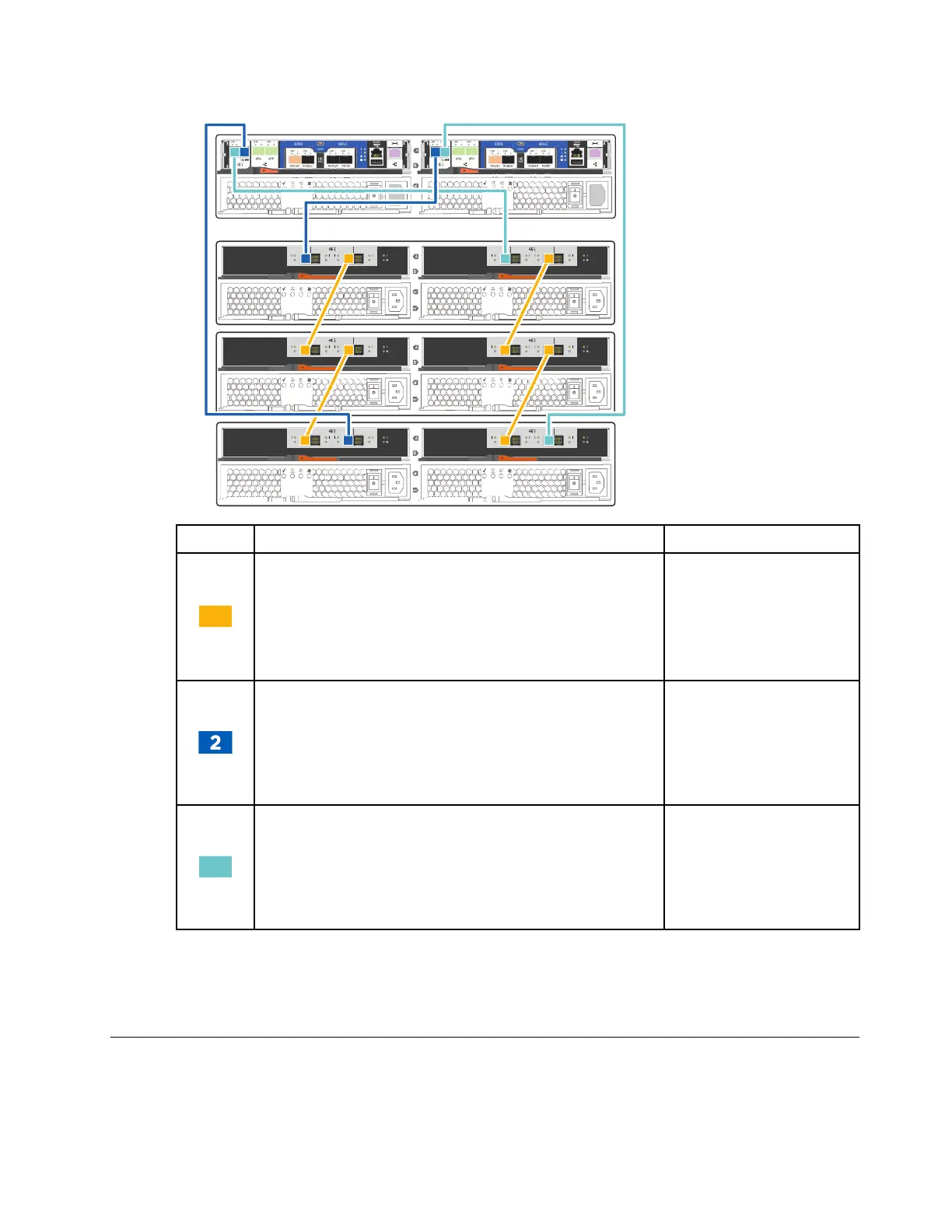

Step 1. Cable the HA pair with external drive shelves using the following steps:
2
2
IOM12
21
LN K LN K
43
LN K LN K
IOM12
21
LN K LN K
43
LN K LN K
IOM12
21
LN K LN K
43
LN K LN K
IOM12
21
LN K LN K
43
LN K LN K
IOM12
21
LN K LN K
43
LN K LN K
IOM12
21
LN K LN K
43
LN K LN K
1
1
1
2
2
First
shelf
IOMA
Last
shelf
IOMB
Step
Perform on each controller Ports used
1
Cable the shelf-to-shelf ports.
Port 3 on IOM A to port 1
on the IOM A on the shelf
directly below.
Port 3 on IOM B to port 1
on the IOM B on the shelf
directly below.
Connect each controller to IOM A in the stack.
Controller 1 port 0b to
IOM A port 3 on last drive
shelf in the stack.
Controller 2 port 0a to
IOM A port 1 on the first
drive shelf in the stack.
3
Connect each controller to IOM B in the stack
Controller 1 port 0a to
IOM B port 1 on first drive
shelf in the stack.
Controller 2 port 0b to
IOM B port 3 on the last
drive shelf in the stack.
If you have more than one drive shelf stack, see the Installation and Cabling Guide for your drive
shelf type.
Step 2. To complete setting up your system, see “Completing system setup and configuration” on page 23.
Completing system setup and configuration
You must cable and configure your Windows client before completing your ststem setup and configuration.
Step 1. Cable and configure your client:
Chapter 4. System installation and setup 23
