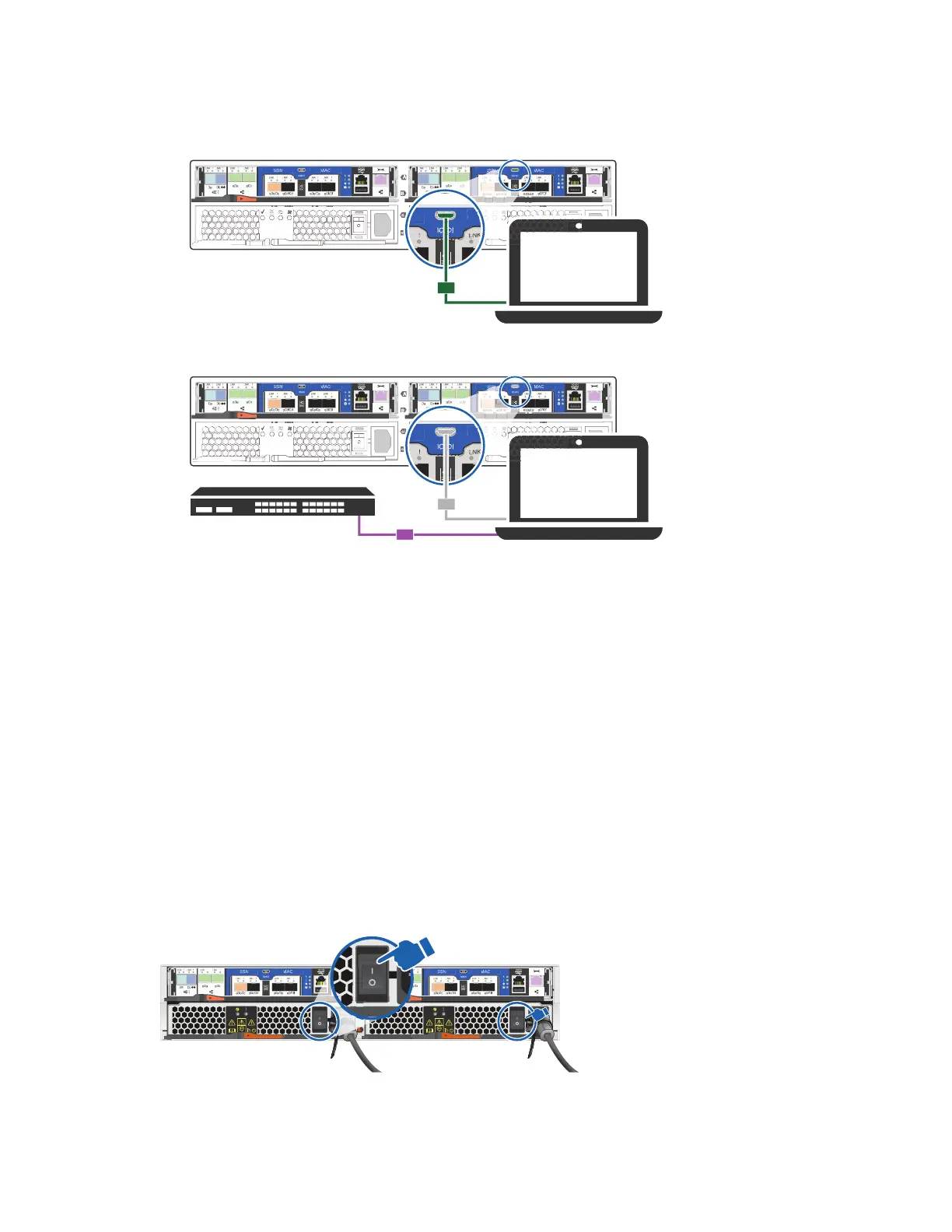

a. Connect the console cable to the client and the console port on the controller module using
the console cable that came with your system.
b. Connect the client to the switch on the management subnet.
Client
Management subnet
2
1
c. Assign a TCP/IP address to the client, using one that is on the management subnet.
Step 2. If your system has one or more drive shelves, set the shelf IDs:
a. Power on the drive shelf, and then remove the end cap on the left of the shelf.
b. Press and hold the orange button until the first digit blinks, and then press the button to
advance the first digit (0-9) to the desired number.The first digit continues to blink.
c. Press and hold the button until the second digit blinks, and then press the button to advance
the second digit (0-9) to the desired number.The first digit stops blinking, and the second digit
continues to blink.
d. Press and hold the button until the second digit stops blinking, and then replace the end cap
on the shelf.
e. Wait about 10 seconds for both digits to start blinking again and for the LED to illuminate, and
then power-cycle the drive shelf to make the shelf ID take effect.
f. Repeat these steps for any remaining drive shelves.
Step 3. Plug the power cords into the power supplies, and then connect them to power sources on
different circuits.
Step 4. Turn on the power switches to both controllers.
Step 5. Set the console port on the client to 115,200 baud with N-8-1.
24
ThinkSystem DM3000x and DM5000x Hardware Installation and Maintenance Guide
