Remove the 2.5-inch rear drive backplane
Use this information to remove the 2.5-inch rear drive backplane.
About this task
Attention:
• Read Installation Guidelines to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DY1RaWHYM4xDloAwuBQHR0
• Youku: http://list.youku.com/albumlist/show/id_52339628
Procedure
Step 1. Remove the top cover. See Remove the top cover.
Step 2. Remove the drives or drive fillers installed in the rear hot-swap drive cage. See Remove a hot-swap
drive.
Step 3. Gently press and hold the tab on the rear hot-swap drive cage as shown and remove the air baffle
from the rear hot-swap drive cage.

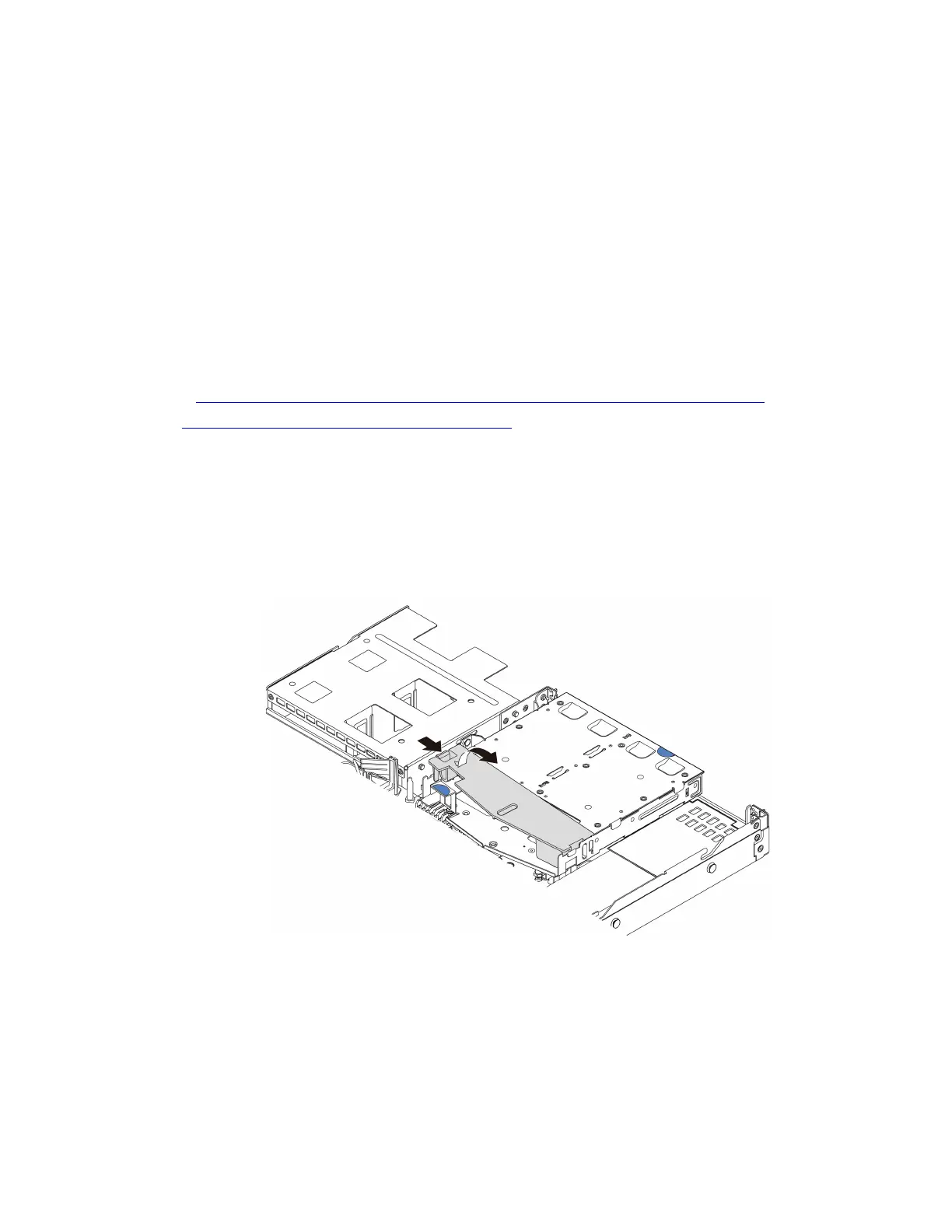

Figure 51. Air baffle removal
Step 4. Disconnect the cables from the 2.5-inch rear drive backplane.
Chapter 4. Hardware replacement procedures 135
