7mm drive backplane cable routing (power & signal)
This section provides cable routing information for the 7mm drives.

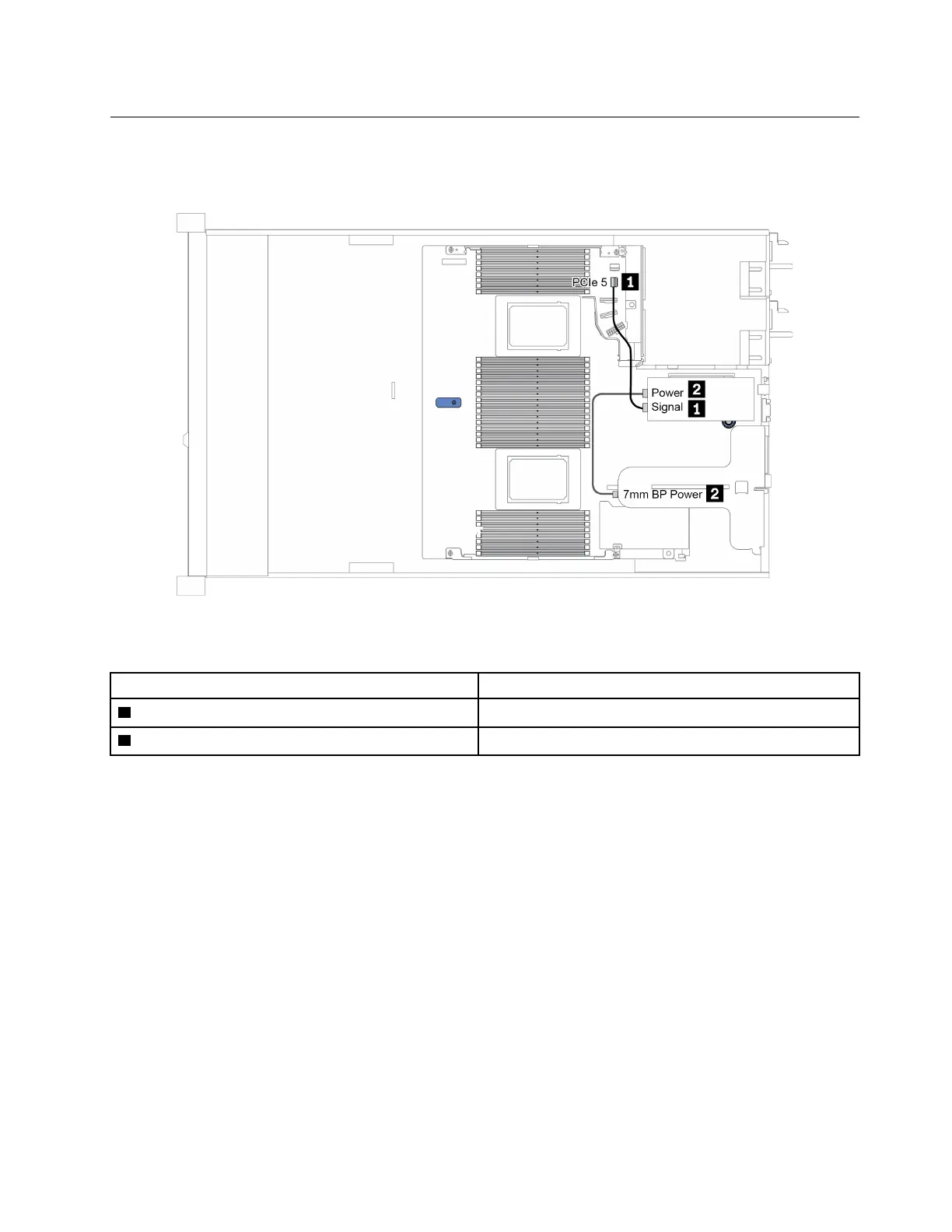

Figure 15. Cable routing for 7mm drives
From To
1 7mm signal cable PCIe connector 5 on the system board
2 Power cable 7mm power connector on riser 1 assembly
Chapter 3. Internal cable routing 63
