OCP 3.0 Ethernet adapter replacement
Use this information to remove and install the OCP 3.0 Ethernet adapter.
Note: The OCP 3.0 Ethernet adapter is available only on some models.
Remove the OCP 3.0 Ethernet adapter
Use this information to remove the OCP 3.0 Ethernet adapter.
About this task
Attention:
• Read Installation Guidelines to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DY1RaWHYM4xDloAwuBQHR0
• Youku: http://list.youku.com/albumlist/show/id_52339628
Procedure

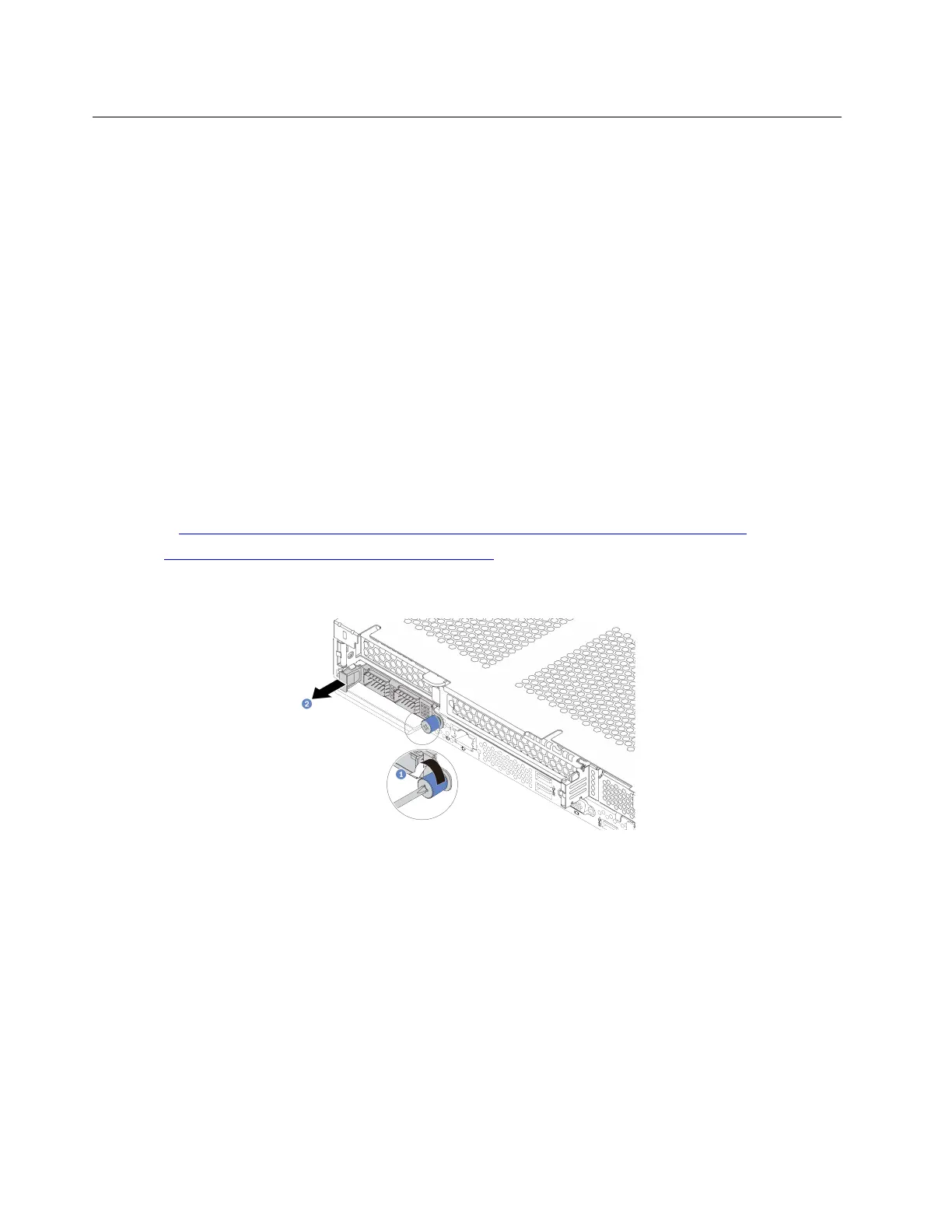

Figure 83. OCP 3.0 Ethernet adapter removal
Step 1. Loosen the thumbscrew that secures the adapter.
Step 2. Pull out the OCP 3.0 Ethernet adapter by its handle on the left as shown.
After you finish
Install a new OCP 3.0 Ethernet adapter or a card filler. See Install the OCP 3.0 Ethernet adapter.
