Install the RAID super capacitor module on the riser
Use this information to install the RAID super capacitor module on the riser.
About this task
Attention:
• Read Installation Guidelines to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DY1RaWHYM4xDloAwuBQHR0
• Youku: http://list.youku.com/albumlist/show/id_52339628
Procedure
Step 1. Touch the static-protective package that contains the RAID super capacitor module to any
unpainted surface on the outside of the server. Then, take the RAID super capacitor module out of
the package and place it on a static-protective surface.
Step 2. Install the RAID super capacitor module on the riser.

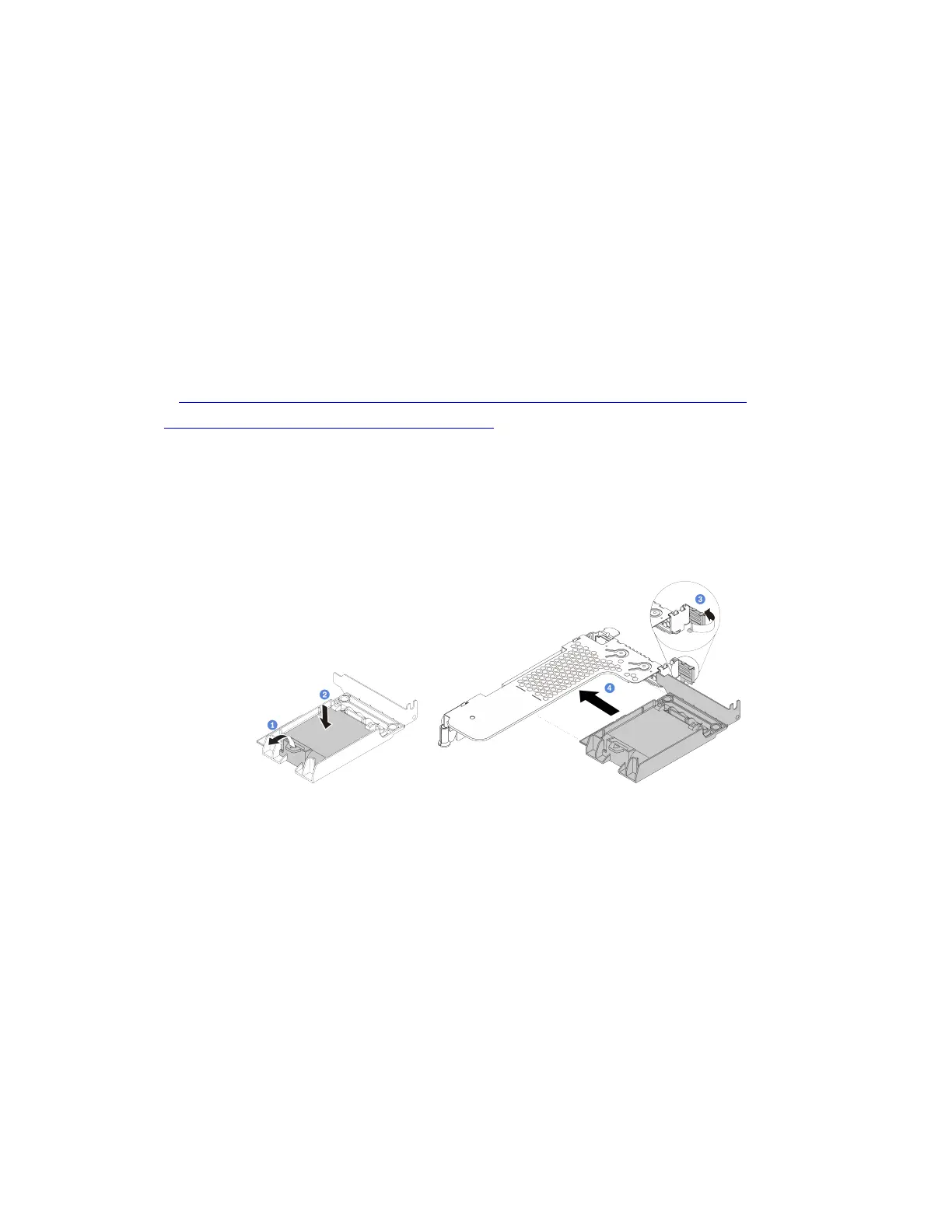

Figure 111. Installation of the RAID super capacitor module on the riser
a. Open the retention clip on the holder.
b. Put the RAID super capacitor module into the holder and press it down to secure it into the
holder.
c. Rotate the latch on the riser bracket to the open position.
d. Align the RAID super capacitor assembly with the slot on the riser card. Then, carefully press
the RAID super capacitor assembly straight into the slot until it is securely seated and its
bracket also is secured.
After you finish
1. Install the riser assembly on the chassis. See Install a riser card.
