Step 3. Install the PCIe adapter and secure it to the riser assembly.

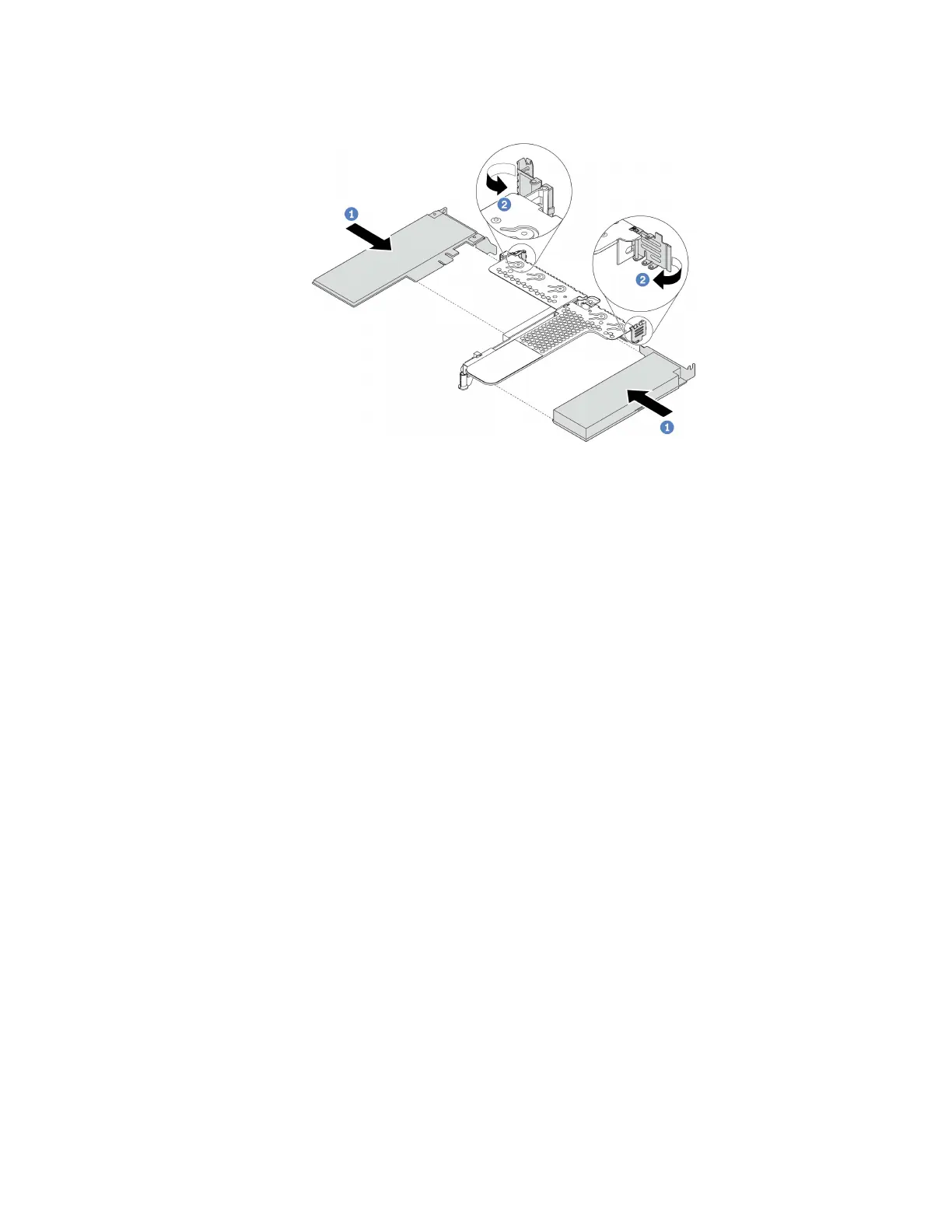

Figure 87. PCIe adapter installation into the LP-FH riser assembly
a. Align the PCIe adapter with the PCIe slot on the riser card. Then, carefully press the PCIe
adapter straight into the slot until it is securely seated and its bracket also is secured.
b. Rotate the latch on the riser bracket to the closed position.
Notes:
1. Ensure that PCIe adapter installation meets Technical rules for PCIe adapters.
2. The procedure for installing a PCIe adapter is similar for different types of riser assembly. In
this topic, the LP-FH riser assembly is used as an example.
Step 4. Connect the cables to the PCIe adapter in the riser assembly. You can refer to the Internal cable
routing and locate the cable routing information for your configuration options.
After you finish
1. Reinstall the riser assembly. See Install a riser card.
2. Complete the parts replacement. See Complete the parts replacement.
