4 PROFINET
PROFINET quick start
14 Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015

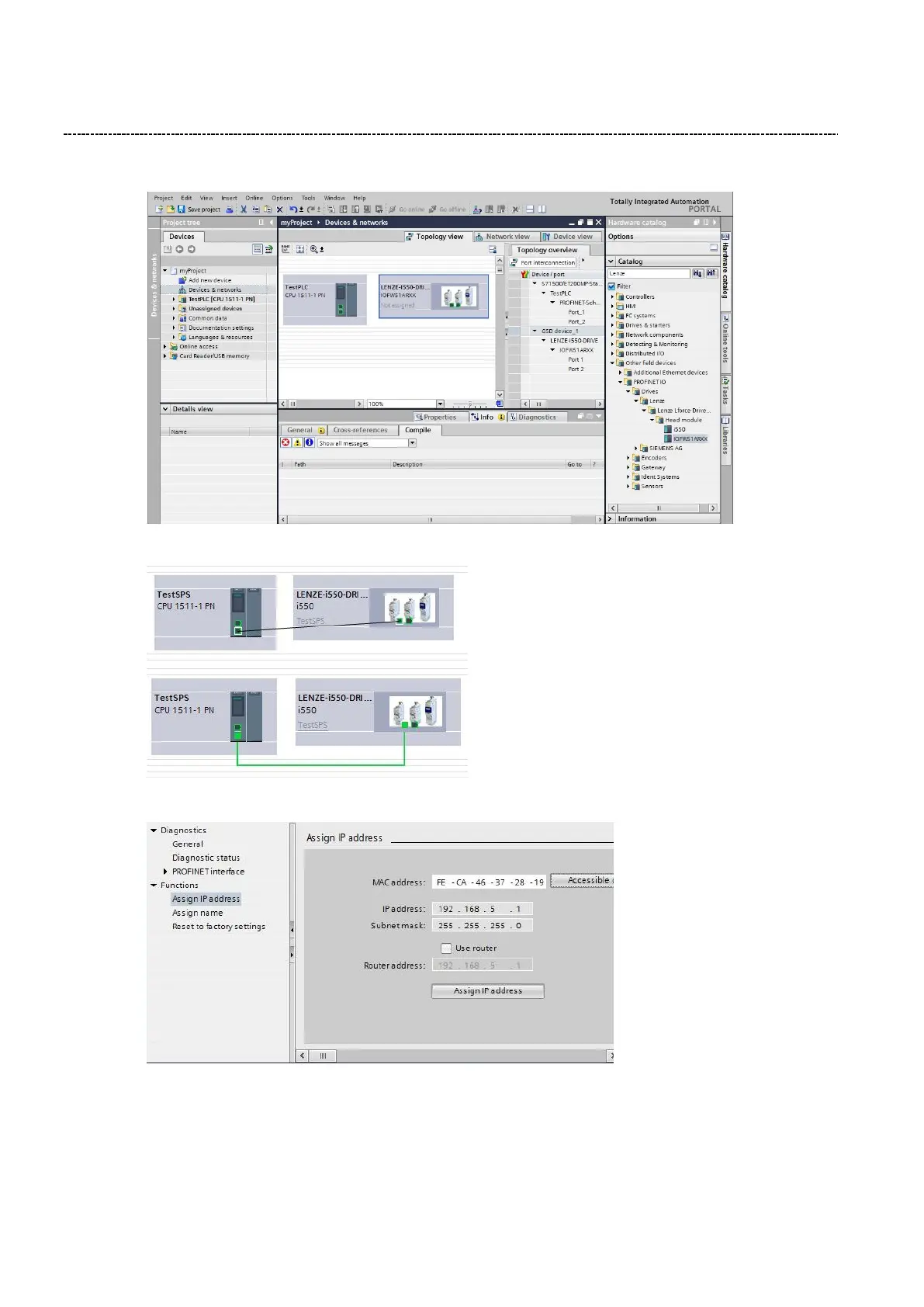

5. Siemens TIA Portal: Add the i550 to the project:
Go to the topological view and search the i550 in the Hardware-Catalog Double-click on it.
6. Go back to topological view and connect the i550 to the PLC using the mouse:
7. Select the correct IP address and station name if they were set before with Easy Starter.
If the setting were not yet done set the IP address and the name now and assign them.
8. Process data configuration
The process data configuration must be configured in the PROFINET configuration tool.
The default configuration in the i550 GSDML -file is:
