4 PROFINET

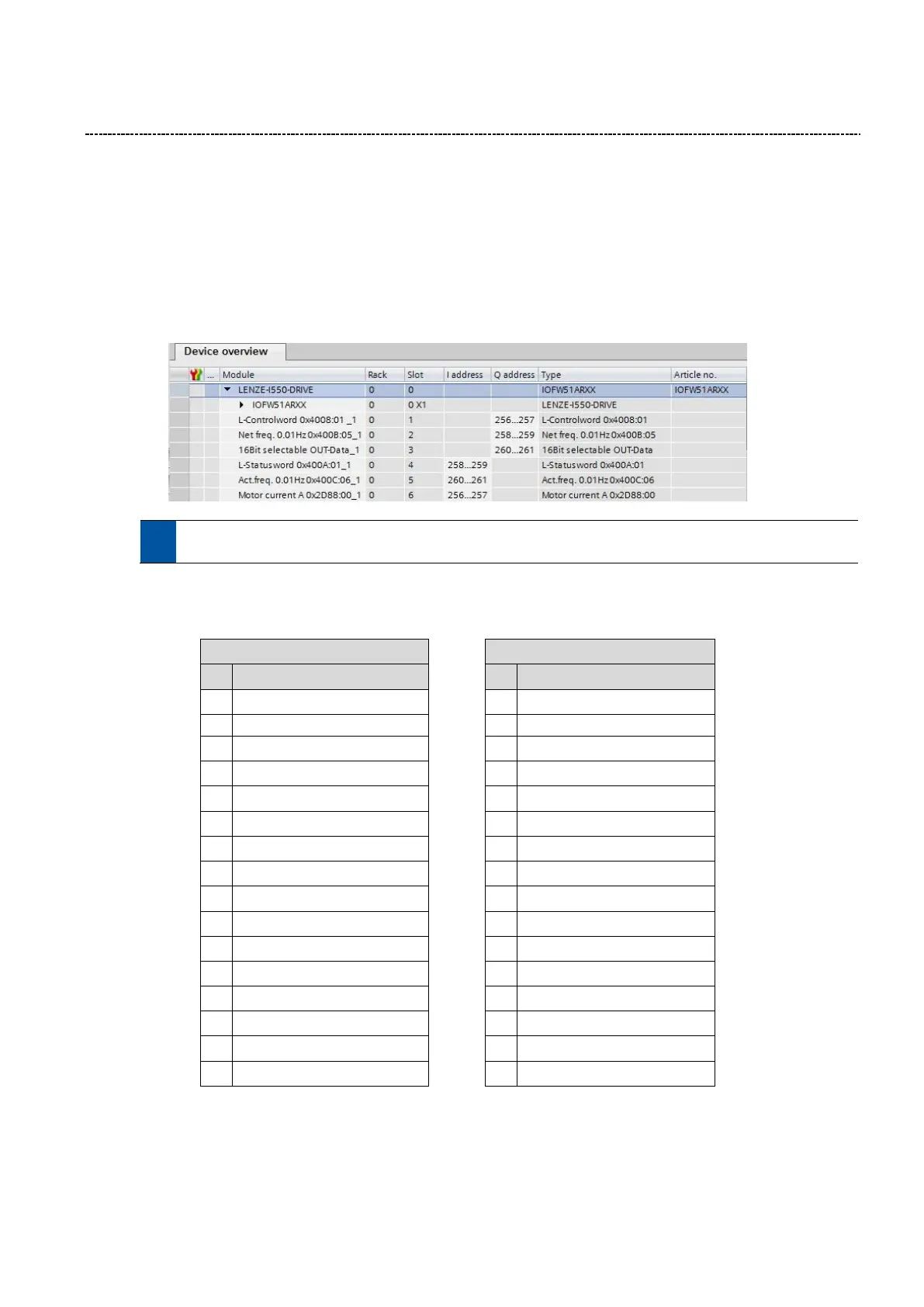

PROFINET quick start
Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015 15
PLC to Drive:
Lenze control word (NetWordIN1) 0x4008:1 (P590:1)
Network frequency setpoint 0.01Hz 0x400B:5 (P592:5))
16Bit selectable OUT-Data The selected parameter to be transferred is selected with the param-
eter of this module, default set to 0x2601:2 (P202:2)
Drive to PLC:
Lenze status word (NetWordOUT1) 0x400A:1 (P591:1)
Actual Speed [0.01 Hz] 0x400C:6 (P593:6)
Actual motor current [0.1A] 0x2D88:0 (P104:0)
i
The configuration of the process data is automatically sent to the drive. Also the Bit-configuration of
NetWordIN1 and NetWordOUT1.
The Bit configuration can be adjusted using the “parameterization” (Baugruppeneinstellung) of the corre-
sponding module. The default setting for the Lenze control word (NetWordIN1) and Lenze status word
(NetWordOUT1) are as follow:
Lenze control word (NetWordIN1)
Lenze status word (NetWordOUT1)
Bits
Function
Bits
Function
0
Not connected
0
Ready to run
1
Not connected
1
Inverse Rotation
2
Quick Stop
2
Running
3
Run Forward
3
Fault
4
Invert Rotation
4
Safe Torque Off
5
DC Brake
5
Quick stop active
6
Not connected
6
Actual speed = 0
7
Reset Fault
7
Inverter warning
8
Preset Select 1 (bit 0)
8
Mechanical brake release
9
Preset Select 2 (bit 1)
9
At current limit
10
Not connected
10
At speed setpoint
11
Not connected
11
Not connected
12
Not connected
12
Not connected
13
Not connected
13
Not connected
14
Not connected
14
Not connected
15
Not connected
15
Not connected
