Lenze L-force CANopen EMF2178IB User Manual

Commissioning
Setting node address and baud rate
6
l
35
EDSMF2178IB EN 3.0
Baud rate setting
12345678910
OPEN
ON
OFF
BdAddress

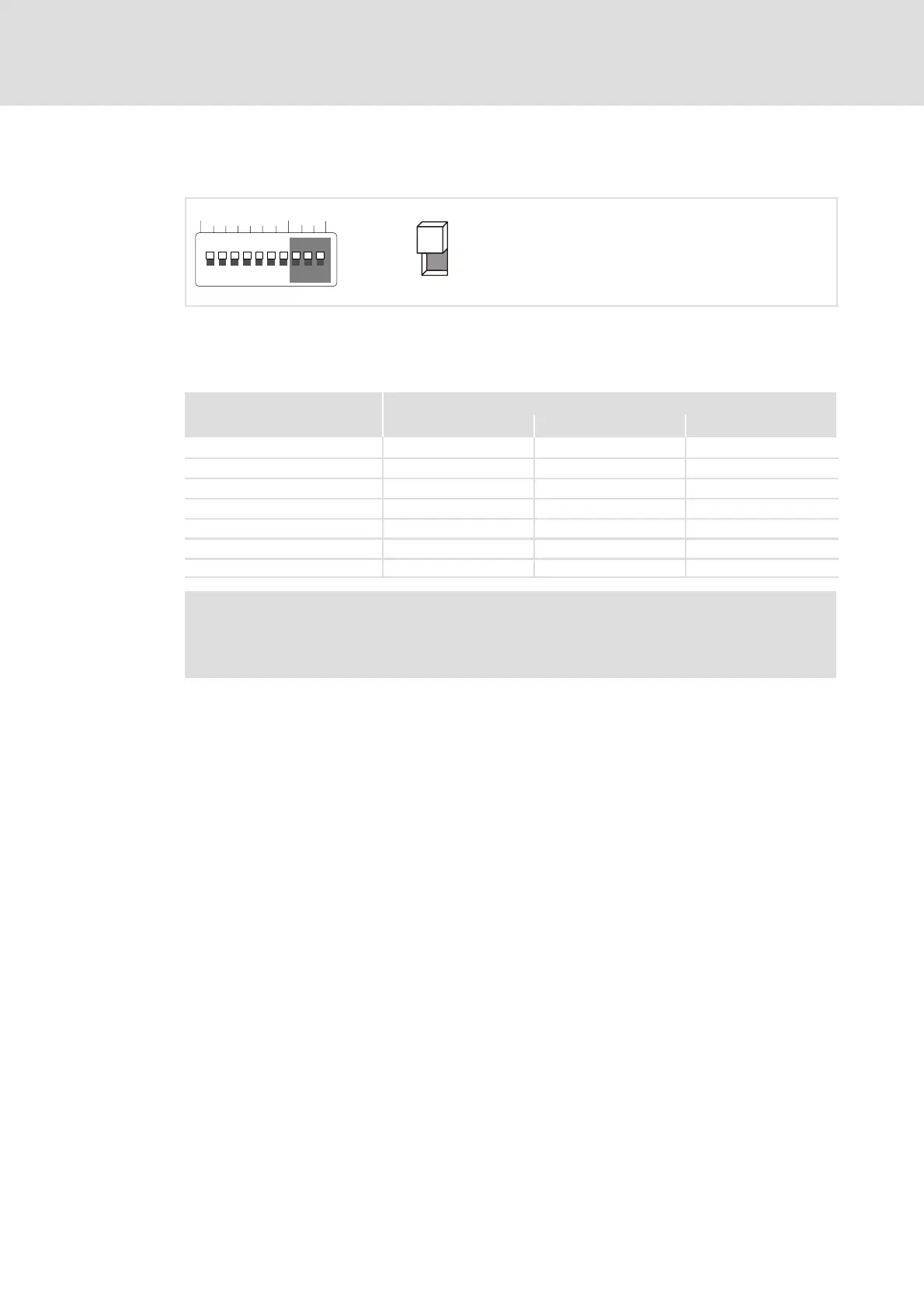

Fig. 6−2 Baud rate setting
ƒ The baud rate must be the same for all CAN nodes.
ƒ The following baud rates can be set:
Baud rate [kbps]
Switch
8 9 10
10 ON ON OFF
20 ON OFF ON
50 OFF ON ON
125 OFF ON OFF
250 OFF OFF ON
500 OFF OFF OFF
1000 ON OFF OFF
) Note!
Switch off the voltage supply of the communication module, and then switch
it on again to activate the changed settings.
