4. The screen will display the information "User Account

Control" and click "Continue" to continue.

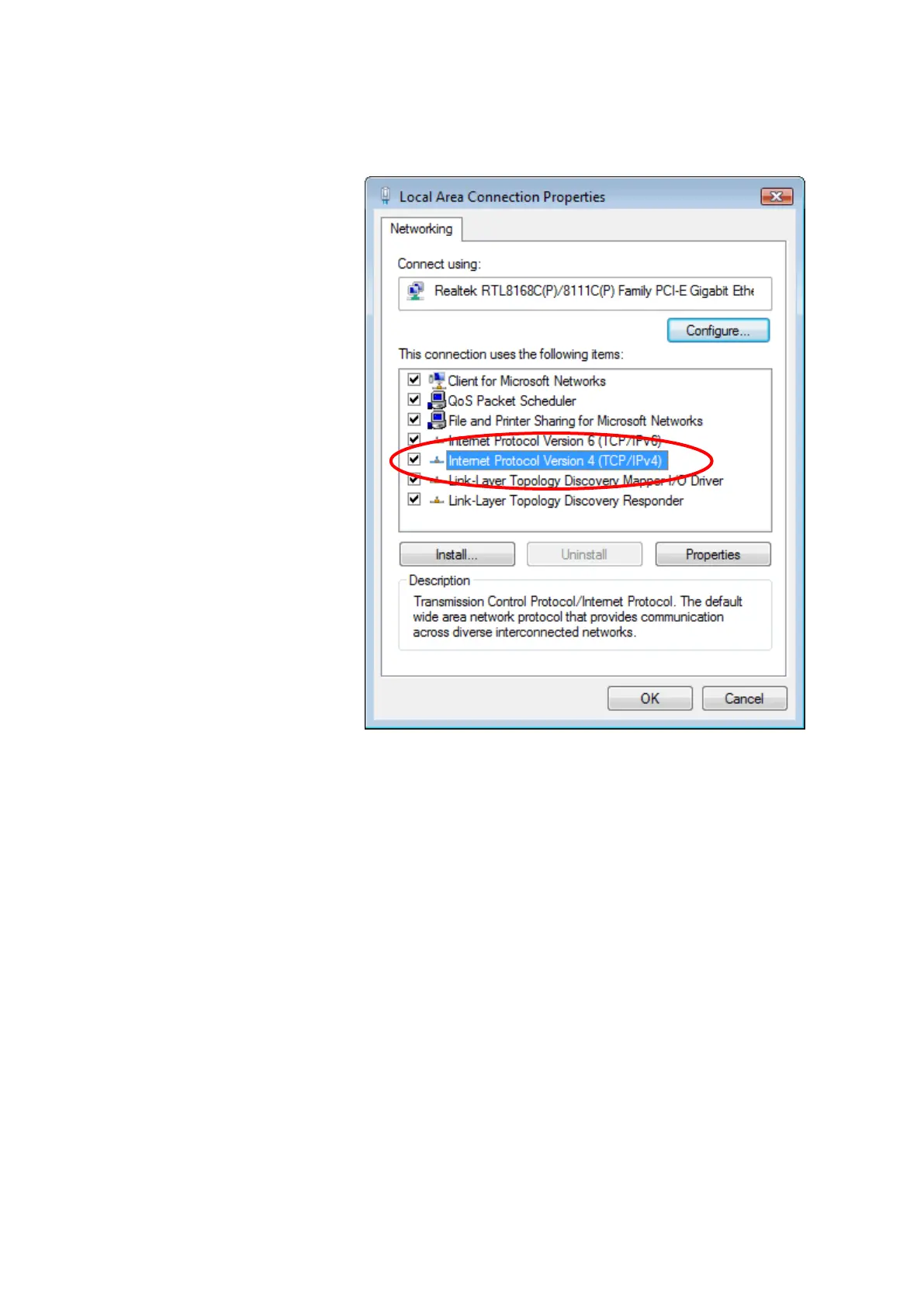

5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
