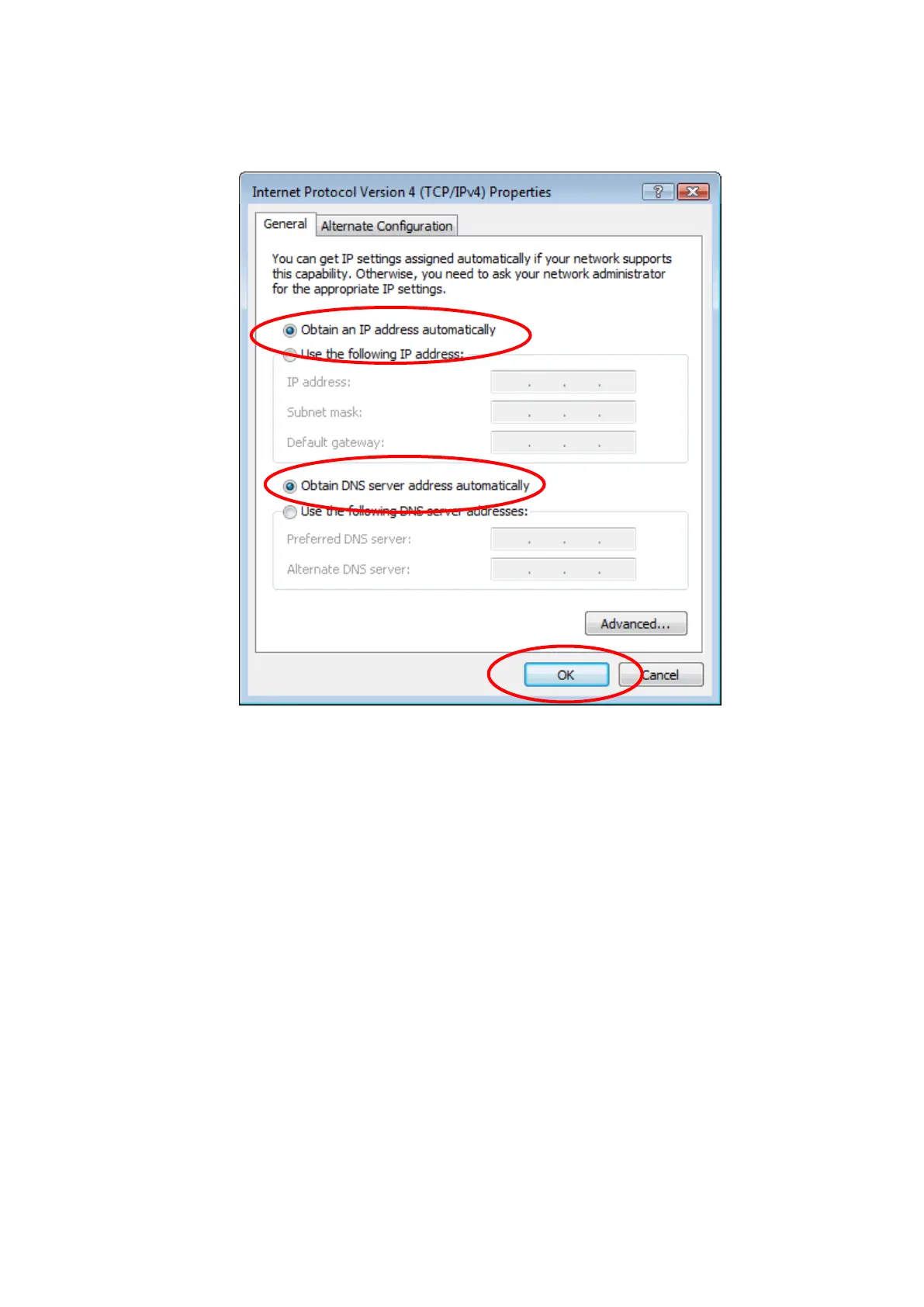

6. Check "Obtain an IP address automatically" and "Obtain

DNS server address automatically" then click on "OK" to

continue.
