3.5.1 Port Role Assignment
WHG-1000 supports two zones, Private and Public. In the Private Zone, authentication is not
required to access the network via wired and wireless. In the Public Zone, by default,
Authentication Required is enabled by default, so clients are required to get authenticated
successfully before surfing the Internet.

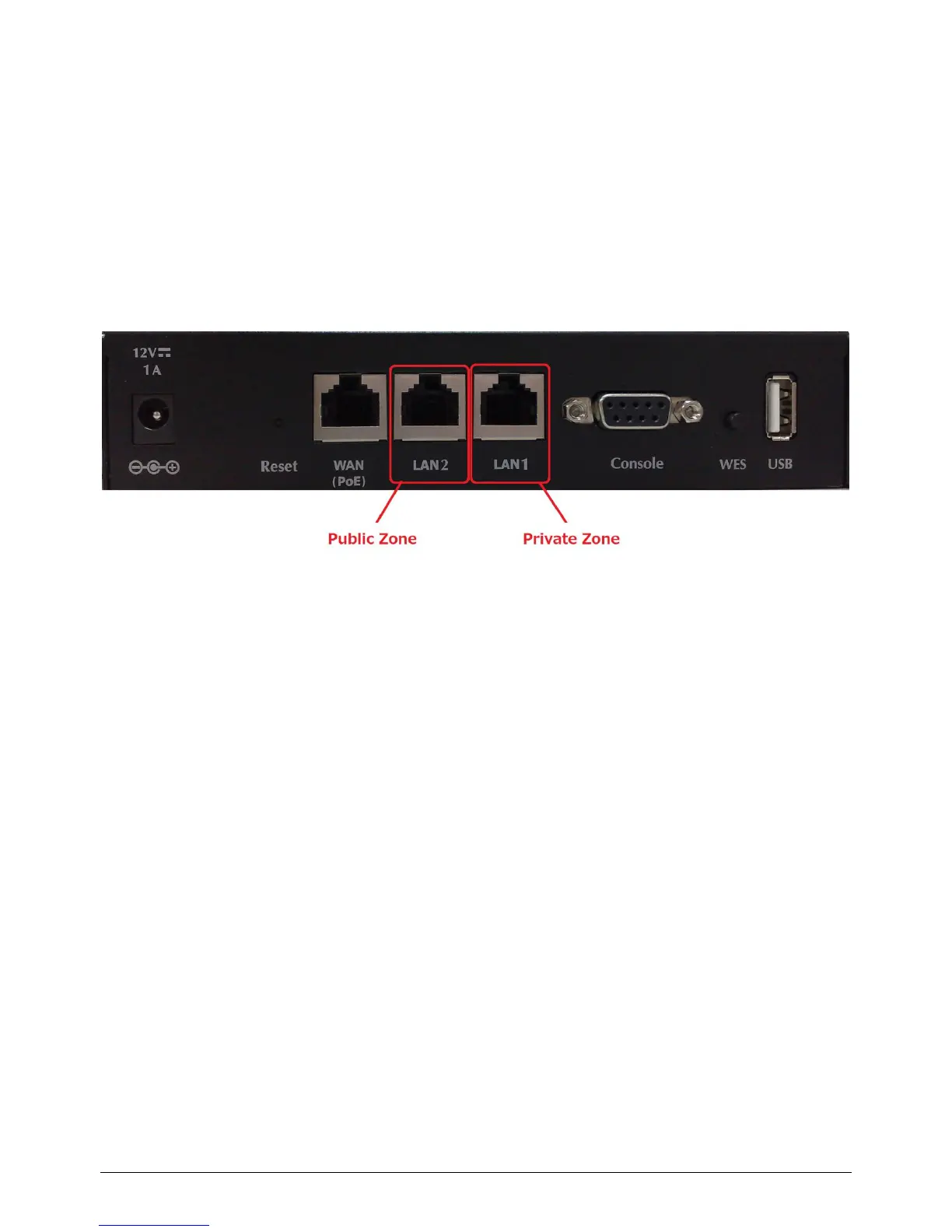

The Zone and Port mappings are shown below, LAN1 and LAN2 maps to Private Zone and Public
Zone respectively.
Note:
System‟s WMI can also be accesses via WAN port as long as the administrator uses an IP address
listed in Management IP Address List setting. If both WAN and LAN ports are unable to reach
WMI, please use console interface to solve this issue.
