4-4 Lexmark™ E260, E260d, E260dn
4513-200, -220, -230

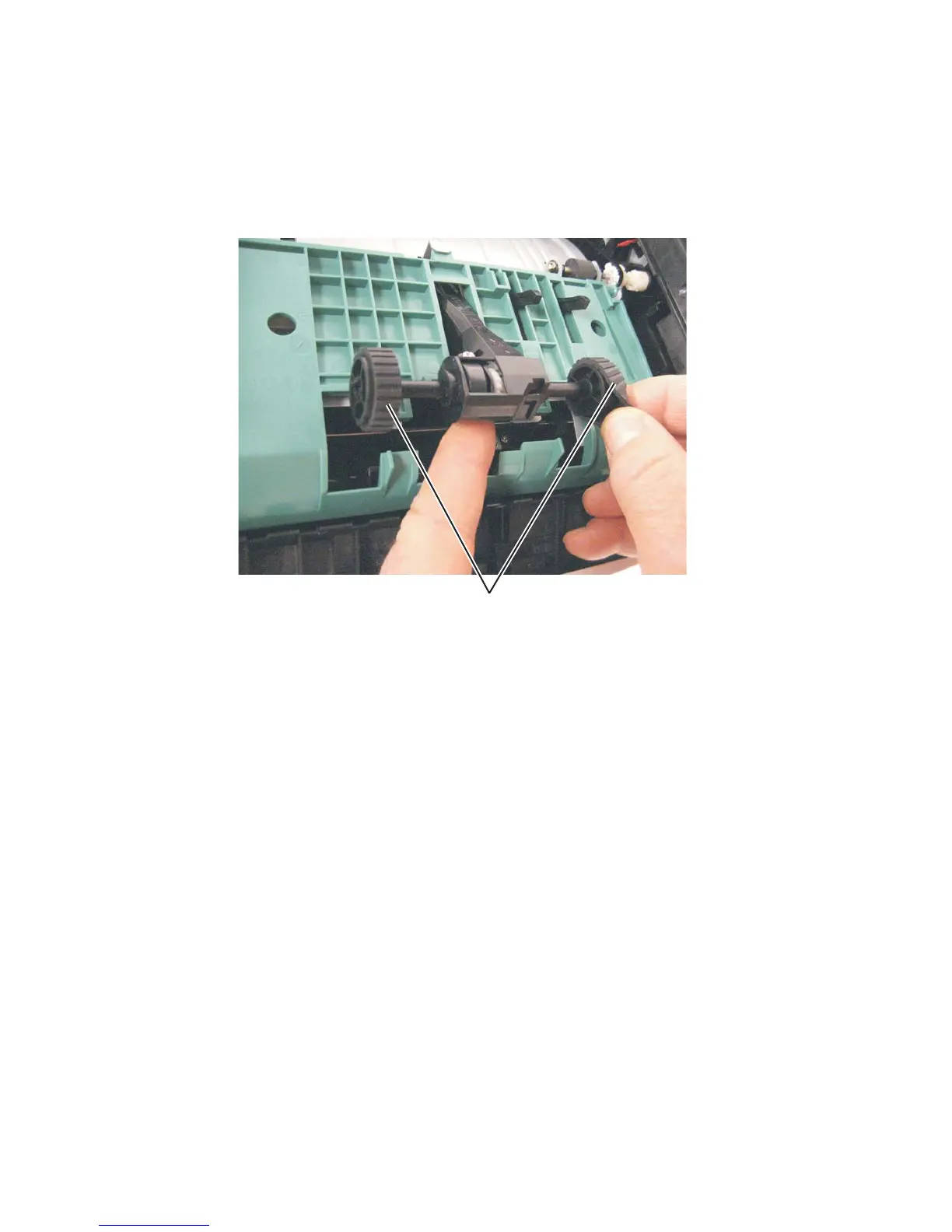

4. Remove the ACM pick tire roller (A).
Note:
• If the left hub is gray, then disconnect the old right and left tire/hub assemblies from the ACM, and replace
with the new right and left tire/hub assemblies.
• If the left hub is black, then remove the old right and left tires from the ACM hubs, and replace with the new
tires. Do not attempt to remove the hubs.
A
