Repair information 4-9
4513-200, -220, -230
Door mount removal
1. Open the front cover.
2. Remove the lower front cover. See “Lower front cover removal” on page 4-26.
3. Remove the left side cover. See “Left side cover removal” on page 4-24
4. Remove the right side cover. See “Right side cover assembly removal” on page 4-53.

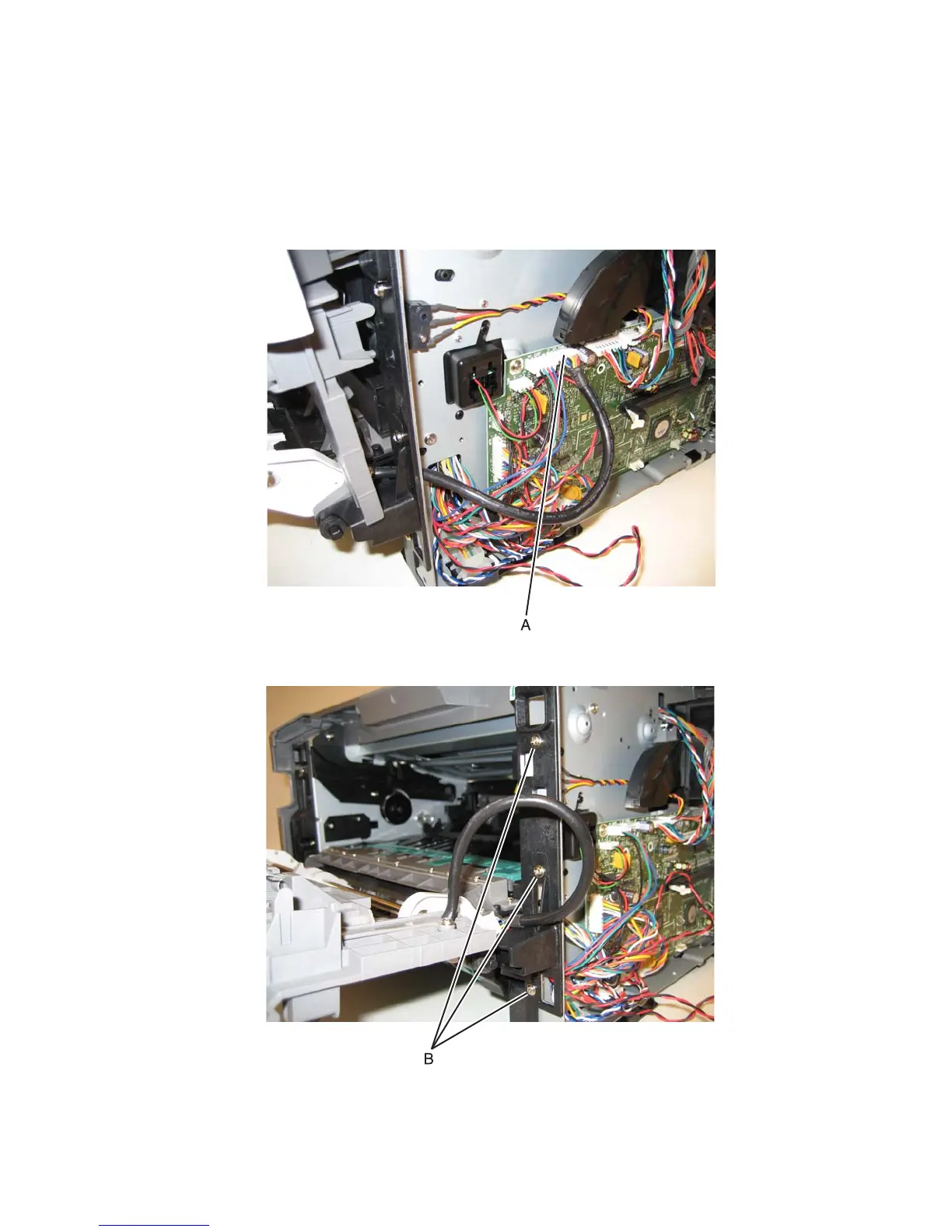

5. Disconnect the operator panel cable (A).
6. Remove the cable through the opening.
7. Remove the three screws (B) from the right side of the printer.
