Repair information 4-13
4513-200, -220, -230
Duplex/main motor gear drive interface removal
Note: The duplex/main motor gear drive interface will not need to be replaced on the 4513-200 printer.
1. Remove the left side cover. See “Left side cover removal” on page 4-24.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-27.
3. Remove the duplex. See “Duplex removal” on page 4-11.
4. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-30

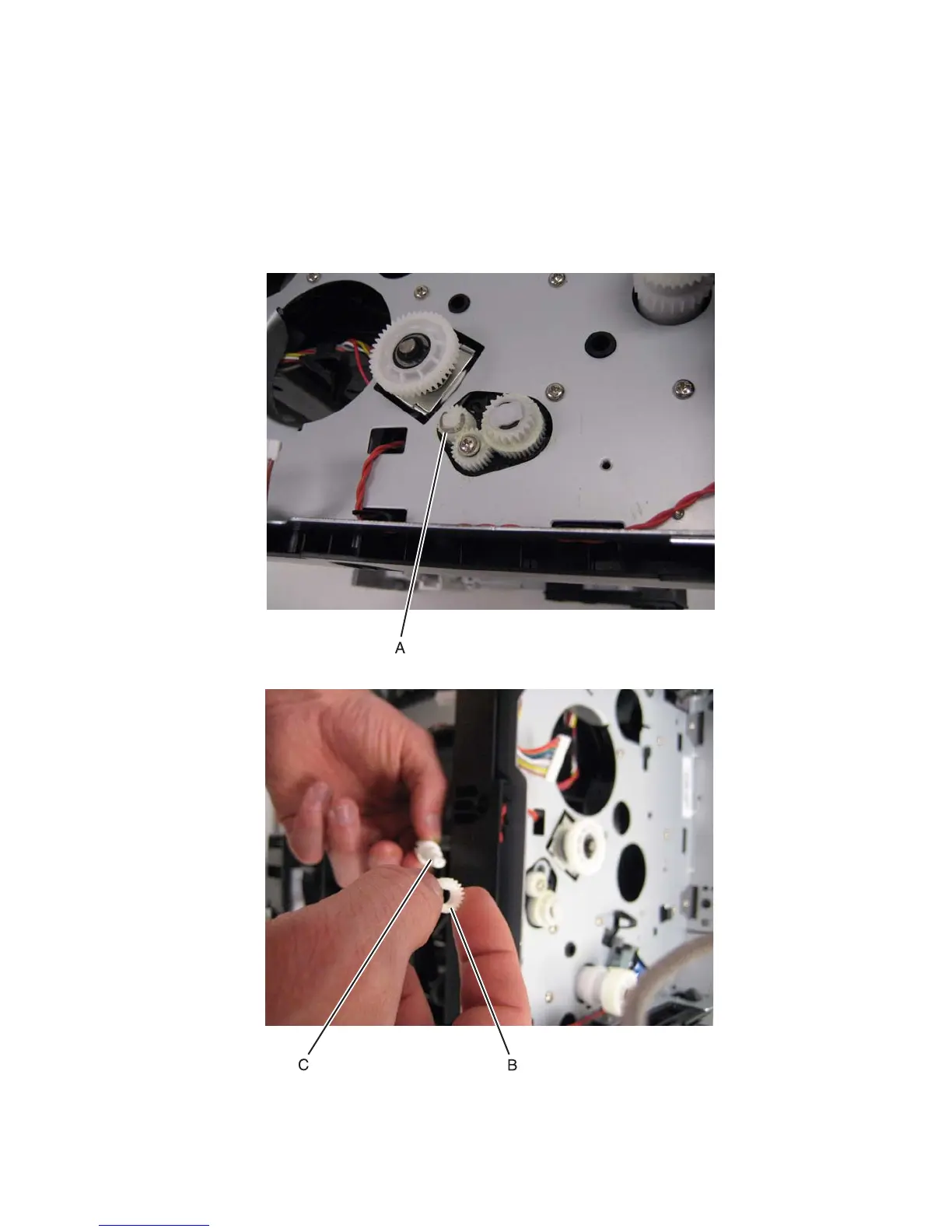

5. Remove the e-clip (A) from the gear.
6. Remove the gear (B) and gear shaft (C).
