4-42 Lexmark™ E260, E260d, E260dn
4513-200, -220, -230
Media manual input sensor removal
1. Remove the right side cover. See “Right side cover assembly removal” on page 4-53.
2. Place the machine on its top.
Note: Be careful to not mar the finish of the printer.

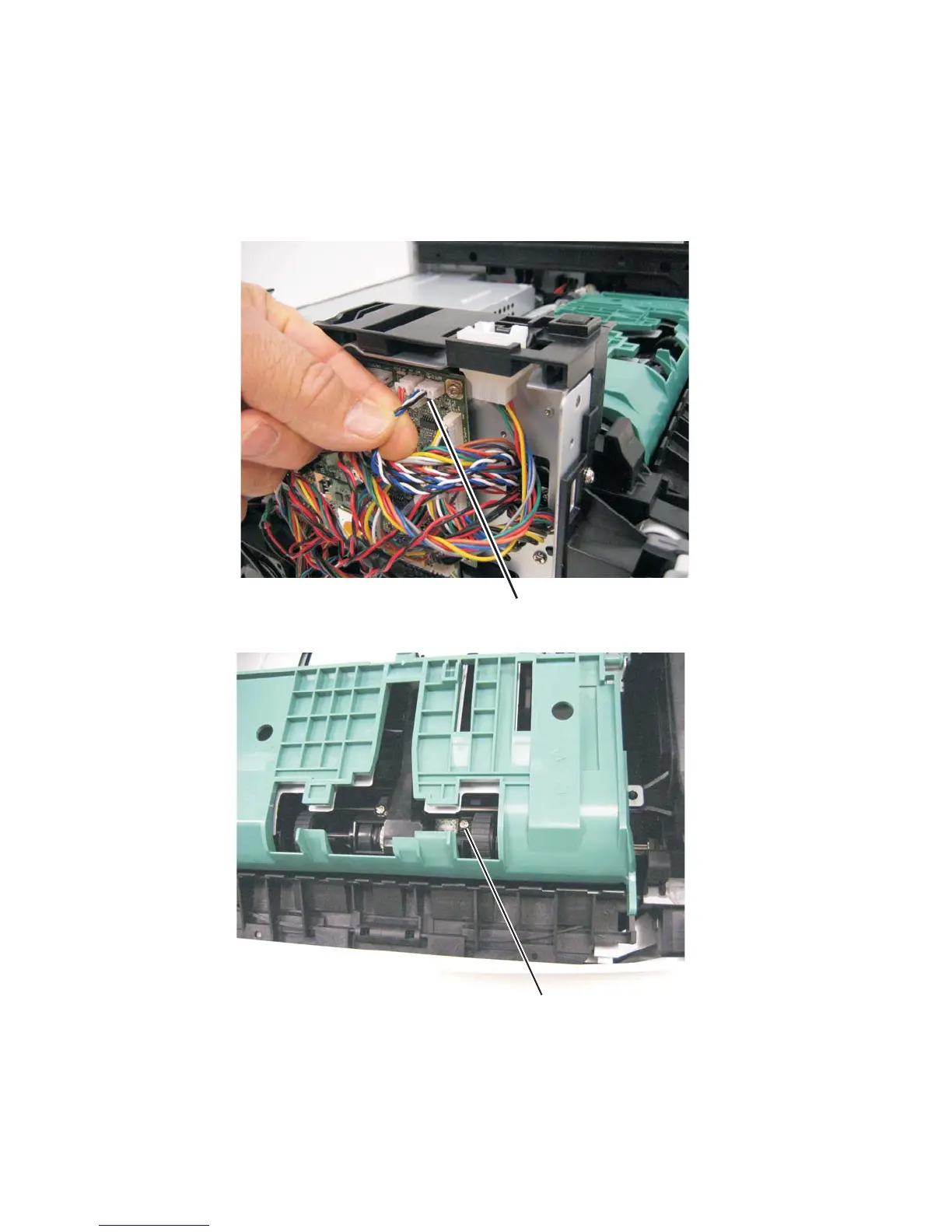

3. Disconnect the sensor cable (A) from J23 (MPFS) on the controller board.
4. Remove the screw (B).
5. Free the cable from its retainers, and pull it through the opening toward the sensor mount.
