Repair information 4-55
4513-200, -220, -230
Top cover assembly removal
1. Open the front access door.
2. Remove the left side cover. See “Left side cover removal” on page 4-24.
3. Remove the right side cover. See “Right side cover assembly removal” on page 4-53.
4. Remove the rear door and rear cover. See “Rear door and rear cover removal” on page 4-49.

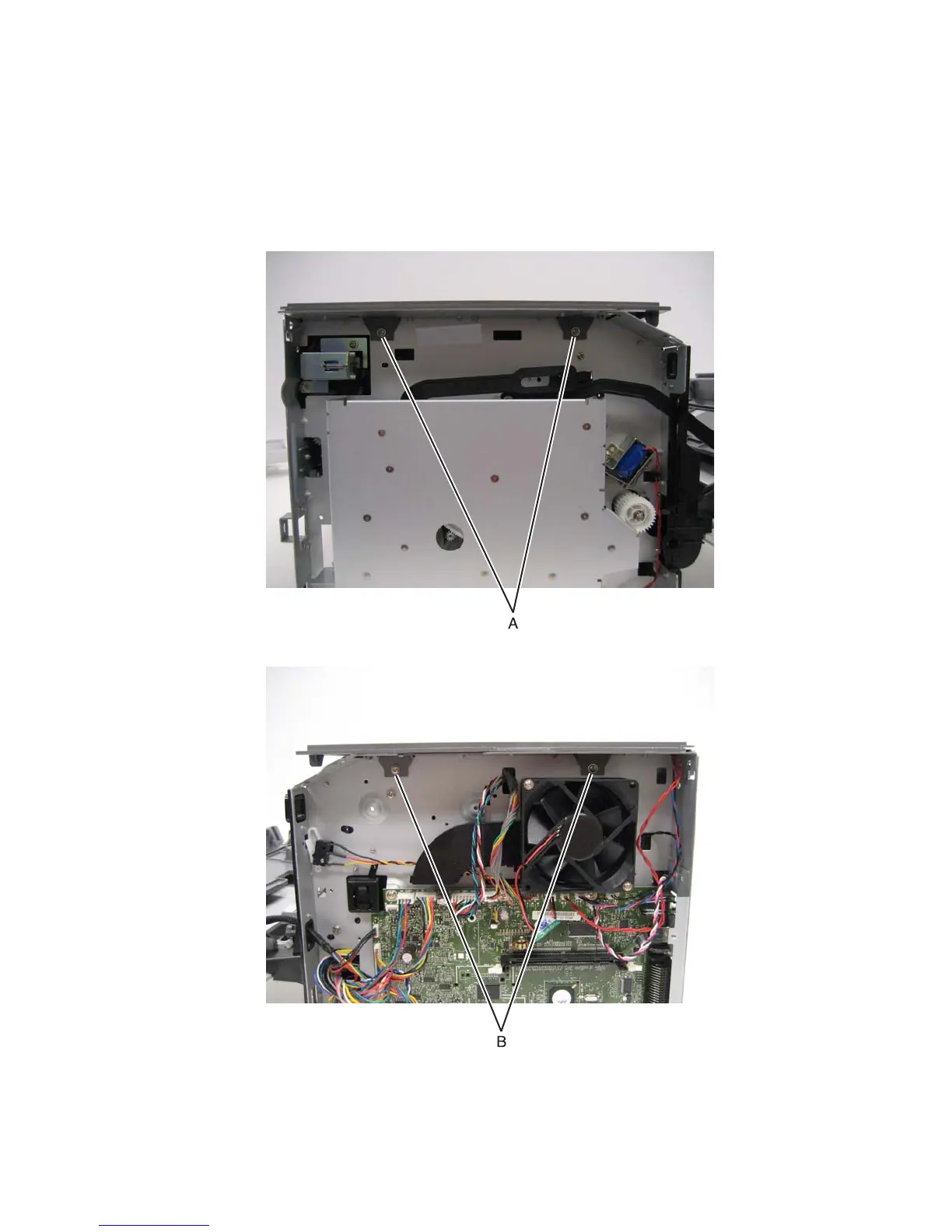

5. Remove the two screws (A) from the left side of the printer.
6. Remove the two screws (B) from the right side of the printer.
